Phase-contrast MR imaging of the cervical CSF and spinal cord: volumetric motion analysis in patients with Chiari I malformation

Abstract

Background and purpose: Most previous MR studies of the dynamics of Chiari I malformation have been confined to sagittal images and operator-dependent measurement points in the midline. To obtain a deeper insight into the pathophysiology of the Chiari I malformation, we performed a prospective study using axial slices at the level of C2 to analyze volumetric motion data of the spinal cord and CSF over the whole cross-sectional area.

Methods: Eighteen patients with Chiari I malformation and 18 healthy control subjects underwent cardiac-gated phase-contrast imaging. Cross-sectional area measurements and volumetric flow/motion data calculations were made for the following compartments: the entire intradural space, the spinal cord, and the anterior and posterior subarachnoid space.

Results: The most striking feature was an increased early systolic caudal and diastolic cranial motion of the spinal cord in the patients. CSF pulsations in the anterior subarachnoid space were unchanged at systole but showed an impaired diastolic upward flow. In the posterior compartment, the CSF systole was slightly shortened, with an impairment of diastolic upward flow. Fourteen of the 18 patients had associated syringeal cavities. This subgroup showed an increased systolic downward displacement of the cord as compared with patients without a syrinx.

Conclusion: Obstruction of the foramen magnum in patients with Chiari I malformation causes an abrupt systolic downward displacement of the spinal cord and impairs the recoil of CSF during diastole.

fig. 1. Sagittal reference image with axial section perpendicular to the spinal canal at the level of C2.fig. 2. Phase-contrast images (partitions 1 through 16) corresponding to figure 1

fig. 3. Volumetric motion (mean values) of the upper cervical intradural space as a whole. There are no significant differences between patients and control subjects

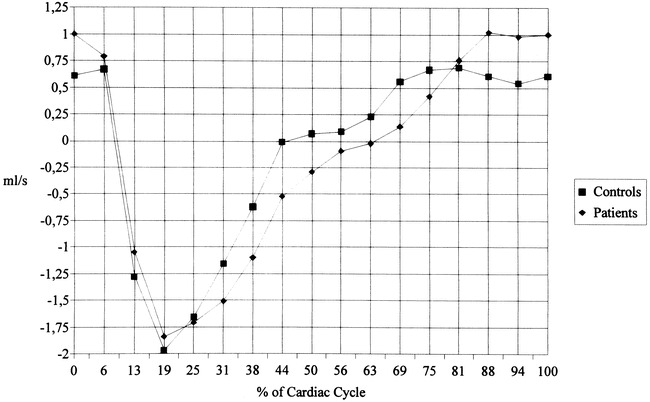

fig. 4. Flow rates (mean values) of anterior cervical CSF motion. Significant differences are seen between patients and control subjects at 0%, 44%, and 69% of the cardiac cycle

fig. 5. Flow rates (mean values) of posterior cervical CSF motion. There are significant differences between patients and control subjects at 75% of the cardiac cycle

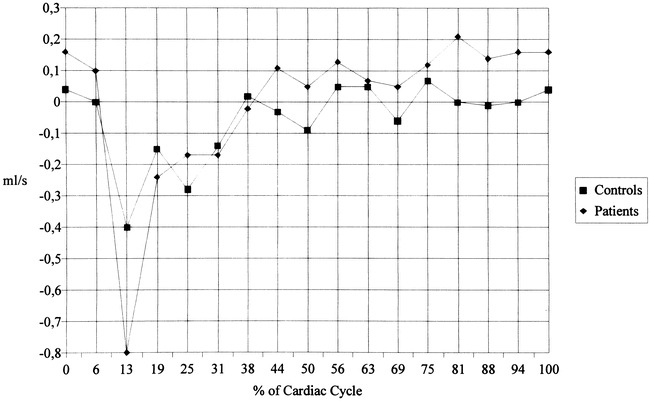

fig. 6. Volumetric motion (mean values) of the upper cervical cord. Significant differences are seen between patients and control subjects at 69% and 81% of the cardiac cycle
