. 2003 Jul 1;31(13):3608-12.
doi: 10.1093/nar/gkg548.

PatSearch: A program for the detection of patterns and structural motifs in nucleotide sequences

Giorgio Grillo  1 , Flavio Licciulli, Sabino Liuni, Elisabetta Sbisà, Graziano Pesole
Affiliations

PatSearch: A program for the detection of patterns and structural motifs in nucleotide sequences

Giorgio Grillo et al. Nucleic Acids Res. .

Abstract

Regulation of gene expression at transcriptional and post-transcriptional level involves the interaction between short DNA or RNA tracts and the corresponding trans-acting protein factors. Detection of such cis-acting elements in genome-wide screenings may significantly contribute to genome annotation and comparative analysis as well as to target functional characterization experiments. We present here PatSearch, a flexible and fast pattern matcher able to search for specific combinations of oligonucleotide consensus sequences, secondary structure elements and position-weight matrices. It can also allow for mismatches/mispairings below a user fixed threshold. We report three different applications of the program in the search of complex patterns such as those of the iron responsive element hairpin-loop structure, the p53 responsive element and a promoter module containing CAAT-, TATA- and cap-boxes. PatSearch is available on the web at http://bighost.area.ba.cnr.it/BIG/PatSearch/.

PubMed Disclaimer

Figures

Figure 1
Figure 1

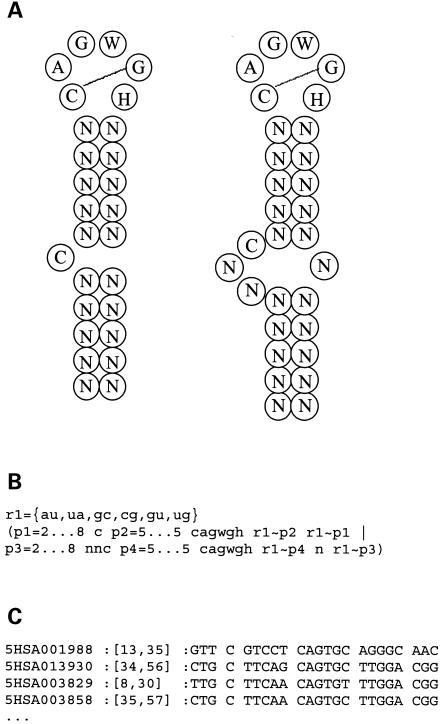

The consensus structures of the iron responsive elements (IRE) (A); the relevant PatSearch pattern syntax (B); part of PatSearch output obtained on a set of 5′ UTRs collected in UTRdb (C).
Figure 2
Figure 2

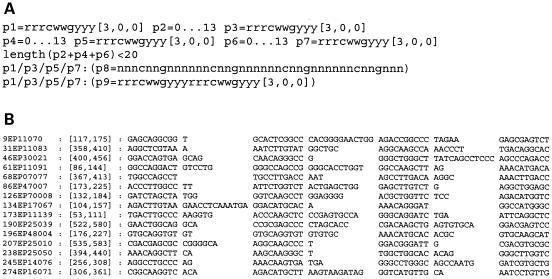

PatSearch syntax for the p53 responsive element including two post-processing steps and a constraint on the total length of decamer spacers (A); partial output obtained searching the pattern in the EPD database (13) (B).
Figure 3
Figure 3
(A) PatSearch syntax for a promoter module made of a CAAT-box, a TATA-box and a cap-box (TRANSFAC IDs V$CAAT_01, V$TATA_01, V$CAP_01). The * denotes core promoter positions to which an higher similarity cutoff is assigned; (B) partial output obtained searching the pattern in human EPD sequences (13).
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Matys V., Fricke,E., Geffers,R., Gossling,E., Haubrock,M., Hehl,R., Hornischer,K., Karas,D., Kel,A.E., Kel-Margoulis,O.V. et al. (2003) TRANSFAC: transcriptional regulation, from patterns to profiles. Nucleic Acids Res., 31, 374–378. - PMC - PubMed
    1. Pesole G., Liuni,S., Grillo,G., Licciulli,F., Mignone,F., Gissi,C. and Saccone,C. (2002) UTRdb and UTRsite: specialized databases of sequences and functional elements of 5′ and 3′ untranslated regions of eukaryotic mRNAs. Update 2002. Nucleic Acids Res., 30, 335–340. - PMC - PubMed
    1. Fickett J.W. and Wasserman,W.W. (2000) Discovery and modeling of transcriptional regulatory regions. Curr. Opin. Biotechnol., 11, 19–24. - PubMed
    1. Hentze M.W. and Kuhn,L.C. (1996) Molecular control of vertebrate iron metabolism: mRNA-based regulatory circuits operated by iron, nitric oxide, and oxidative stress. Proc. Natl Acad. Sci. USA, 93, 8175–8182. - PMC - PubMed
    1. Williams A.S. and Marzluff,W.F. (1995) The sequence of the stem and flanking sequences at the 3′ end of histone mRNA are critical determinants for the binding of the stem-loop binding protein. Nucleic Acids Res., 23, 654–662. - PMC - PubMed
