A 3-Dimensional Analysis of Face-Mask Removal Tools in Inducing Helmet Movement

Erik E Swartz  1 , Charles W Armstrong, James M Rankin, Burton Rogers
Affiliations

A 3-Dimensional Analysis of Face-Mask Removal Tools in Inducing Helmet Movement

Erik E Swartz et al. J Athl Train. 2002 Jun.

Abstract

OBJECTIVE: To evaluate the performance of specific face-mask removal tools during football helmet face-mask retraction using 3-dimensional (3-D) video. DESIGN AND SETTING: Four different tools were used: the anvil pruner (AP), polyvinyl chloride pipe cutters (PVC), Face Mask (FM) Extractor (FME), and Trainer's Angel (TA). Subjects retracted a face mask once with each tool. SUBJECTS: Eleven certified athletic trainers served as subjects and were recruited from among local sports medicine professionals. MEASUREMENTS: We analyzed a sample of movement by 3-D techniques during the retraction process. Movement of the head in 3 planes and time to retract the face mask were also assessed. All results were analyzed with a simple repeated-measures one-way multivariate analysis of variance. An overall efficiency score was calculated for each tool. RESULTS: The AP allowed subjects to perform the face-mask removal task the fastest. Face mask removal with the AP was significantly faster than with the PVC and TA and significantly faster with the TA than the PVC. The PVC and AP created significantly more movement than the FME and TA when planes were combined. No significant differences were noted among tools for flexion-extension, rotation, or lateral flexion. The AP had an efficiency score of 14; FME, 15; TA, 18; and PVC, 35. CONCLUSIONS: The subjects performed the face-mask removal task in the least amount of time with the AP. They completed the task with the least amount of combined movement using the FME. The AP and FME had nearly identical overall efficiency scores for movement and time.

PubMed Disclaimer

Figures

Figure 1
Figure 1

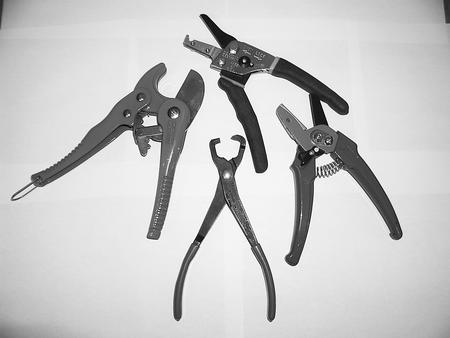

Tools. Left, PVC pipe cutter. Bottom, Trainer's Angel. Right, Anvil pruners. Top, FM Extractor.
Figure 2
Figure 2

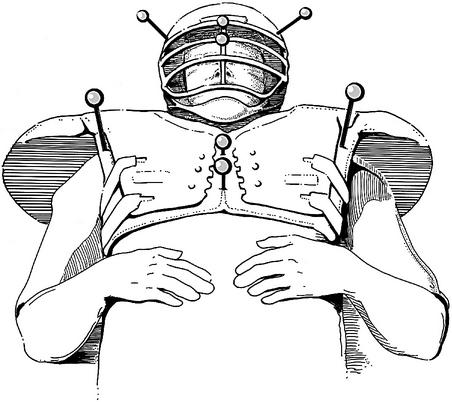

Anterior view of football player with markers applied.
Figure 3
Figure 3

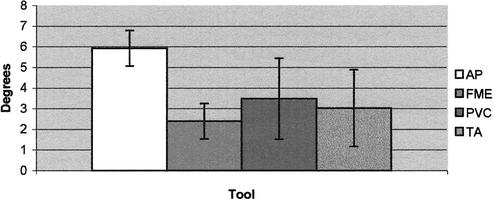

Flexion and extension movement of the helmet. AP indicates anvil pruner; FME, FM Extractor; PVC, PVC pipe cutters; TA, Trainer's Angel.
Figure 4
Figure 4

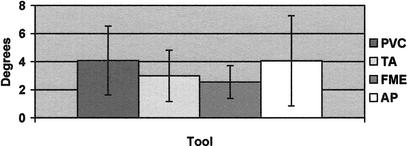

Rotation movement of the head to the left and right.
Figure 5
Figure 5

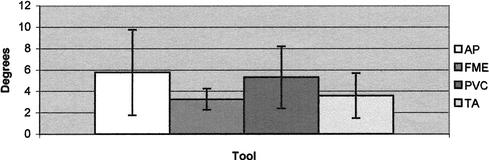

Lateral-flexion movement of the head to the left and right.
Figure 6
Figure 6
Combined head movement from within 3 planes.
Figure 7
Figure 7

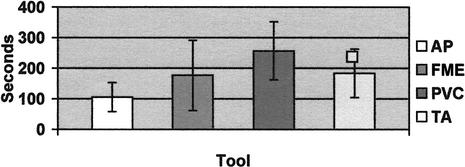

Average time to complete the face-mask retraction. AP indicates anvil pruner; FME, FM extractor; PVC, PVC pipe cutters; TA, Trainer's Angel.
