. 2005 Jun 1;30(11):1342-4.
doi: 10.1364/ol.30.001342.

Spectrally narrowed external-cavity high-power stack of laser diode arrays

H Zhu  1 , I C Ruset, F W Hersman
Affiliations

Spectrally narrowed external-cavity high-power stack of laser diode arrays

H Zhu et al. Opt Lett. .

Abstract

We describe an effective external cavity for narrowing the spectral linewidth of a multiarray stack of laser diode arrays. For a commercially available 279-W free-running five-array laser diode array operating at 60 A, we narrow the spectral linewidth to 0.40 nm at FWHM with 115 W of cw power output. This technique leads to the possibility of higher-efficiency, lower-cost production of hyperpolarized noble gases for magnetic resonance imaging.

PubMed Disclaimer

Figures

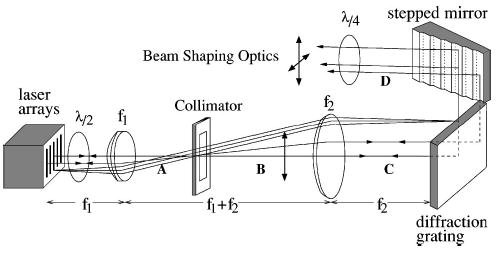

Fig. 1
Fig. 1
Schematic of the LDA stack external-cavity arrangement with selected rays.

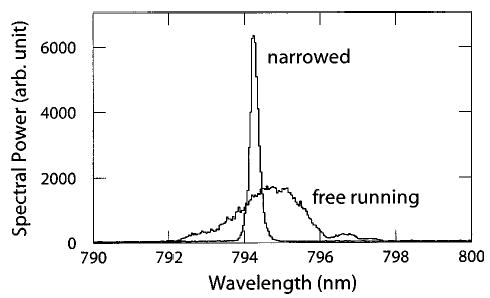

Fig. 2
Fig. 2
Comparison between free-running and spectrally narrowed LDA stack external-cavity laser linewidths.
Fig. 3
Fig. 3
Spectral linewidth for each LDA and all five LDAs combined.
Fig. 4
Fig. 4
Photograph showing smiles of PA-332 LDA stack arrays 1–5, left to right, on a 0.5-cm grid graph paper.
Fig. 5
Fig. 5
External-cavity tuning range and the spectral power of the narrowed laser beam.
See this image and copyright information in PMC

References

    1. F. W. Hersman, presented at the 2004 International Workshop on Pulmonary Functional Imaging at Penn, Philadelphia, Pa., November 12–14, 2004.
    1. Walker TG, Happer W. Rev Mod Phys. 1997;69:629.
    1. Chann B, Nelson I, Walker TG. Opt Lett. 2000;25:1352. - PubMed
    1. Nuvonyx PA-332 Reference Mannual, Nuvonyx Inc., Bridgeton, Mo., 2003.
    1. D. Botez and D. Scifres, eds., Diode Laser Arrays (Cambridge U. Press, Cambridge, England, 1994).
