. 2005 Sep 28;127(38):13088-9.
doi: 10.1021/ja0531226.

Light activated recombination

Kristian H Link  1 , Youheng Shi, John T Koh
Affiliations

Light activated recombination

Kristian H Link et al. J Am Chem Soc. .

Abstract

Many genes elicit their actions through their expression in precise spatial patterns in tissues. Photoregulated expression systems offer a means to remotely pattern gene expression in tissues. Using currently available photopatterning methods, gene expression is only transient. Herein is described a general method to permanently alter a cell's genome under the control of light. The photocaged estrogen receptor (ER) antagonists, nitroveratryl-hydroxytamoxifen (Nv-HTam) and nitroveratryl-hydroxytamoxifen aziridine (Nv-HTaz), mediate exposure-dependent recombination in cells expressing the Cre-ER, a fusion of the site-specific recombinase Cre and ER. Both Nv-HTam and Nv-HTaz only activate recombination by Cre-ER after exposure to light. When released only intracellularly, the covalent-modifying Taz can mediate significant amounts of recombination in an exposure-dependent manner. Nv-HTaz and Cre-ER represent perhaps the first compound that can be used to photopattern gene expression through recombination.

PubMed Disclaimer

Figures

FIGURE 1
FIGURE 1

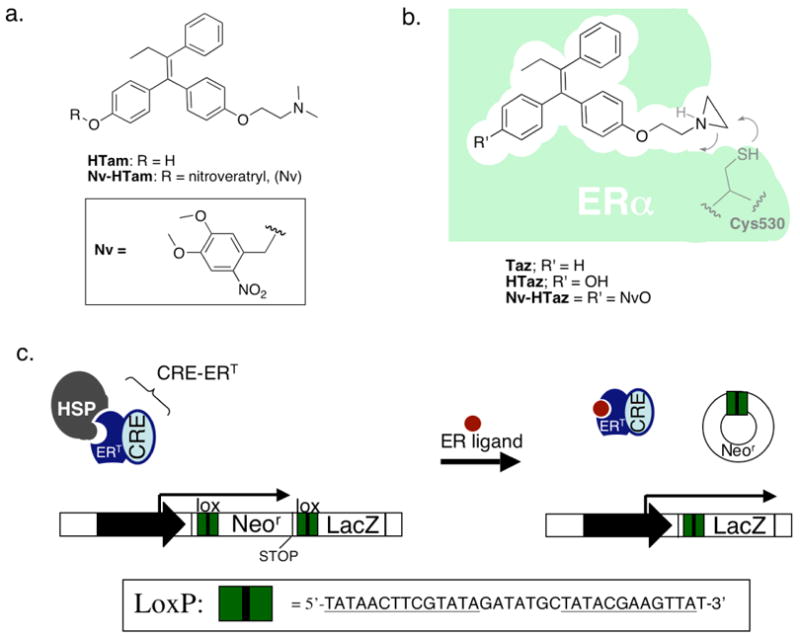

(A). Photocaged hydroxytamoxifen (HTam). (B). Taz forms a covalent adduct with Cys 530 of ER; Nv-HTaz is a photocaged Taz analog. (C). Cre-ERT can be used to permanently turn on reporter gene (LacZ) expression (and turn off Neor) through recombination. (HSP; heat shock protein, Neor; neomycin resistance).
FIGURE 2
FIGURE 2
Nv-HTam can regulate recombination dependent β-gal expression (x-gal stain) in HEK293 cells expressing pLacZ(LNL) and pCre-ERT/Zeo. (A) No ligand, unexposed. (B) No ligand, exposed (180s×3W). (c) Nv-HTam, unexposed. (D) Nv-HTam, exposed. Intracellular and extacellular ligand (200 nM) with 200 nM trans-retinoic acid (tRA).
FIGURE 3
FIGURE 3
Comparison of Nv-HTam and Nv-HTaz mediated recombination after 72 h (x-gal staining). (A) Nv-HTaz, unexposed. (B) Intra- and extra-cellular uncaged Nv-HTaz, exposed (180s) (C) Intracellularly uncaged Nv-HTam, exposed (180s). (D) Intracellularly uncaged Nv-HTaz, exposed (180s). (E) Intracellularly uncaged Nv-HTam, exposed 3-times (45s). (F) Intracellularly uncaged Nv-HTaz, exposed 3 times (45s). 1000 nM ligand plus of 200 nM tRA.
FIGURE 4
FIGURE 4

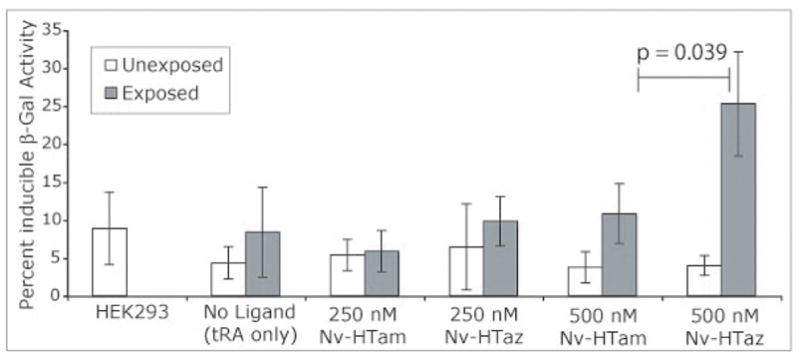

β-gal expression measured by OPNG assay for cells treated with Nv-HTaz or Nv-HTam with 200 nM tRA and exposed three times at 24 h intervals (45 s×3W).(p; unpaired t-test)
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Haselton FR, Tseng WC, Chang MS. Invest Ophthalmol Vis Sci. 1997;38:2082–2082.
    1. Ando H, Furuta T, Tsien RY, Okamoto H. Nature Genet. 2001;28:317–325. - PubMed
    1. Cambridge SB, Davis RL, Minden JS. Science. 1997;277:825–828. - PubMed
    1. Cruz FG, Koh JT, Link KH. J Am Chem Soc. 2000;122:8777–8778.
    1. Lin WY, Albanese C, Pestell RG, Lawrence DS. Chem Biol. 2002;9:1347–1353. - PubMed
