Crystallization and preliminary X-ray crystallographic analysis of Sulfolobus solfataricus thioredoxin reductase

Abstract

A thermostable thioredoxin reductase isolated from Sulfolobus solfataricus (SsTrxR) has been successfully crystallized in the absence and in the presence of NADP. Two different crystal forms have been obtained. Crystals of the form that yields higher resolution data (1.8 A) belong to space group P2(1)2(1)2(1), with unit-cell parameters a = 76.77, b = 120.68, c = 126.85 A. The structure of the enzyme has been solved by MAD methods using the anomalous signal from the Se atoms of selenomethionine-labelled SsTrxR.

Figure 1

Images of typical SsTrxR crystals: (a) crystal form I, (b) crystal form II.

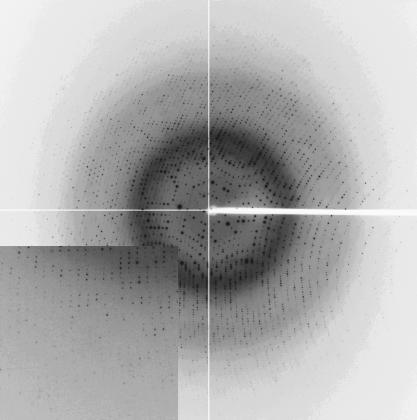

Figure 2

Diffraction pattern of a typical SsTrxR crystal (form I). Diffraction data are detectable to 1.8 Å resolution.
