. 2007;46(44):8380-3.
doi: 10.1002/anie.200702905.

Solid-state protein-structure determination with proton-detected triple-resonance 3D magic-angle-spinning NMR spectroscopy

Donghua H Zhou  1 , John J Shea, Andrew J Nieuwkoop, W Trent Franks, Benjamin J Wylie, Charles Mullen, Dennis Sandoz, Chad M Rienstra
Affiliations

Solid-state protein-structure determination with proton-detected triple-resonance 3D magic-angle-spinning NMR spectroscopy

Donghua H Zhou et al. Angew Chem Int Ed Engl. 2007.
No abstract available

PubMed Disclaimer

Figures

Figure 1
Figure 1

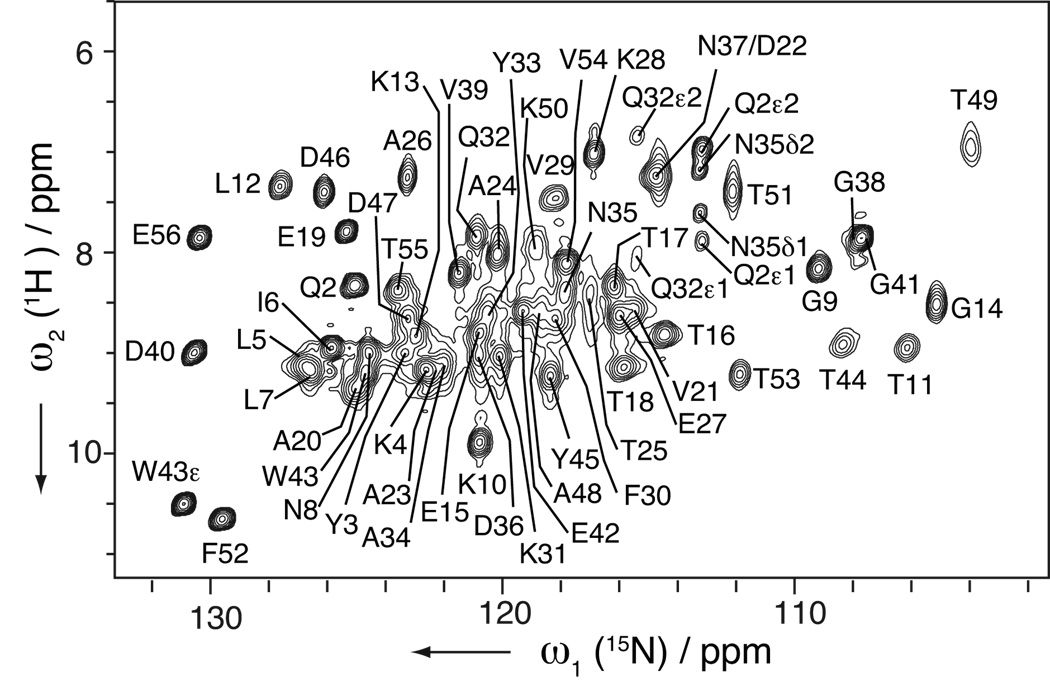

Solid-state 1H-detected 15N-1H 2D spectrum of uniformly-13C,15N,2H-labeled GB1, back-exchanged with H2O (750 MHz, 39 kHz MAS, 2 s recycle delay, 2 scans per row, t1max(15N) = 50 ms, t2max(1H) = 30 ms, total 30 min). No apodization or post-acquisition solvent suppression was applied. Assignments were derived from 3D experiments.
Figure 2
Figure 2
2D planes of (a) CON(H)H 3D (39 kHz MAS, 750 MHz, 2 s recycle delay, 2 scans per row, t1max(13C) = 18.8 ms, t2max(15N) = 30 ms, t3max(1H) = 30 ms, total 36 h) and (b) HN(H)H 3D (2 scans per row, t1max(1H) = 12 ms, t2max(15N) = 30 ms, t3max(1H) = 30 ms, total 36 h), with ω2 frequency indicated at the top. For both 2 ms RFDR[10] was used. Line broadening of 10, 10, 40 Hz was applied to 15N, 13C, and 1H dimensions, respectively. The backbone walk is traced by arrows.
Figure 3
Figure 3
N(H)H 2D spectrum of GB1 with 3 ms RFDR[10] (39 kHz MAS, 750 MHz, 2 s recycle delay, 8 scans per row, t1max(15N) = 50 ms, t2max(1H) = 30 ms, total 2 h). The 15N dimension was apodized by sine bell (shift=45°), and 1H by squared sine bell (shift=72°), −40 Hz Lorentzian, +80 Hz Gaussian functions. The inter-residue peaks are labeled with a suffix to indicate either 15N or 1H resonance frequency.
Figure 4
Figure 4
Ensemble of GB1 backbone structures calculated from SSNMR proton-proton distances and dihedral constraints, shown with two views for the ten lowest energy structures from 252 calculations. The backbone RMSD is 0.82±0.14 Å.
See this image and copyright information in PMC

References

    1. Castellani F, van Rossum B, Diehl A, Schubert M, Rehbein K, Oschkinat H. Nature. 2002;420:98–102. - PubMed
    2. Lange A, Becker S, Seidel K, Giller K, Pongs O, Baldus M. Angew. Chem. 2005;117:2125–2129. - PubMed
    3. Angew. Chem. Int. Ed. 2005;44:2089–2092. - PubMed
    1. Bodenhausen G, Ruben DJ. Chem. Phys. Lett. 1980;69:185–189.
    2. Jeener J, Meier BH, Bachman P, Ernst RR. J. Chem. Phys. 1979;71:4546–4553.
    1. Reif B, Griffin RG. J. Magn. Reson. 2003;160:78–83. - PubMed
    2. Chevelkov V, van Rossum BJ, Castellani F, Rehbein K, Diehl A, Hohwy M, Steuernagel S, Engelke F, Oschkinat H, Reif B. J. Am. Chem. Soc. 2003;125:7788–7789. - PubMed
    3. Paulson EK, Morcombe CR, Gaponenko V, Dancheck B, Byrd RA, Zilm KW. J. Am. Chem. Soc. 2003;125:15831–15836. - PubMed
    1. Reif B, Jaroniec CP, Rienstra CM, Hohwy M, Griffin RG. J. Magn. Reson. 2001;151:320–327. - PubMed
    2. Reif B, van Rossum BJ, Castellani F, Rehbein K, Diehl A, Oschkinat H. J. Am. Chem. Soc. 2003;125:1488–1489. - PubMed
    3. Paulson EK, Morcombe CR, Gaponenko V, Dancheck B, Byrd RA, Zilm KW. J. Am. Chem. Soc. 2003;125:14222–14223. - PubMed
    1. Chevelkov V, Rehbein K, Diehl A, Reif B. Angew. Chem. 2006;118:3963–3966. - PubMed
    2. Angew. Chem. Int. Ed. 2006;45:3878–3881. - PubMed
