. 2008 Jan;32(1):36-43.
doi: 10.1016/j.compmedimag.2007.08.013. Epub 2007 Oct 26.

Segmentation of arteries in MPRAGE images of the ventral medial prefrontal cortex

N Penumetcha  1 , B Jedynak, M Hosakere, E Ceyhan, K N Botteron, J T Ratnanather
Affiliations

Segmentation of arteries in MPRAGE images of the ventral medial prefrontal cortex

N Penumetcha et al. Comput Med Imaging Graph. 2008 Jan.

Abstract

A method for removing arteries that appear bright with intensities similar to white matter in Magnetized Prepared Rapid Gradient Echo images of the ventral medial prefrontal cortex is described. The Fast Marching method is used to generate a curve within the artery. Then, the largest connected component is selected to segment the artery which is used to mask the image. The surface reconstructed from the masked image yielded cortical thickness maps similar to those generated by manually pruning the arteries from surfaces reconstructed from the original image. The method may be useful in masking vasculature in other cortical regions.

PubMed Disclaimer

Figures

Figure 1
Figure 1

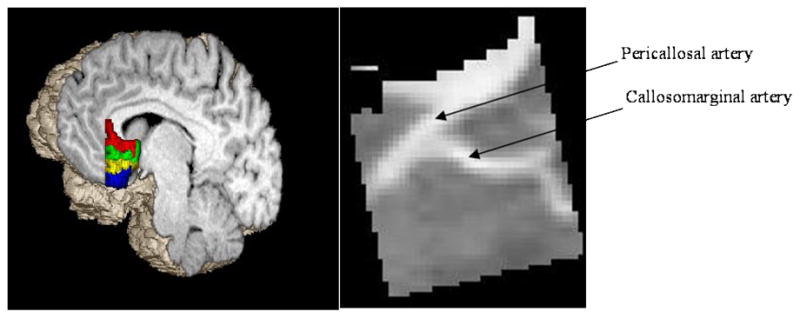

Left: Location of the ventral medial prefrontal cortex with colored gyri. Right: Sagittal MR slice of the VMPFC with callosomarginal and pericallosal arteries.
Figure 2
Figure 2

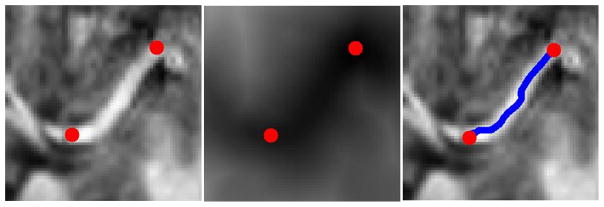

The steps of tracing a curve: a 2D slice with a vessel (left), the distance map calculated from the slice with lower values represented by darker intensities (center), and the path traced within the blood vessel (right); end points are marked in red. Lines thickened for emphasis.
Figure 3
Figure 3

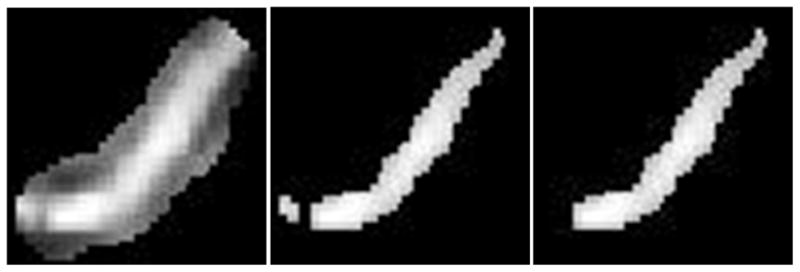

The steps of segmenting a vessel in a 2D slice: a tube is generated around the vessel (left), the tube is thresholded (center), and finally the largest connected component is selected (right).
Figure 4
Figure 4
Histogram of the distance of each automatically segmented voxel from the closest manually segmented one.
Figure 5
Figure 5
Top shows a VMPFC gray/white surface reconstructed with the automated method (green) with the blood vessels reconstructed from the original volume (blue). Bottom row shows the axial, coronal and sagittal views of the original and reconstructed surfaces indicating the presence of the blood vessels. The red ball on the surfaces (top row) corresponds to the cross-hair in the images (bottom row).
Figure 6
Figure 6

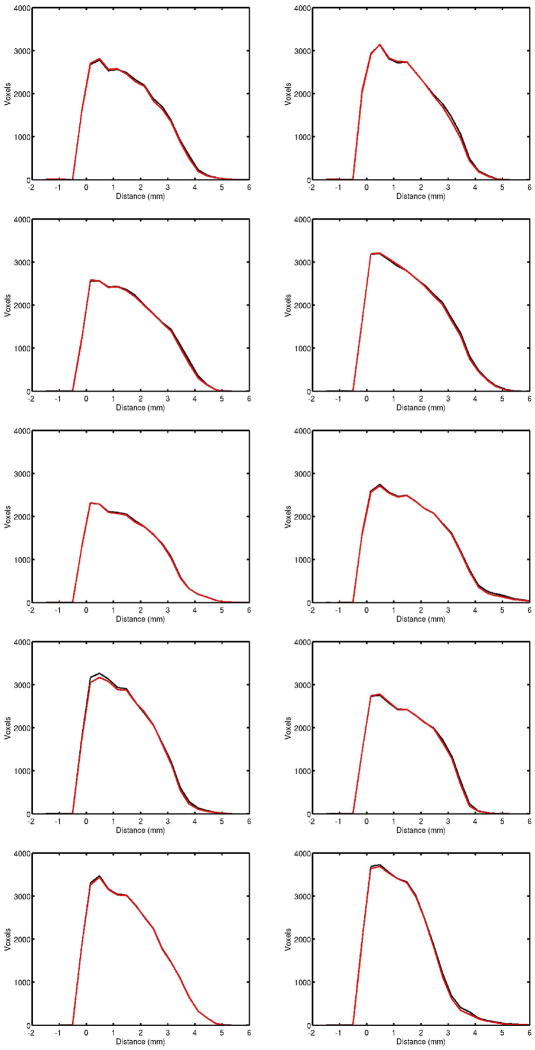

LCDMs comparing manual (black) and automatic removal (red) of blood vessels for subjects 1 to 10 (top-to-bottom, left-to-right).
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Fischl B, Salat DH, van der Kouwe AJW, Makris N, Segonne F, Quinn BT, Dale AM. Sequence-independent segmentation of magnetic resonance images. NeuroImage. 2004;23(Supplement 1):S69–S84. - PubMed
    1. Duvernoy HM. The Human Brain: Surface, Three-Dimensional Sectional Anatomy with MRI and Blood Supply. Wien, Austria: Springer-Verlag; 1991.
    1. Botteron KN, Raichle ME, Drevets WC, Heath AC, Todd RD. Volumetric reduction in the left subgenual prefrontal cortex in early onset depression. Biol Psych. 2002;51:342–344. - PubMed
    1. Drevets WC, Price JL, Simpson JR, Todd RD, Reich T, Vannier M, Raichle ME. Subgenual prefontal cortex abnormalities in mood disorders. Nature. 1997;386:824–827. - PubMed
    1. Hirayasu Y, Shenton ME, Salisbury DF, Kwon JS, Wible CG, Fischer IA, Yurgelun-Todd D, Zarate C, Kikinis R, Jolesz FA, McCarley RW. Subgenual cingulate cortex volume in first-episode psychosis. Am J Psychiatry. 1999;156:1091–1093. - PMC - PubMed
