. 2008 Jan 23;2008(1):CD007005.
doi: 10.1002/14651858.CD007005.

Arthrographic distension for adhesive capsulitis (frozen shoulder)

R Buchbinder  1 , S Green, J M Youd, R V Johnston, M Cumpston
Affiliations

Arthrographic distension for adhesive capsulitis (frozen shoulder)

R Buchbinder et al. Cochrane Database Syst Rev. .

Abstract

Background: Adhesive capsulitis (frozen shoulder or painful stiff shoulder) is characterised by spontaneous onset of shoulder pain accompanied by progressive stiffness and disability. It is usually self-limiting but often has a prolonged course over two to three years.

Objectives: To determine the effectiveness and safety of arthrographic distension of the glenohumeral joint in the treatment of adults with adhesive capsulitis.

Search strategy: We searched the Cochrane Musculoskeletal Review Group Register, CENTRAL, MEDLINE, CINAHL, and EMBASE to November 2006, unrestricted by date or language.

Selection criteria: We included randomised controlled trials and controlled clinical trials comparing arthrographic distension with placebo or other interventions.

Data collection and analysis: Two review authors independently assessed study quality and extracted data.

Main results: Five trials with 196 people were included. One three-arm trial (47 participants) compared arthrographic distension using steroid and air to distension using air alone and to steroid injection alone. One trial (46 participants) compared arthrographic distension using steroid and saline to placebo. Two trials (45 and 22 participants) compared arthrographic distension using steroid to steroid injection alone. One trial (36 participants) compared arthrographic distension using steroid and saline plus physical therapy to physical therapy alone. Trials included similar study participants, but quality and reporting of data were variable. Only one trial was at low risk of bias. No meta-analysis was performed.The trial with low risk of bias demonstrated that distension with saline and steroid was better than placebo for pain (number needed to treat to benefit (NNTB) = 2), function (NNTB = 3) and range of movement at three weeks. This benefit was maintained at six and 12 weeks only for one of two scores measuring function (NNT = 3). A second trial with high risk of bias also reported that distension combined with physical therapy improved range of movement and median percent improvement in pain (but not pain score) at eight weeks compared to physical therapy alone. Three further trials, all at high risk of bias, reported conflicting, variable effects of arthrographic distension with steroid compared to distension alone, and arthrographic distension with steroid compared to intra-articular steroid injection. The trials reported a small number of minor adverse effects, mainly pain during and after the procedure.

Authors' conclusions: There is "silver" level evidence that arthrographic distension with saline and steroid provides short-term benefits in pain, range of movement and function in adhesive capsulitis. It is uncertain whether this is better than alternative interventions.

PubMed Disclaimer

Conflict of interest statement

Two of the review authors (RB, SG) are also authors of one of the trials included in this review (Buchbinder 2004). To avoid any bias, the paper was sent to an independent review author to assess whether it met the inclusion criteria for this review. Risk of bias for all included studies was assessed by two review authors, one of whom (MC) was not an author of any included studies. Three of the authors (RB, SG, JY) are also authors of other Cochrane reviews cited in this review and a randomised placebo‐controlled trial that compared arthrographic joint distension with saline and steroid followed by a program of directed exercise and mobilisation to arthrographic joint distension with saline and steroid alone (Buchbinder 2007). One of the authors (RB) is Joint Co‐ordinating Editor and another (MC) was a member of staff of the Cochrane Musculoskeletal Group at the time this review was completed. To avoid bias, they excluded themselves from the editorial and publication process for this review.

Figures

1.1
1.1. Analysis
Comparison 1 Distension with steroid and saline versus placebo, Outcome 1 Mean change in overall pain.
1.2

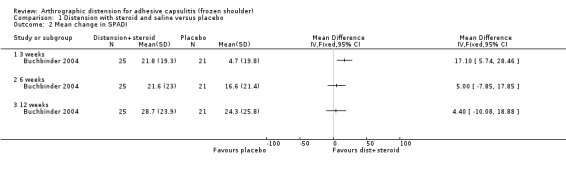

1.2. Analysis
Comparison 1 Distension with steroid and saline versus placebo, Outcome 2 Mean change in SPADI.
1.3

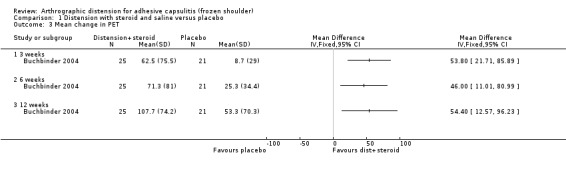

1.3. Analysis
Comparison 1 Distension with steroid and saline versus placebo, Outcome 3 Mean change in PET.
1.4
1.4. Analysis
Comparison 1 Distension with steroid and saline versus placebo, Outcome 4 Mean change in total shoulder flexion (180 degrees).
1.5

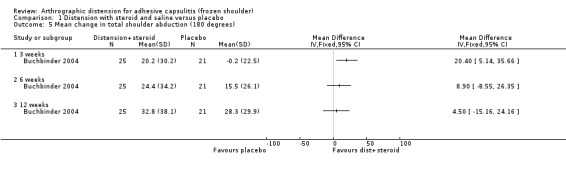

1.5. Analysis
Comparison 1 Distension with steroid and saline versus placebo, Outcome 5 Mean change in total shoulder abduction (180 degrees).
1.6
1.6. Analysis
Comparison 1 Distension with steroid and saline versus placebo, Outcome 6 Mean change in external rotation in neutral (90 degrees).
1.7
1.7. Analysis
Comparison 1 Distension with steroid and saline versus placebo, Outcome 7 Mean change in hand behind back.
1.8

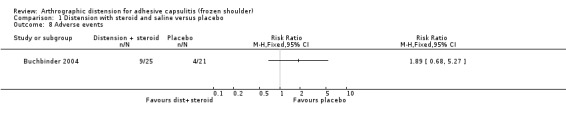

1.8. Analysis
Comparison 1 Distension with steroid and saline versus placebo, Outcome 8 Adverse events.
2.1

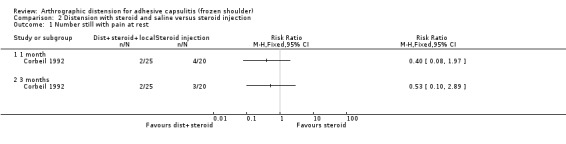

2.1. Analysis
Comparison 2 Distension with steroid and saline versus steroid injection, Outcome 1 Number still with pain at rest.
2.2

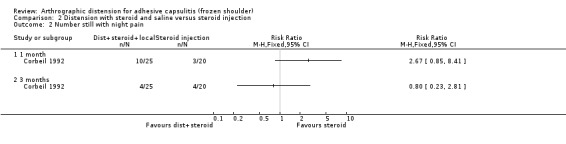

2.2. Analysis
Comparison 2 Distension with steroid and saline versus steroid injection, Outcome 2 Number still with night pain.
3.1

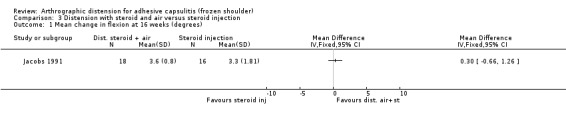

3.1. Analysis
Comparison 3 Distension with steroid and air versus steroid injection, Outcome 1 Mean change in flexion at 16 weeks (degrees).
3.2

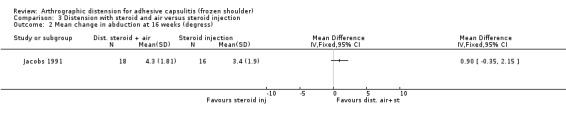

3.2. Analysis
Comparison 3 Distension with steroid and air versus steroid injection, Outcome 2 Mean change in abduction at 16 weeks (degress).
3.3

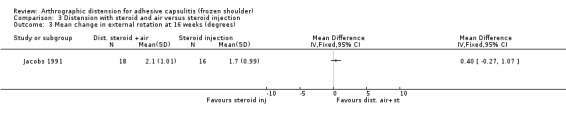

3.3. Analysis
Comparison 3 Distension with steroid and air versus steroid injection, Outcome 3 Mean change in external rotation at 16 weeks (degrees).
4.1

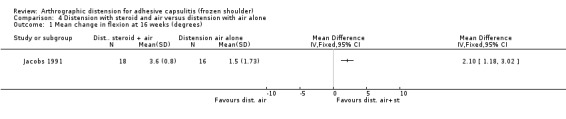

4.1. Analysis
Comparison 4 Distension with steroid and air versus distension with air alone, Outcome 1 Mean change in flexion at 16 weeks (degrees).
4.2
4.2. Analysis
Comparison 4 Distension with steroid and air versus distension with air alone, Outcome 2 Mean change in abduction at 16 weeks (degrees).
4.3

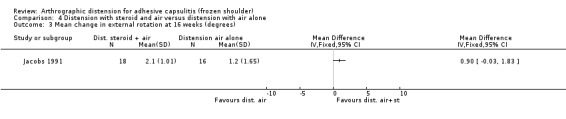

4.3. Analysis
Comparison 4 Distension with steroid and air versus distension with air alone, Outcome 3 Mean change in external rotation at 16 weeks (degrees).
5.1

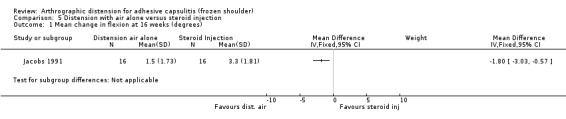

5.1. Analysis
Comparison 5 Distension with air alone versus steroid injection, Outcome 1 Mean change in flexion at 16 weeks (degrees).
5.2

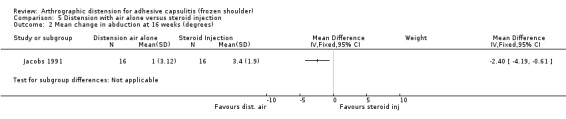

5.2. Analysis
Comparison 5 Distension with air alone versus steroid injection, Outcome 2 Mean change in abduction at 16 weeks (degrees).
5.3

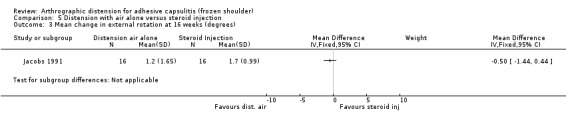

5.3. Analysis
Comparison 5 Distension with air alone versus steroid injection, Outcome 3 Mean change in external rotation at 16 weeks (degrees).
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

References to studies included in this review

Buchbinder 2004 {published data only}
    1. Buchbinder R, Green S, Forbes A, Hall S, Lawler G. Arthrographic joint distension with saline and steroid improves function and reduces pain in patients with painful stiff shoulder: results of a randomised double‐blind placebo‐controlled trial. Annals of Rheumatic Disease 2004;63:302‐9. - PMC - PubMed
Corbeil 1992 {published data only}
    1. Corbeil V, Dussault R, Leduc B, Fleury J. Adhesive capsulitis of the shoulder: a comparative study of arthrography with intra‐articular corticotherapy and with or without capsular distension [Capsulite retractile de l'epaule: etude comparitive de l'arthrographie avec corticotherapie intra‐articulaire avec ou sans distension capsulaire]. Canadian Association of Radiologists Journal 1992;43:127‐30. - PubMed
Gam 1998 {published data only}
    1. Gam AN, Schydlowsky P, Rossel I, Remvig L, Jensen EM. Treatment of "frozen shoulder" with distension and glucocorticoid compared with glucocorticoid alone. Scandinavian Journal of Rheumatology 1998;27:425‐30. - PubMed
Jacobs 1991 {published data only}
    1. Jacobs L, Barton M, Wallace W, Ferrousis J, Dunn W, Bossingham D. Intra‐articular distension and steroids in the management of capsulitis of the shoulder. BMJ 1991;302:1498‐501. - PMC - PubMed
Khan 2005 {published data only}
    1. Khan AA, Mowla A, Shakoor MA, Rahman MR. Arthrographic distension of the shoulder joint in the management of frozen shoulder. Mymensingh Medical Journal 2005;14:67‐70. - PubMed

References to studies excluded from this review

Andren 1965 {published data only}
    1. Andren L, Lunderber B. Treatment of rigid shoulders by joint distension during arthrography. Acta Orthopaedica Scandanavia 1965;36:45‐53. - PubMed
Hsu 1991 {published data only}
    1. Hsu S, Chan K. Arthroscopic distension in the management of frozen shoulder. International Orthopaedics 1991;15:79‐83. - PubMed
Rizk 1994 {published data only}
    1. Rizk TE, Gavant ML, Pinals RS. Treatment of adhesive capsulitis (frozen shoulder) with arthrographic capsular distension and rupture. Archives of Physical Medicine and Rehabilitation 1994;75:803‐7. - PubMed

Additional references

Anton 1993
    1. Anton HA. Frozen shoulder. Canadian Family Physician 1993;39:1773‐7. - PMC - PubMed
Arroll 2005
    1. Arroll B, Goodyear‐Smith F. Corticosteroid injections for painful shoulder: a meta‐analysis. British Journal of General Practice 2005;55:224‐8. - PMC - PubMed
Binder 1984
    1. Binder AI, Bulgen DY, Hazleman BL, Roberts S. Frozen shoulder: a long‐term prospective study. Annals of Rheumatic Disease 1984;43:361‐4. - PMC - PubMed
Buchbinder 2003
    1. Buchbinder R, Green S, Youd JM. Corticosteroid injections for shoulder pain. Cochrane Database of Systematic Reviews 2003, Issue 2. - PMC - PubMed
Buchbinder 2007
    1. Buchbinder R, Youd J, Green S, Stein A, Forbes A, Harris Bennell K, et al. Efficacy and cost‐effectiveness of physiotherapy following glenohumeral joint distension for adhesive capsulitis: A randomized trial. Arthritis Care Research 2007;57(6):1027‐37. - PubMed
Carette 2003
    1. Carette S, Moffet H, Tardiff J, Bessette L, Morin F, Fremont P, et al. Intraarticular corticosteroids, supervised physiotherapy, or a combination of the two in the treatment of adhesive capsulitis of the shoulder. Arthritis and Rheumatism 2003;48:829‐38. - PubMed
Cates 2004
    1. Cates C. Visual Rx. http://www.nntonline.net/ (accessed 27 June 2007).
Codman 1934
    1. Codman EA. The Shoulder. Boston: Thomas Toddog, 1934.
Duplay 1872
    1. Duplay S. De la peri‐arthrite scapulo‐humerale et ces raideurs de l'epaule qui en sont la consequence [De la peri‐arthrite scapulo‐humerale et ces raideurs de l'epaule qui en sont la consequence]. Archives General Medicine 1872;20:513.
Ekelund 1992
    1. Ekelund A, Rydell N. Combination treatment for adhesive capsulitis of the shoulder. Clinical Orthopaedics and Related Research 1992;282:105‐9. - PubMed
Fareed 1989
    1. Fareed DO, Gallivan WR, Jr. Office management of frozen shoulder syndrome: treatment with hydraulic distension under local anesthesia. Clinical Orthopaedics and Related Research 1989;242:177‐83. - PubMed
Gavant 1994
    1. Gavant ML, Rizk TE, Gold RE, Flick PA. Distention arthrography in the treatment of adhesive capsulitis of the shoulder. Journal of Vascular Interventional Radiology 1994;5(2):305‐8. - PubMed
Green 1998
    1. Green S, Buchbinder R, Forbes A, Glazier R. Systematic review of randomised controlled trials of interventions for painful shoulder: selection criteria, outcome assessment, and efficacy. BMJ 1998;16:354‐60. - PMC - PubMed
Green 1999
    1. Green SE, Buchbinder R, Forbes A, Glazier R. Interventions for shoulder pain. Cochrane Database of Systematic Reviews 1999, Issue 2. [Art. No.: CD001156. DOI: 10.1002/14651858.CD001156] - PubMed
Hazleman 1972
    1. Hazleman BL. The painful stiff shoulder. Rheumatology and Physical Medicine 1972;11(8):413‐21. - PubMed
Higgins 2005
    1. Higgins JPT, Green S, editors. Locating and selecting studies. Cochrane Handbook for Systematic Reviews of Interventions 4.2.5 [updated May 2005]; Section 5. www.cochrane.org/resources/handbook/hbook.htm (accessed 24 November 2006).
Lundberg 1969
    1. Lundberg B. The frozen shoulder. Acta Orthopaedica Scandanavia 1969;119:5‐59. - PubMed
Moher 2001
    1. Moher D, Schulz K, Altman DG for the CONSORT Group. The CONSORT statement: revised recommendations for improving the quality of reports of parallel group randomized trials 2001. http://www.consort‐statement.org/Statement/revisedstatement.htm (accessed 27 June 2007). - PubMed
Neviaser 1945
    1. Neviaser JS. Adhesive capsulitis of the shoulder: a study of the pathological findings in periarthritis of the shoulder. Journal of Bone and Joint Surgery 1945;27:211‐22.
Neviaser 1987
    1. Neviaser TJ. Adhesive capsulitis. Orthopedic Clinics of North America 1987;18:439‐43. - PubMed
Reeves 1975
    1. Reeves B. The natural history of the frozen shoulder syndrome. Scandinavian Journal of Rheumatology 1975;4:193‐6. - PubMed
Simmonds 1949
    1. Simmonds F. Shoulder pain with particular reference to 'frozen' shoulder. Journal of Bone and Joint Surgery 1949;318:426‐32. - PubMed
Tugwell 2003
    1. Tugwell P, Shea B, Boers M, Simons L, Strand V, Wells G. Evidence‐based Rheumatology. BMJ Books, 2003.
van der Windt 1995
    1. Windt DA, Koes BW, Jong BA, Bouter LM. Shoulder disorders in general practice: incidence, patient characteristics, and management. Annals of Rheumatic Disease 1995;54:959‐64. - PMC - PubMed
