Comparative Study
. 2008 Jul 23:8:13.
doi: 10.1186/1471-2415-8-13.

Assessment of stereoscopic optic disc images using an autostereoscopic screen - experimental study

Maged S Habib  1 , James A Lowell, Nick S Holliman, Andrew Hunter, Daniella Vaideanu, Anthony Hildreth, David Hw Steel
Affiliations
Comparative Study

Assessment of stereoscopic optic disc images using an autostereoscopic screen - experimental study

Maged S Habib et al. BMC Ophthalmol. .

Abstract

Background: Stereoscopic assessment of the optic disc morphology is an important part of the care of patients with glaucoma. The aim of this study was to assess stereoviewing of stereoscopic optic disc images using an example of the new technology of autostereoscopic screens compared to the liquid shutter goggles.

Methods: Independent assessment of glaucomatous disc characteristics and measurement of optic disc and cup parameters whilst using either an autostereoscopic screen or liquid crystal shutter goggles synchronized with a view switching display. The main outcome measures were inter-modality agreements between the two used modalities as evaluated by the weighted kappa test and Bland Altman plots.

Results: Inter-modality agreement for measuring optic disc parameters was good [Average kappa coefficient for vertical Cup/Disc ratio was 0.78 (95% CI 0.62-0.91) and 0.81 (95% CI 0.6-0.92) for observer 1 and 2 respectively]. Agreement between modalities for assessing optic disc characteristics for glaucoma on a five-point scale was very good with a kappa value of 0.97.

Conclusion: This study compared two different methods of stereo viewing. The results of assessment of the different optic disc and cup parameters were comparable using an example of the newly developing autostereoscopic display technologies as compared to the shutter goggles system used. The Inter-modality agreement was high. This new technology carries potential clinical usability benefits in different areas of ophthalmic practice.

PubMed Disclaimer

Figures

Figure 1
Figure 1
An example of a two-view autostereoscopic display. Two-view displays generate the two views for the left and right eyes in two viewing windows in space. These are primarily visible from a central viewing position and the user may have 20 – 30 mm of movement around the central viewing position before they lose the 3D effect.
Figure 2
Figure 2

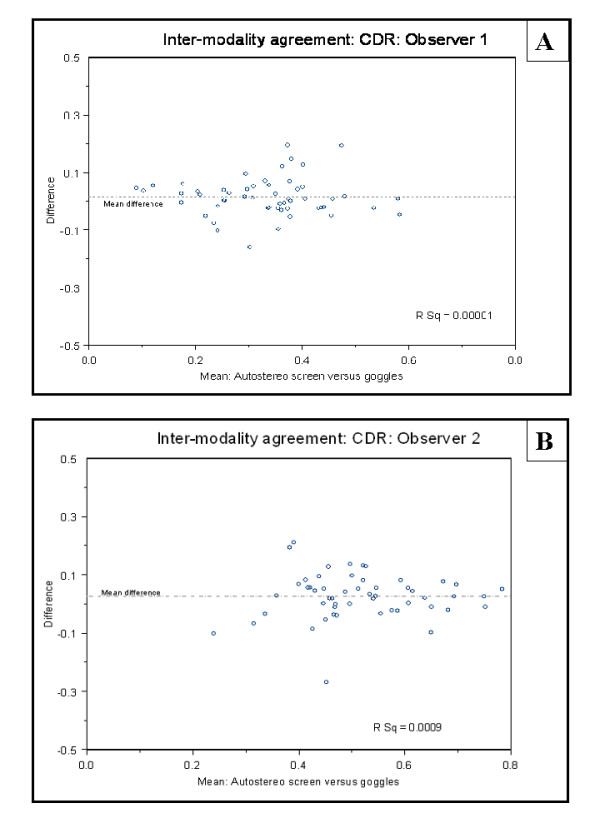

Bland Altman plots showing the inter-modality agreement of the overall estimated Cup/disc ratio. A: Inter-modality agreement for observer 1. B: Inter-modality agreement for observer 2.
See this image and copyright information in PMC

References

    1. Parkin B, Shuttleworth G, Costen M, Davison C. A comparison of stereoscopic and monoscopic evaluation of optic disc topography using a digital optic disc stereo camera. Br J Ophthalmol. 2001;85:1347–1351. doi: 10.1136/bjo.85.11.1347. - DOI - PMC - PubMed
    1. Lipton L, Ackerman M. Liquid crystal shutter system for stereoscopic and other applications. United States patent. Patent Number. 1990. p. 4967268.
    1. Lipscomb J, Wooten W. Reducing crosstalk between stereoscopic views. Stereoscopic Displays and Virtual Reality Systems (Proceedings of S P I E) 1994;2177:92–96.
    1. Eichenlaub JB. Further advances in autostereoscopic technology at DimensionTechnologies Inc. Stereoscopic displays and applications III (Proceedings of S P I E) 1992;1669:163–175.
    1. Holliman NS. Three dimensional display systems. In: Dakin JP, Brown RGW, editor. Handbook of Optoelectronics. Taylor and Francis; 2006.
