Dynamic active telepathology over National Health Laboratory service network, South Africa: feasibility study using Nikon Coolscope

Abstract

Telepathology recently entered a new era with the introduction of digital microscopes combined with Internet technology. The microscope allows viewing real time of whole slide (macro) as well as different chosen fields in four different magnifications. Three Nikon Coolscope were installed in NHLS laboratories in Mthatha, East London and Port Elizabeth. All these microscopes are connected to NHLS server allowing real time viewing of the full slide at any time of the day using Internet browser. Viewing is possible from any PC connected to NHLS Intranet. The challenge was to be able to view slides from other than NHLS computers due to NHLS IT Department network security measures. This was solved by installing NHLS Virtual Private Network server. About 60 cases were viewed by pathologists in Cape Town (Stellenbosh University) and Pretoria (MEDUNSA). All users assessed the system as a helpful tool allowing easy access to cases needing consultation or second opinion. The quality of images was very good. Our experience with Nikon Coolscope is positive. It is an excellent tool for remote small histopathology departments lacking specialists in such areas as dermatopathology, oncology, and haematopathology. Further studies are needed especially in the scope of full utilization of the microscopes installed and impact on laboratory services.

Figure 1

Eastern Cape tertiary NHLS laboratories with Coolscopes installed and connected via LAN.

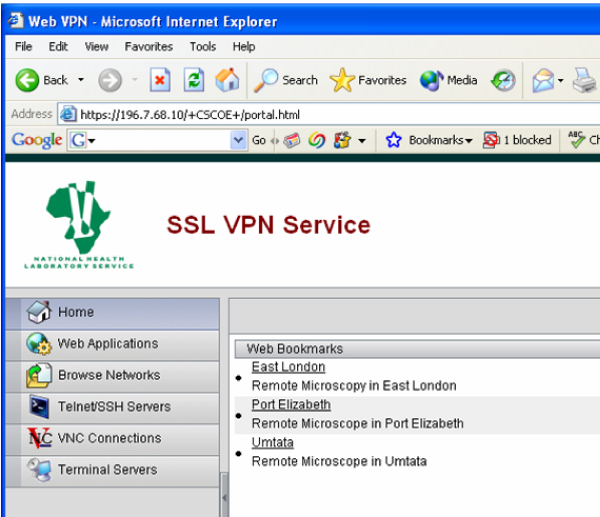

Figure 2

NHLS VPN Web Page with connectivity to Coolscopes.

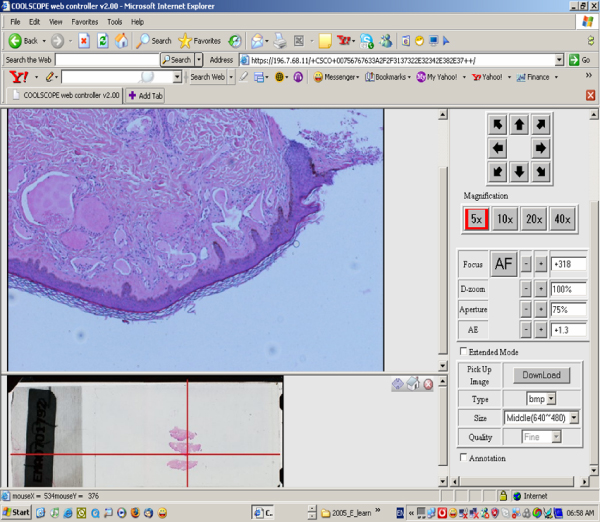

Figure 3

Coolscope Interface for remote control.
