. 2008 Aug;16(7):596-600.
doi: 10.1080/10611860802230240.

The architecture of ligand attachment to nanocarriers controls their specific interaction with target cells

Rupa R Sawant  1 , Rishikesh M Sawant, Amit A Kale, Vladimir P Torchilin
Affiliations

The architecture of ligand attachment to nanocarriers controls their specific interaction with target cells

Rupa R Sawant et al. J Drug Target. 2008 Aug.

Abstract

Surface architecture of pharmaceutical nanocarriers (using polymeric micelles as an example) and the length of the spacer group through which specific ligand is attached to the carrier surface determine the interaction of ligand-bearing nanocarrier with cells. We have prepared surface-modified polyethyleneglycol-phosphatidylethanolamine (PEG-PE) micelles containing TATp attached to PEG-PE with a PEG block longer or shorter (TATp-PEG(1000)-PE or TATp-PEG(3400)-PE) than the PEG block in the main micelle-forming material (PEG(750)-PE and/or PEG(2000)-PE). The length of the PEG spacer in TATp-PEG-PE should allow for a non-hindered interaction of TATp with the cell surface, but it should not be too long to allow for the conformational "folding in" of TATp moiety inside the PEG globule making it unable to interact with the cells. The "folding in" of the ligand attached to an unnecessary long PEG spacer was further supported by the fluorescence resonance energy transfer (FRET) study between fluorescently labeled lipid 1,2-dipalmitoyl-sn-glycero-3-phosphoethanolamine-N-(7-nitro-2-1,3-benzoxadiazol-4-yl) (NBD-PE) inserted into the core of PEG(750)-PE micelles and micelle-incorporated rhodamine-labeled TATp-PEG-PE. Micelles containing rhodamine-labeled TATp-PEG-PE with the longest PEG spacer (3400 Da) demonstrated strongly enhanced quenching of NBD-PE fluorescence with rhodamine-TATp confirming the "folding in" of TATp moiety into PEG globule bringing it closer to the micelle core-incorporated NBD.

PubMed Disclaimer

Figures

Figure 1
Figure 1

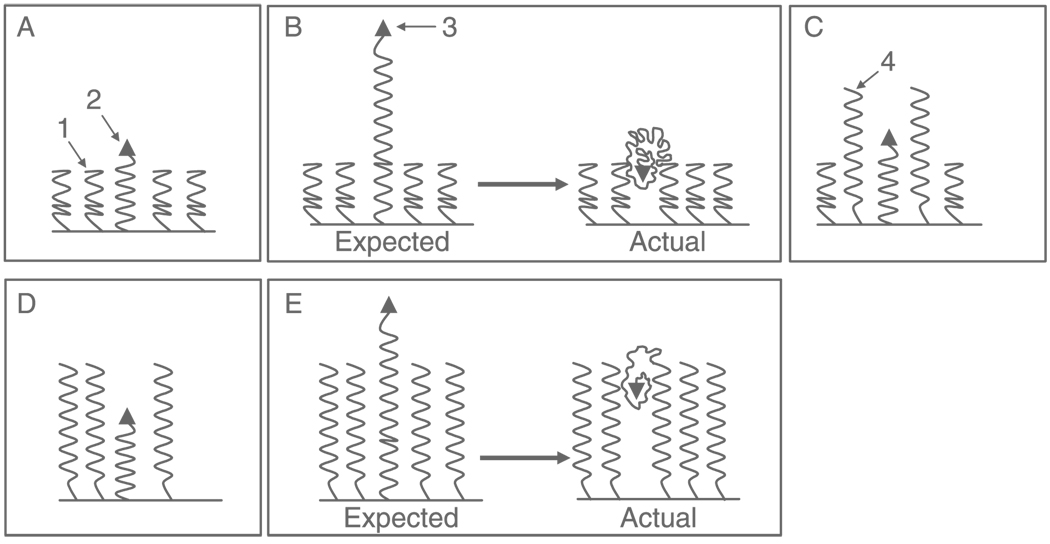

Schematic representation of the TATp-containing micelles: (a) PEG750–PE: TATp–PEG1000–PE micelles, (b) PEG750–PE: TATp–PEG3400–PE micelles, (c) PEG750–PE: PEG2000–PE: TATp–PEG1000–PE micelles, (d) PEG2000–PE: TATp–PEG1000–PE micelles, and (e) PEG2000–PE: TATp–PEG3400–PE micelles. 1, PEG750–PE; 2, TATp–PEG1000–PE; 3, TATp–PEG3400–PE; 4, PEG2000–PE.
Figure 2
Figure 2
In each panel, the left figure shows the bright field and the right figure shows the fluorescent microscopy of BT20 cells treated with (a) Rh-PE:PEG750–PE micelles, (b) Rh-PE: PEG2000–PE micelles, (c) Rh-PE: PEG750–PE: TATp–PEG1000–PE micelles, (d) Rh-PE: PEG750–PE: PEG2000–PE (30 mol%): TATp–PEG1000–PE micelles, (e) Rh-PE: PEG750–PE: PEG2000–PE (50 mol%): TATp–PEG1000–PE micelles, (f) Rh-PE: PEG2000–PE: TATp–PEG1000–PE micelles, (g) Rh-PE: PEG750–PE: TATp–PEG3400–PE micelles, and (h) Rh-PE: PEG2000–PE: TATp–PEG3400–PE micelles. Magnification 40 × objective.
Figure 3
Figure 3
Fluorescence intensity of NBD-PE containing micelles with rhodamine-labeled TATp–PEG3400–PE or TATp–PEG1000–PE, n = 3, ★p < 0.05.
See this image and copyright information in PMC

References

    1. Cryan SA, Devocelle M, Moran PJ, Hickey AJ, Kelly JG. Increased intracellular targeting to airway cells using octaargi-nine-coated liposomes: In vitro assessment of their suitability for inhalation. Mol Pharm. 2006;3(2):104–112. - PubMed
    1. Dodd CH, Hsu HC, Chu WJ, Yang P, Zhang HG, Mountz JD, Jr, Zinn K, Forder J, Josephson L, Weissleder R, Mountz JM, Mountz JD. Normal T-cell response and in vivo magnetic resonance imaging of T cells loaded with HIV transactivator-peptide-derived superparamagnetic nanoparticles. J Immunol Methods. 2001;256(1–2):89–105. - PubMed
    1. Gupta B, Levchenko TS, Torchilin VP. TAT peptide-modified liposomes provide enhanced gene delivery to intracranial human brain tumor xenografts in nude mice. Oncol Res. 2007;16(8):351–359. - PubMed
    1. Hyndman L, Lemoine JL, Huang L, Porteous DJ, Boyd AC, Nan X. HIV-1 Tat protein transduction domain peptide facilitates gene transfer in combination with cationic liposomes. J Control Release. 2004;99(3):435–444. - PubMed
    1. Jannink G, Cloizeaux Jd. Polymers in solution. J Phys: Condens Matter. 1990;2:1–24.
