. 2009 Aug;22(4):363-8.
doi: 10.1007/s10278-008-9156-6. Epub 2008 Sep 3.

Medical grade vs off-the-shelf color displays: influence on observer performance and visual search

Elizabeth A Krupinski  1
Affiliations

Medical grade vs off-the-shelf color displays: influence on observer performance and visual search

Elizabeth A Krupinski. J Digit Imaging. 2009 Aug.

Abstract

The goal of this study was to compare diagnostic accuracy of radiologists viewing clinical images on a top-of-the-line medical-grade vs a top-of-the-line commercial off-the-shelf (COTS) color display with the luminance values set to simulate a display that had been in use for 1 year. A set of 50 digital radiography chest images was selected for use in the study, half containing a solitary pulmonary nodule and half nodule-free. The images were displayed twice to each of six observers, once on each display. Eye position was recorded on a subset of the images. Overall, there was a statistically significant difference (F = 4.1496, p = 0.0471) between the medical-grade color display and the COTS color display in terms of receiver operating characteristic area under the curve values, with the medical-grade display yielding higher diagnostic accuracy. Total viewing time did not differ significantly, but eye position data revealed differences, suggesting better search and decision-making efficiency with the medical-grade display. Medical-grade color displays at 1 year old yield better diagnostic and search efficiency than COTS color displays and thus are recommended for primary reading if color displays are to be used.

PubMed Disclaimer

Figures

Fig 1
Fig 1

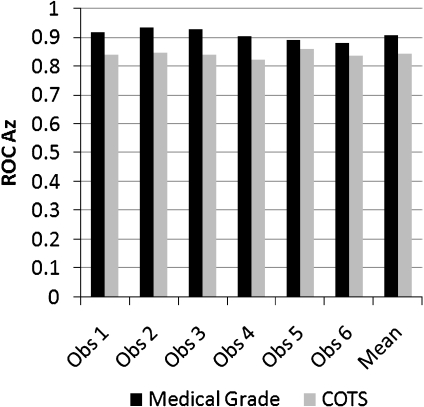

Individual and mean ROC Az values for the medical-grade vs COTS color displays. Observers 1, 2, and 3 (left) are the radiologists, and observers 4, 5, and 6 (right) are the residents.
Fig 2
Fig 2
Individual and mean viewing times for medical-grade vs COTS color displays. Observers 1, 2, and 3 (left) are the radiologists, and observers 4, 5, and 6 (right) are the residents.
Fig 3
Fig 3
Mean total viewing times for medical-grade vs COTS color displays in the eye position study.
Fig 4
Fig 4

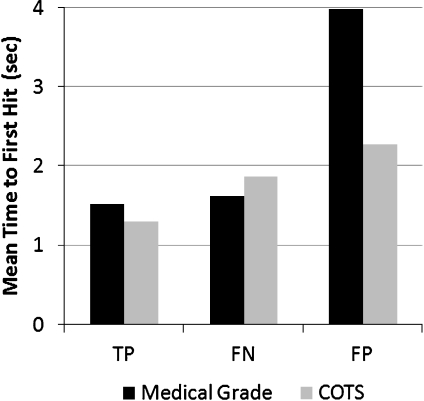

Mean time to first fixate the nodules (TP or FN decision) and non-nodule (FP) reported locations for medical-grade vs COTS color displays.
Fig 5
Fig 5
Mean cumulative dwell time for each decision (TP, FP, FN, TN) for medical-grade vs COTS color displays.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Barco Color your world: diagnostic color displays take off. Health Imaging IT. 2006;4:30–33.
    1. Doyle AJ, LeFevre J, Anderson GD. Personal computer versus workstation display: observer performance in detection of wrist fractures on digital radiographs. Radiol. 2005;237:872–877. doi: 10.1148/radiol.2373041439. - DOI - PubMed
    1. Lehmkuhl L, Mulzer J, Teichgraeber U, Gillessen C, Ehrenstein T, Ricke J. Evaluation of the display quality of different modalities in digital radiology. Fortschr Geb Rontgenstr Nuklearmed. 2004;176:1031–1038. doi: 10.1055/s-2004-813200. - DOI - PubMed
    1. Ricke J, Hanninen EL, Zielinski C, Amthauer H, Stroszczynski C, Liebig T, Wolf M, Hosten N. Shortcomings of low-cost imaging systems for viewing computed radiographs. Comput Med Imaging Graph. 2000;24:25–32. doi: 10.1016/S0895-6111(99)00036-1. - DOI - PubMed
    1. Langer S, Fetterly K, Mandrekar J, Harmsen S, Bartholmai B, Patton C, Bishop A, McCannel C. ROC study of four LCD displays under typical medical center lighting conditions. J Dig Imag. 2006;19:30–40. doi: 10.1007/s10278-005-8149-y. - DOI - PMC - PubMed
