. 2008 Sep 28:(36):4354-6.
doi: 10.1039/b805447a. Epub 2008 Jul 18.

Electrochemical biosensor featuring a two-enzyme pathway and DNA for screening toxic reactive metabolites of arylamines

Minjeong So  1 , John B Schenkman, James F Rusling
Affiliations

Electrochemical biosensor featuring a two-enzyme pathway and DNA for screening toxic reactive metabolites of arylamines

Minjeong So et al. Chem Commun (Camb). .

Abstract

We demonstrate for the first time a biosensor featuring a sequential two-enzyme pathway suitable to screen potentially toxic reactive metabolites generated during metabolism.

PubMed Disclaimer

Figures

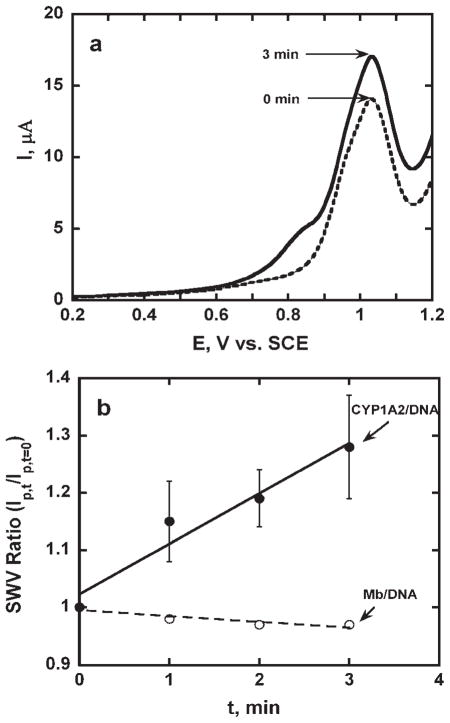

Fig. 1
Fig. 1
(a) SWVs for sensors featuring PDDA/DNA/(CYP1A2/DNA)2 films (denoted CYP1A2/DNA) in pH 5.5 buffer containing 50 μM Ru(bpy)3 2+ before (0 min) and after (3 min) incubations at 37 °C with 50 μM PhIP and 1 mM H2O2 (for enzyme activation) at pH 7.5. (SWV ampl. 25 mV; freq. 15 Hz; 4 mV step). (b) Influence of incubation time with 50 μM PhIP and 1 mM H2O2 on CYP1A2/DNA sensor final/initial peak ratio (●) (error bars are sd); and on PDDA/DNA/(Mb/DNA)2 control (denoted Mb/DNA) (○) (relative sd in controls from 3–5 trials: ±8%).

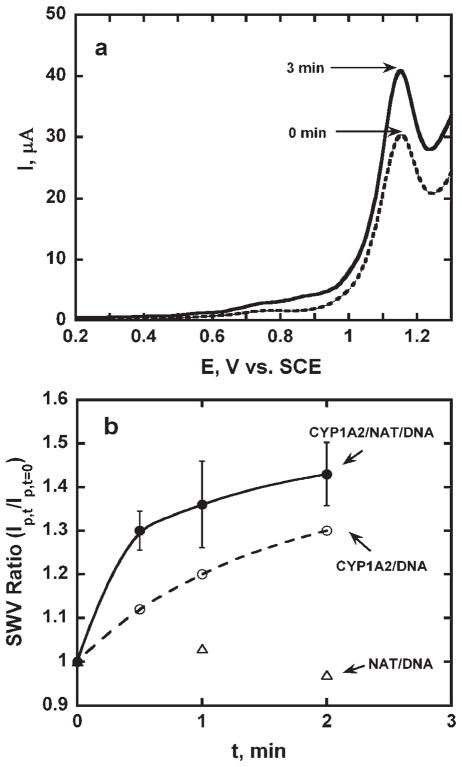

Fig. 2
Fig. 2
(a) SWVs of DNA/RuPVP/DNA/(CYP1A2/DNA)2/(NAT/DNA)2 2-enzyme sensors in pH 5.5 buffer before (0 min) and after (3 min) incubations at 37 °C in pH 7.5 buffer containing 50 μM PhIP, 1 mM H2O2, 0.5 mM AcCoA, 1 mM DTT and 1 mM EDTA (SWV ampl. 25 mV; freq. 15 Hz; step 4 mV). (b) Influence of enzyme incubation time on final/initial peak ratio for DNA/RuPVP/DNA/(CYP1A2/DNA)2/(NAT/DNA)2 2-enzyme sensors (●), control 1 (○) DNA/RuPVP/DNA/(CYP1A2/DNA)2 sensor with 50 μM PhIP and 1 mM H2O2, and control 2 (△) DNA/RuPVP/DNA/(NAT/DNA)2 sensor with 50 μM PhIP, 0.5 mM AcCoA, 1 mM DTT, 1 mM EDTA (relative sd in controls from 3–5 trials was ±8%).

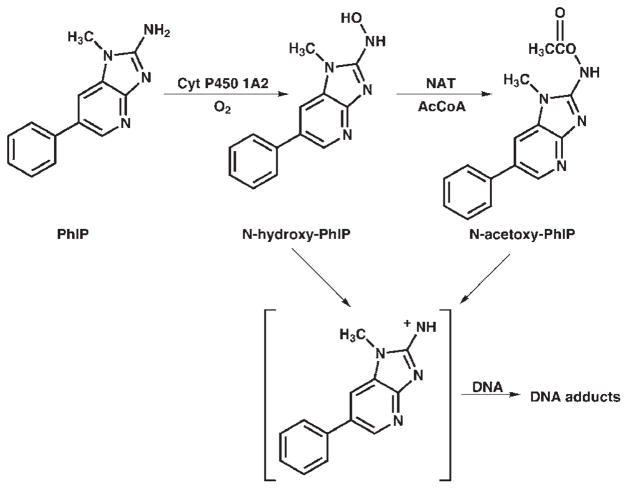

Scheme 1
Scheme 1
Metabolism of PhIP in the two-enzyme sequence.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Ariga K, Kunitake T. In: Protein Architecure: Interfacing Molecular Assemblies and Immobilization Biotechnology. Lvov Y, Möhwald H, editors. Marcel Dekker; NY: 2000. pp. 169–192.
    2. Ariga K, Hill JP, Ji Q. Phys Chem Chem Phys. 2007;9:2319–2340. - PubMed
    1. Dronov R, Kurth DG, Möhwald H, Spricigo R, Leimkuhler S, Wollenberger U, Rajagopalan KV, Scheller FW, Lisdat F. J Am Chem Soc. 2008;130:1122–1123. - PubMed
    1. Rusling JF, Hvastkovs EG, Hull DO, Schenkman JB. Chem Commun. 2008:141–154. - PMC - PubMed
    1. Rusling JF. Biosens Bioelectron. 2004;20:1022–1028. - PubMed
    2. Rusling JF, Hvastkovs EG, Schenkman JB. Curr Opin Drug Discovery Dev. 2007;10:67–73. - PubMed
    1. Hvastkovs EG, So M, Krishnan S, Bajrami B, Tarun M, Jansson I, Schenkman JB, Rusling JF. Anal Chem. 2007;79:1897–1906. - PMC - PubMed
    2. Krishnan S, Hvastkovs EG, Bajrami B, Jansson I, Schenkman JB, Rusling JF. Chem Commun. 2007:1713–1715. - PubMed
    3. Wang B, Jansson I, Schenkman JB, Rusling JF. Anal Chem. 2005;77:1361–1367. - PubMed
