Mining physical protein-protein interactions from the literature

Abstract

Background: Deciphering physical protein-protein interactions is fundamental to elucidating both the functions of proteins and biological processes. The development of high-throughput experimental technologies such as the yeast two-hybrid screening has produced an explosion in data relating to interactions. Since manual curation is intensive in terms of time and cost, there is an urgent need for text-mining tools to facilitate the extraction of such information. The BioCreative (Critical Assessment of Information Extraction systems in Biology) challenge evaluation provided common standards and shared evaluation criteria to enable comparisons among different approaches.

Results: During the benchmark evaluation of BioCreative 2006, all of our results ranked in the top three places. In the task of filtering articles irrelevant to physical protein interactions, our method contributes a precision of 75.07%, a recall of 81.07%, and an AUC (area under the receiver operating characteristic curve) of 0.847. In the task of identifying protein mentions and normalizing mentions to molecule identifiers, our method is competitive among runs submitted, with a precision of 34.83%, a recall of 24.10%, and an F1 score of 28.5%. In extracting protein interaction pairs, our profile-based method was competitive on the SwissProt-only subset (precision = 36.95%, recall = 32.68%, and F1 score = 30.40%) and on the entire dataset (30.96%, 29.35%, and 26.20%, respectively). From the biologist's point of view, however, these findings are far from satisfactory. The error analysis presented in this report provides insight into how performance could be improved: three-quarters of false negatives were due to protein normalization problems (532/698), and about one-quarter were due to problems with correctly extracting interactions for this system.

Conclusion: We present a text-mining framework to extract physical protein-protein interactions from the literature. Three key issues are addressed, namely filtering irrelevant articles, identifying protein names and normalizing them to molecule identifiers, and extracting protein-protein interactions. Our system is among the top three performers in the benchmark evaluation of BioCreative 2006. The tool will be helpful for manual interaction curation and can greatly facilitate the process of extracting protein-protein interactions.

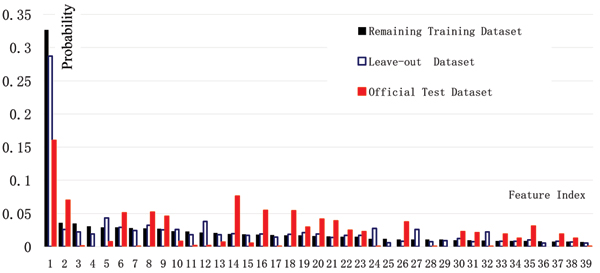

Figure 1

The probability of a feature x occurring in irrelevant articles. The figure shows the three distributions of the leave-out dataset, remaining training dataset, and official test dataset. The probability of a feature x occurring in irrelevant articles (Pr(x|c_-)) in different datasets are shown (only 40 features are listed here).

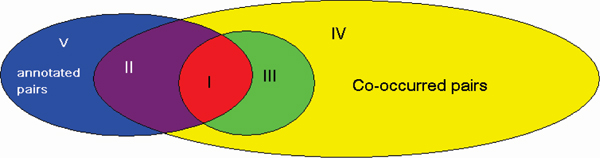

Figure 2

Errors of interaction pair extraction. The figure shows the distribution of errors in the interaction pair extraction. The blue ellipse contains 798 annotated pairs, the yellow ellipse 8,172 coincident pairs, and the green circle 339 extracted pairs. I, 100 true-positive samples; II, 166 coincident but false-negative samples; III, 239 false-positive samples; IV, 7,135 true-negative samples; V, 532 false-negative samples but never coincident.

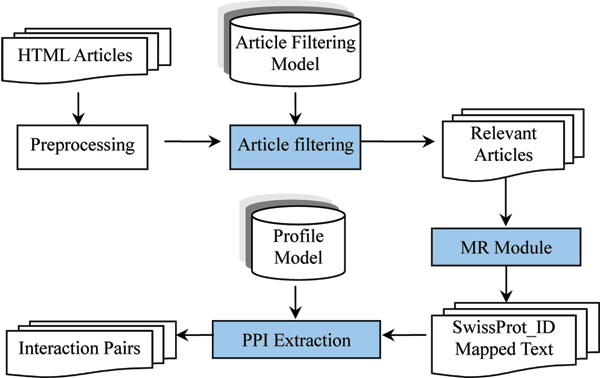

Figure 3

The system architecture of our method. Blue rectangles are the three main modules in our system. The figure shows the architecture of our system, and there are three main modules in the system that have been colored in blue. MR, molecule recognition; PPI, protein-protein interaction.

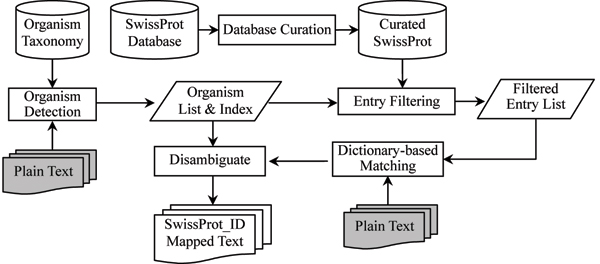

Figure 4

The flowchart of the molecule recognition module. Gray boxes are the input of our molecule recognition module and the figure illustrates the flowchart of the molecule recognition module.

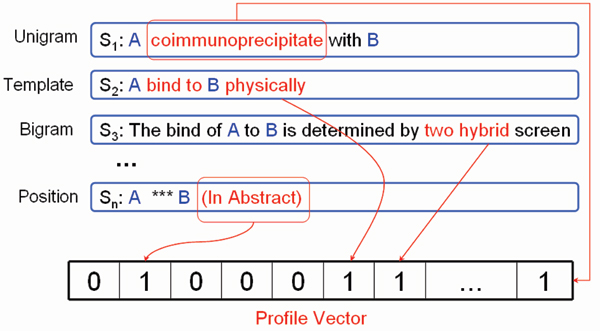

Figure 5

The profile vector in the extraction of interaction protein pairs. The construction of the profile vector for each candidate protein pair is shown in this figure. The term feature (unigram/bigram), template feature, and position feature are used in this process.
