Imaging of hereditary hemorrhagic telangiectasia

Abstract

This pictorial review is based on our experience of the follow-up of 120 patients at our multidisciplinary center for hereditary hemorrhagic telangiectasia (HHT). Rendu-Osler-Weber disease or HHT is a multiorgan autosomal dominant disorder with high penetrance, characterized by epistaxis, mucocutaneous telangiectasis, and visceral arteriovenous malformations (AVMs). The research on gene mutations is fundamental and family screening by clinical examination, chest X-ray, research of pulmonary shunting, and abdominal color Doppler sonography is absolutely necessary. The angioarchitecture of pulmonary AVMs can be studied by unenhanced multidetector computed tomography; however, all other explorations of liver, digestive bowels, or brain require administration of contrast media. Magnetic resonance angiography is helpful for central nervous system screening, in particular for the spinal cord, but also for pulmonary, hepatic, and pelvic AVMs. Knowledge of the multiorgan involvement of HHT, mechanism of complications, and radiologic findings is fundamental for the correct management of these patients.

Fig. 1

A 20-year-old woman without a personal or family history fulfilling the Curacao criteria was admitted for cerebral transient ischemic attack; after complete clinical and paraclinical investigations the only abnormality found was paradoxical emboli through a small pulmonary arteriovenous malformation (PAVM). Maximal intensity projection MDCT showing the feeding artery (2), the aneurism, and the draining vein of a simple unique lower right lobe PAVM. The feeding artery is smaller than 3 mm; nevertheless, it had a clinical impact

Fig. 2

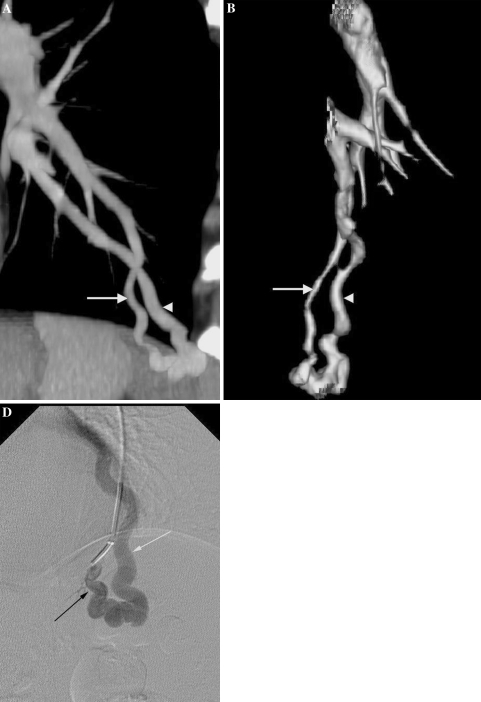

A 57-year-old woman with a personal and familial (father, brother, and grandfather) history of epistaxis and multiples telangiectasia presented dyspnea leading to performance of a chest CT scan which discovered a unique pulmonary arteriovenous malformation (PAVM) of the left lower lobe. (A) Maximal intensity projection MDCT on the parasagittal plane shows a feeding artery (arrow), the aneurysm, and the draining vein (arrowhead) of a simple unique lower left lobe PAVM. (B) Anterior view of volume-rendering technique MDCT of the same lower left lobe PAVM. (C) Movie 1: A 360° view of the lower left PAVM. (D) Left lower lobe PAVM angiogram showing clearly the serpiginous architecture with one pulmonary artery (black arrow) feeding the PAVM and one draining vein (white arrow) without identification of an aneurysmal sac. (E) Movie 2: Dynamic angiogram of this PAVM shows the dynamic circulation of the iodine contrast

Fig. 3

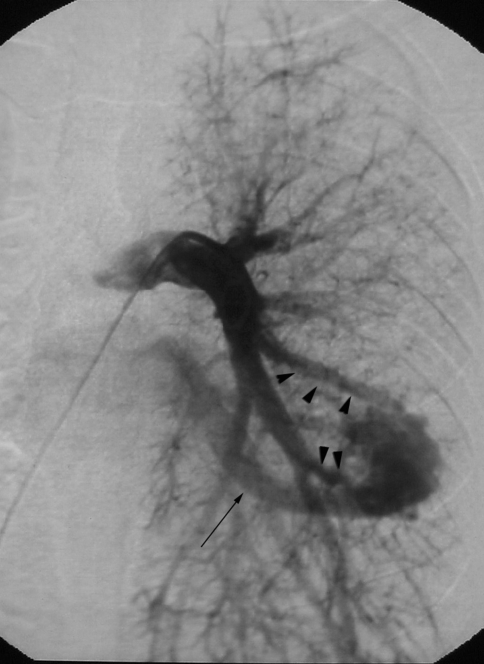

A 23-year-old woman with a personal and familial history of HHT, in particular, a cerebral arteriovenous malformation in her grandmother, was sent for occlusion of multiple PAVMs including a complex malformation with two different segmental (arrowheads) arteries (lingular and left ventral inferior arteries) feeding a large reticulated fistula drained by two segmental veins (arrow)

Fig. 4

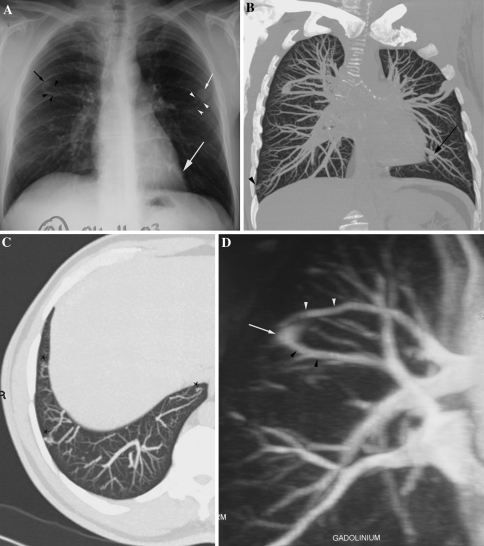

A 45-year-old man with a personal and familial (father, sister, and daughter) history of epistaxis and multiple telangiectasia presented pulmonary nodules on a chest X-ray. Unenhanced MDCT shows multiple PAVMs; right-to-left shunting was calculated as 17%. (A) Chest X-ray shows two well-defined nodules (arrows) with branching vessels (arrowheads). The third one is doubtful (large white arrow). (B) MDCT coronal 30-mm-thick slab maximal intensity projection confirms the vascular structure of the nodules with branching vessels identified on the chest X-ray. Furthermore, it confirms the lower left PAVM (arrow) and shows a small right lower lobe PAVM not identified by chest X-ray (arrowhead). (C) MDCT axial 20-mm-thick slab maximal intensity projection shows clearly three PAVMs on the extreme right lower lobe (stars). These PAVMs are not visible on the chest X-ray. (D) Coronal CE-MRA shows the anatomy of the right upper lobe PAVM seen on the chest X-ray, with the feeding pulmonary artery (white arrowheads), the aneurysmal sac (arrow), and the draining vein (black arrowheads)

Fig. 5

A 27-year-old woman with epistaxis since the age of 5 years, cutaneomucous telangiectasis, PAVMs, and a confirmed family history of HHT (mother, grandmother, and aunt). Three PAVMs were occluded at the age of 12 years; because of their small size, several PAVMs were not occluded at that time. Recently, the patient was admitted for ischemic stroke; the unenhanced MDCT shows clearly the enlargement of the previous PAVMs not treated. Right-to-left shunting is calculated as 15%. (A) Coronal three-dimensional volume-rendered image shows multiple lower lobe PAVMs without a PAVM on the upper lobes. Note the absence of the aneurysmal sac distally to the coil (white arrow) placed on the feeding artery of the PAVM 15 years ago. (B) Superselective angiogram of a right lower lobe PAVM shows clearly the angio-architecture of the fistulae. (C) Superselective angiogram control after transcatheter occlusion by a Nester coils (14 cm long, 4 mm diameter; Cook, Paris, France) showing the complete exclusion of the aneurysmal sac. The coil was placed as distally as possible and very compact to prevent reperfusion (arrow)

Fig. 6

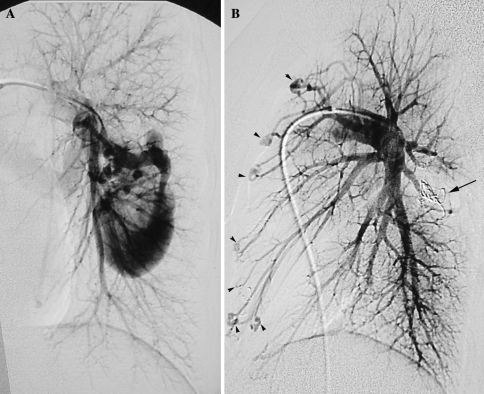

A 24-year-old asymptomatic woman underwent routine chest radiography that showed multiple parenchymal vascular opacities. She fulfills the Curacao criteria for HHT. The biggest one was in the left lung. (A) A frontal view of the left selective pulmonary artery angiogram shows the large fistulae without clear evidence of other PAVMs. (B) A lateral left pulmonary artery angiogram view post transcatheter occlusion of the large PAVM (arrow) reveals several smaller but clinically significant (pulmonary artery diameters, >3 mm) fistulae in the anterior and subpleural space (arrowheads). Both series were performed using the same rate (20 ml/s) and contrast volume (40 ml)

Fig. 7

Follow up of the 45-year-old patient described in the legend to Fig. 3. Coronal maximal intensity projection MDCT (A) and coronal contrast-enhanced MRA (B) show the reperfusion of a treated PAVM. The absence of coil artifact in CE-MRA gives a direct sign of reperfusion by visualizing the reperfused artery (arrowheads). The MDCT signs are indirect: persistence of the aneurysmal sac and of a large draining vein. (C) Standard angiography confirms the reperfusion. The elongation of the uncompacted coil and the proximal placement of the coil into the feeding artery were probably risk factors for reperfusion

Fig. 8

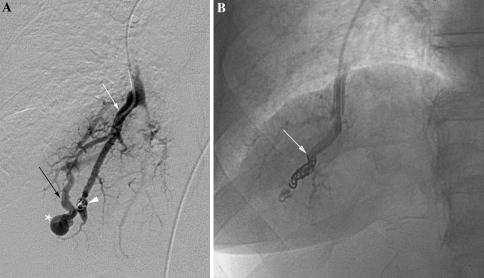

A 77-year-old woman diagnosed with HHT with pulmonary involvement and AKL1 genotype, with a history of PAVM embolization and reperfusion, neurological complications, and important epistaxis was hospitalized for repeat transcatheter occlusion of a reperfused PAVM. (A) Superselective angiogram of the feeding artery (white arrow) shows the single coil (white arrowhead), the aneurysmal sac (asterisk), and the large draining vein (black arrow). (B) Superselective angiogram control of the PAVM shows complete occlusion of the feeding artery (white arrow) and the aneurysm. Although, to prevent reperfusion, the first single coil was placed distally, right next to the aneurysmal sac, reperfusion occurred. The use of a single coil is a risk factor for reperfusion

Fig. 9

A 36-year-old woman presenting with multiple acute cerebral infarctions. The intracerebral and cervical vessel checkup was normal except for the left vertebral artery occlusion. The cardiac evaluation and chest CT scan show a right-to-left shunt by a large PAVM of the internal segment of the right middle lobe. The genetic study was positive for ALK1, but it is not formally recognized as a pathogen by geneticists. (A) Serial images of diffusion weighted images (diffusion b value = 1000 s/mm²) shows multiple cerebral infarction involving the right middle cerebral artery (white arrows), the right (white arrowheads) and left (black arrows) posterior cerebral arteries, and the right superior cerebella artery (black arrowheads) territories. (B) CE-MRA of the neck vessels shows a left vertebral artery occlusion (arrow), potentially to cruoric emboli

Fig. 10

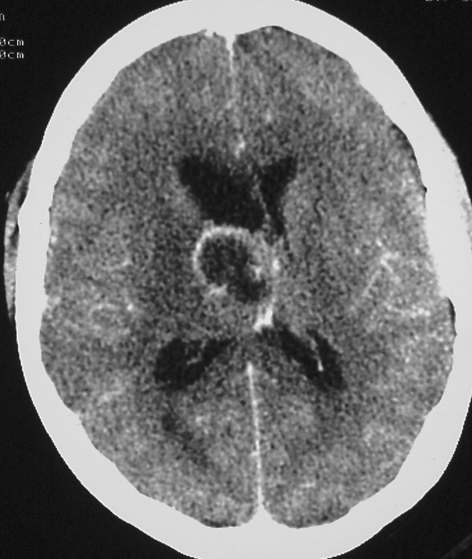

A 25-year-old woman presenting with headache and fever. Enhanced CT scan shows a ring contrast enhancement mass of the right basal ganglia in association with a brain abscess. The etiological research revealed multiple PAVMs and mucocutaneous telangiectasis consistent with HHT

Fig. 11

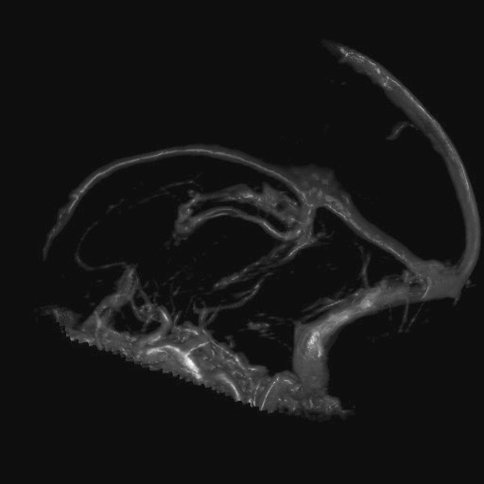

A 55-year-old woman with HHT presenting important epistaxis inducing anemia, multiple telangiectasis, and liver and pancreatic involvement without pulmonary abnormalities. She had brain MR angiography for systematic evaluation, which shows a small cebrovascular malformation (arrow): follow-up and no endovascular treatment were decided

Fig. 12

Hepatic abnormalities in several patients with HHT. (A) Hepatic artery (A) enlargement at 9 mm on ultrasound (US). (B) Doppler US of the right portal branch shows pulsatile portal flow consistent with an hepatic artery-to-portal vein shunt (arterioportal shunt). (C) Doppler US of the left hepatic vein shows pulsatile flow into the left hepatic vein consistent with an hepatic artery-to-hepatic vein shunt (arterioveinous shunt). (D) A 2-mm-thick coronal reformatting MDCT during arterial phase shows hepatic telangiectasis (arrows). (E) Axial, (F) sagittal, and (G) coronal maximal intensity projection MDCT reformatting with a 15-mm slice shows major hepatic artery hypertrophy with arterial calcifications (black arrow) and celiac trunk hypertrophy in a patient with giant left basal PAVM (asterisk). Note the left inferior phrenic artery (white arrow) enlargement (in comparison with the right inferior phrenic artery; white arrowheads) to supply the flow steal of the left lower lobe pulmonary artery by the giant PAVM, inducing relative lower lobe ischemia

Fig. 13

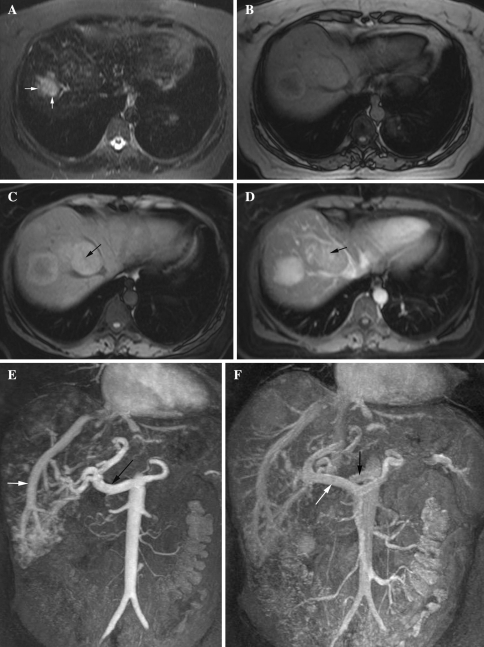

Same patient as in Fig. 12D. Hepatic abnormalities explored by liver MRI: liver pseudotumor and vascular malformations. (A) Axial TSE T2 short TI inversion recovery (TSE-STIR) image shows a hyperintense mass involving segment VII (arrow) without any abnormalities in segment VIII. (B) Axial T1-weighted fast low-angle shot (FLASH) image shows the hyper signal ring of the segment VII lesion and isointensity relative to the normal hepatic tissue signal mass of segment VIII. (C) Axial fat-suppressed T1-weighted FLASH image shows a homogeneous bright lesion with hypointense central scar (black arrow) of the segment VIII lesion and the highly intense ring of the segment VII lesion. (D) Axial delayed contrast-enhanced T1-weighted FLASH image shows that the segment VII lesion has homogeneous enhancement corresponding to vascular malformation, and the segment VIII lesion is isointense relative to normal hepatic tissue with enhancement of the central scar (black arrow) corresponding to focal nodular hyperplasia. (E) Coronal arterial-phase contrast-enhanced MR angiography shows hepatic artery enlargement (black arrow) and hepatic artery-to-hepatic vein shunting with hepatic vascular malformations. The rapid enhancement of the hepatic vein (right arrow) before portal vein and renal vein enhancement signal the hepatic artery-to-hepatic vein shunting within the hepatic vascular malformation. (F) Coronal portal-phase contrast-enhanced MRA shows that the portal vein (white arrow) is permeable and has the same dimension as the enlarged hepatic artery (black arrow). (G) Movie 3 shows the maximal intensity projection of arterial-phase contrast-enhanced MR angiography of the upper abdominal area

Fig. 14

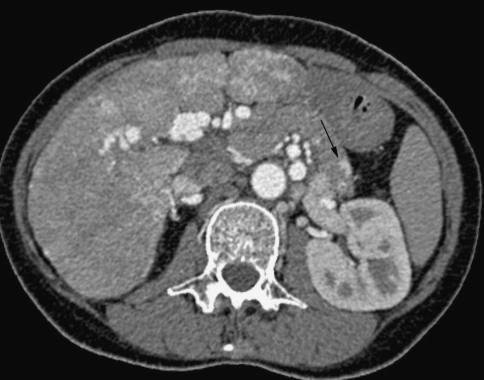

A 55-year-old woman with a history of recurrent epistaxis, intestinal bleeding, and liver involvement of HHT. Abdominal contrast-enhanced MDCT shows hepatic and pancreatic abnormalities. A 1-mm-thick axial image in the arterial phase shows clearly the pancreatic telangiectasis (arrow), hepatic left lobe enhancement heterogenicity, and hepatic artery enlargement
