. 2009 Jan;37(Database issue):D310-4.
doi: 10.1093/nar/gkn877. Epub 2008 Nov 7.

The CATH classification revisited--architectures reviewed and new ways to characterize structural divergence in superfamilies

Alison L Cuff  1 , Ian Sillitoe, Tony Lewis, Oliver C Redfern, Richard Garratt, Janet Thornton, Christine A Orengo
Affiliations

The CATH classification revisited--architectures reviewed and new ways to characterize structural divergence in superfamilies

Alison L Cuff et al. Nucleic Acids Res. 2009 Jan.

Abstract

The latest version of CATH (class, architecture, topology, homology) (version 3.2), released in July 2008 (http://www.cathdb.info), contains 114,215 domains, 2178 Homologous superfamilies and 1110 fold groups. We have assigned 20,330 new domains, 87 new homologous superfamilies and 26 new folds since CATH release version 3.1. A total of 28,064 new domains have been assigned since our NAR 2007 database publication (CATH version 3.0). The CATH website has been completely redesigned and includes more comprehensive documentation. We have revisited the CATH architecture level as part of the development of a 'Protein Chart' and present information on the population of each architecture. The CATHEDRAL structure comparison algorithm has been improved and used to characterize structural diversity in CATH superfamilies and structural overlaps between superfamilies. Although the majority of superfamilies in CATH are not structurally diverse and do not overlap significantly with other superfamilies, approximately 4% of superfamilies are very diverse and these are the superfamilies that are most highly populated in both the PDB and in the genomes. Information on the degree of structural diversity in each superfamily and structural overlaps between superfamilies can now be downloaded from the CATH website.

PubMed Disclaimer

Figures

Figure 1.
Figure 1.

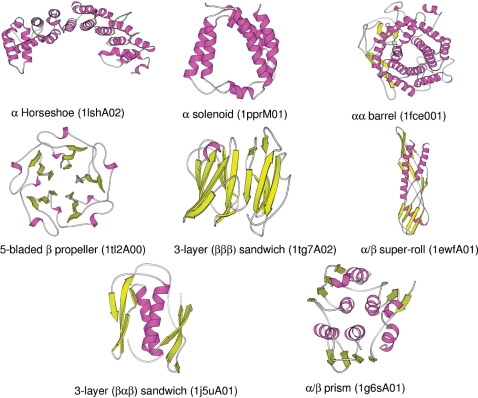

Some of the architectures new to CATH since 1997.
Figure 2.
Figure 2.

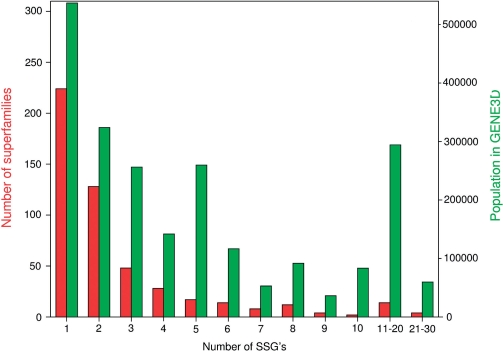

Relationship between the degree of structural diversity (measured by the number of SSGs) and population of the superfamilies in the genomes (number of sequences).
Figure 3.
Figure 3.

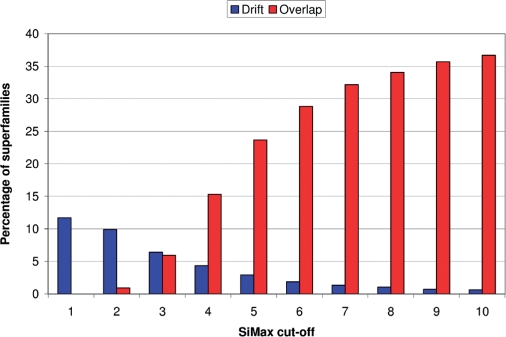

Plot showing the percentage of superfamilies that overlap (red) and show structural diversity, or drift (>5 SSG's) (blue) for different SiMAX cuff-offs.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

See all "Cited by" articles

References

    1. Orengo CA, Michie AD, Jones DT, Swindells MB, Thornton JM. CATH: A Hierarchic Classification of Protein Domain Structures. Structure. 1997;5:1093–1108. - PubMed
    1. Garratt RC, Orengo CA. The Protein Chart. Germany: Wiley-VCH; 2007. ISBN: 978-3-527-31963-3.
    1. Taylor WR. A ‘periodic table’ for protein structures. Nature. 2002;416:657–660. - PubMed
    1. Hofmann E, Wrench PM, Sharples FP, Hiller RG, Welte W, Diederichs K. Structural basis of light harvesting by carotenoids: peridinin-chlorophyll-protein from Amphidinium carterae. Science. 1996;272:1788–1791. - PubMed
    1. Rojas AL, Nagem RA, Neustroev KN, Arand M, Adamska M, Eneyskaya EV, Kulminskaya AA, Garratt RC, Golubev AM, Polikarpov I. Crystal structures of beta-galactosidase from Penicillium sp. and its complex with galactose. J. Mol. Biol. 2004;343:1281–1292. - PubMed
