Comparative Study
. 2009 Dec;33(6):1531-6.
doi: 10.1007/s00264-009-0729-x. Epub 2009 Feb 14.

Metal release and corrosion effects of modular neck total hip arthroplasty

J Philippe Kretzer  1 , Eike Jakubowitz, Michael Krachler, Marc Thomsen, Christian Heisel
Affiliations
Comparative Study

Metal release and corrosion effects of modular neck total hip arthroplasty

J Philippe Kretzer et al. Int Orthop. 2009 Dec.

Abstract
in English, French

Modular neck implants are an attractive treatment tool in total hip replacement. Concerns remain about the mechanical stability and metal ion release caused by the modular connection. Five different implant designs were investigated in an experimental set-up. In vivo conditions were simulated and the long-term titanium release was measured. Finally, the modular connections were inspected for corrosion processes and signs of fretting. No mechanical failure or excessive corrosion could be identified for the implants tested. The titanium releases measured were extremely low compared to in vivo and in vitro studies and were not in a critical range.

Dans les prothèses totales de hanche l’utilisation d’implants avec col modulaire est d’une utilisation fréquente et pratique. Néanmoins, cette utilisation laisse persister des doutes sur la stabilité mécanique et sur le relargage des ions métalliques. 5 différents implants ont été étudiés en reproduisant les conditions in vivo, en mesurant le relargage de titane et en évaluant la corrosion et les lésions du col. Ce travail n’a pas permis de mettre en évidence d’échec secondaire à une corrosion excessive, et les taux de titane sont restés extrêmement bas dans les limites de l’acceptable.

PubMed Disclaimer

Figures

Fig. 1
Fig. 1

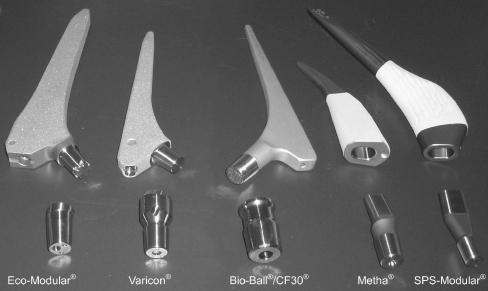

Implant designs investigated. The oval modular taper of the two designs on the right side are female connections
Fig. 2
Fig. 2

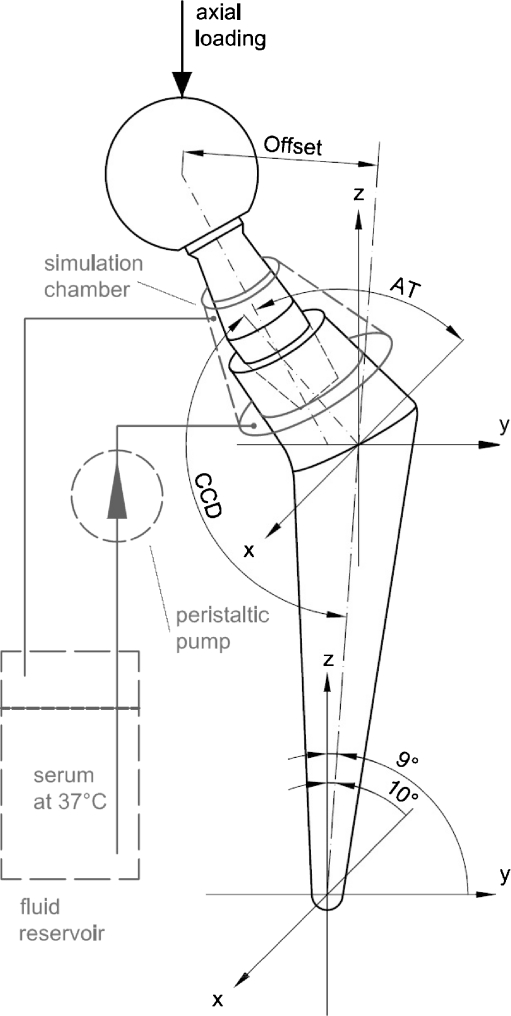

Alignment of the stem and modular neck relative to spatial coordinates. The peristaltic pump continuously circulates serum between the fluid reservoir and simulation chamber
Fig. 3
Fig. 3

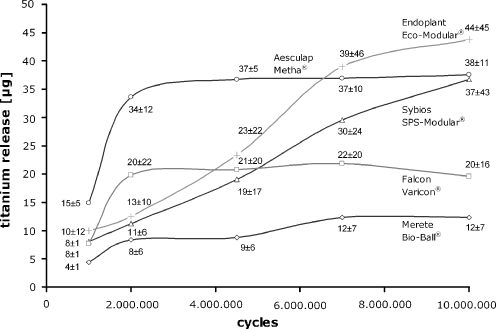

Titanium release of the five implant designs during the course of simulation
Fig. 4
Fig. 4
Fretting scars run perpendicular to machine lines
See this image and copyright information in PMC

References

    1. Aldinger PR, Thomsen M, Mau H, Ewerbeck V, Breusch SJ. Cementless Spotorno tapered titanium stems: excellent 10–15-year survival in 141 young patients. Acta Orthop Scand. 2003;74:253–258. doi: 10.1080/00016470310014157. - DOI - PubMed
    1. Bachnick M, Hasenpusch M, Richter H, Boenick U. Effect of hardness and surface quality of metal cones on fracture load of ceramic ball heads of hip endoprostheses (in German) Biomed Tech (Berl) 1994;39:302–306. doi: 10.1515/bmte.1994.39.12.302. - DOI - PubMed
    1. Bergmann G, Deuretzbacher G, Heller M, Graichen F, Rohlmann A, Strauss J, Duda GN. Hip contact forces and gait patterns from routine activities. J Biomech. 2001;34:859–871. doi: 10.1016/S0021-9290(01)00040-9. - DOI - PubMed
    1. Bobyn JD, Tanzer M, Krygier JJ, Dujovne AR, Brooks CE. Concerns with modularity in total hip arthroplasty. Clin Orthop Relat Res. 1994;298:27–36. - PubMed
    1. Coen N, Kadhim MA, Wright EG, Case CP, Mothersill CE. Particulate debris from a titanium metal prosthesis induces genomic instability in primary human fibroblast cells. Br J Cancer. 2003;88:548–552. doi: 10.1038/sj.bjc.6600758. - DOI - PMC - PubMed
