Randomized Controlled Trial
. 2009 Mar;41(1):28-31.

Optimizing circuit design using a remote-mounted perfusion system

Bradley Kulat  1 , Neale Zingle
Affiliations
Randomized Controlled Trial

Optimizing circuit design using a remote-mounted perfusion system

Bradley Kulat et al. J Extra Corpor Technol. 2009 Mar.

Abstract

There is a considerable amount of literature published on the detrimental effects of banked blood exposure in cardiac surgery. Likewise, in an effort to minimize blood exposure, many of these articles involve modifications to the heart-lung machine or its components to reduce priming volumes, therefore decreasing the need for banked blood administration caused by hemodilution. In this study, using Terumo's System 1 Advanced Heart-Lung machine, all the pump heads were remotely mounted off the pump base closer to the patient and to all the pump components. For example, cardioplegia, ultrafiltration, and vent and cardiotomy lines are now close to the oxygenator and to the patient, minimizing any excess tubing length. Cardiopulmonary bypass (CPB) blood use and priming volumes were compared before and after changing from a fixed perfusion system to a remote-mounted perfusion system using the same disposables and protocols. The mean differences of pump prime and CPB blood use were compared in four weight classes. In the 8- to 12-kg class, blood use was reduced from 1.84 +/- 0.55 to 1.10 +/- 0.36 units. Priming volume was reduced from 751.2 +/- 68.4 to 360.4 +/- 51.7 mL. In the 13- to 20-kg class, blood use was reduced from 1.80 +/- 0.42 to 1.04 +/- 0.28 units. Priming volume was reduced from 829.6 +/- 69.6 to 476. +/- 81.4 mL. In the 21- to 40-kg class, blood use was reduced from 1.60 +/- 0.57 to 0.92 +/- 0.49 units. Priming volume was reduced from 994.0 +/- 137.2 to 713.6 +/- 121.8 mL. In the 41+-kg class, blood use was reduced from 1.62 +/- 0.88 to 0.42 +/- 0.54 units. Priming volume reduced from 1306.3 +/- 112.9 to 875.5 +/- 96.6 mL. In conclusion, using a remote-mounted perfusion system resulted in reducing priming volumes and also significantly decreased the need for banked blood, subsequently saving the patient excessive exposure to banked blood.

PubMed Disclaimer

Conflict of interest statement

The senior author has stated that authors have reported no material, financial, or other relationship with any healthcare-related business or other entity whose products or services are discussed in this paper.

Figures

Figure 1.
Figure 1.

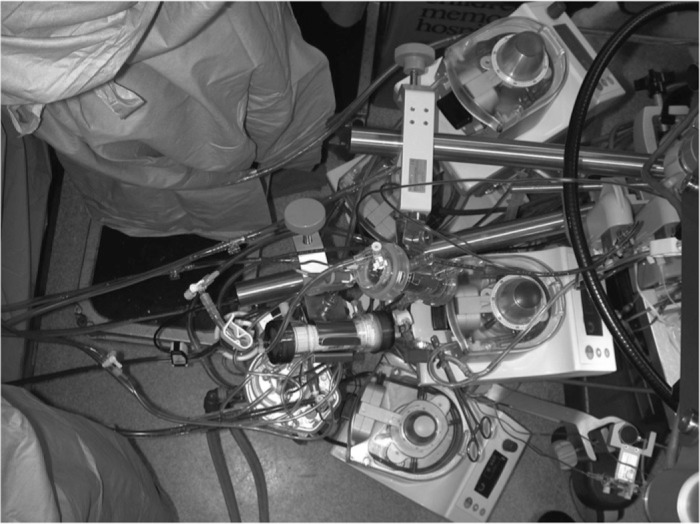

Remote-mounted pump system in close proximity to patient.
Figure 2.
Figure 2.

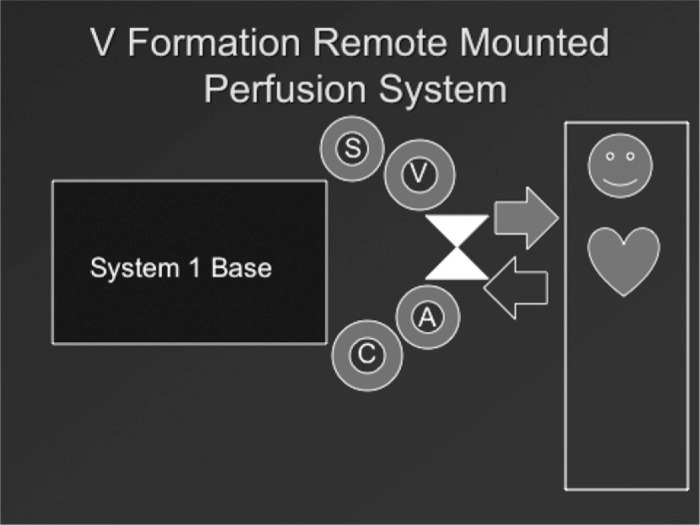

Drawing of remote-mounted perfusion system. A, arterial pump head; C, cardioplegia pump head; V, vent pump head; S, dual cardiotomy suction pump head.
Figure 3.
Figure 3.

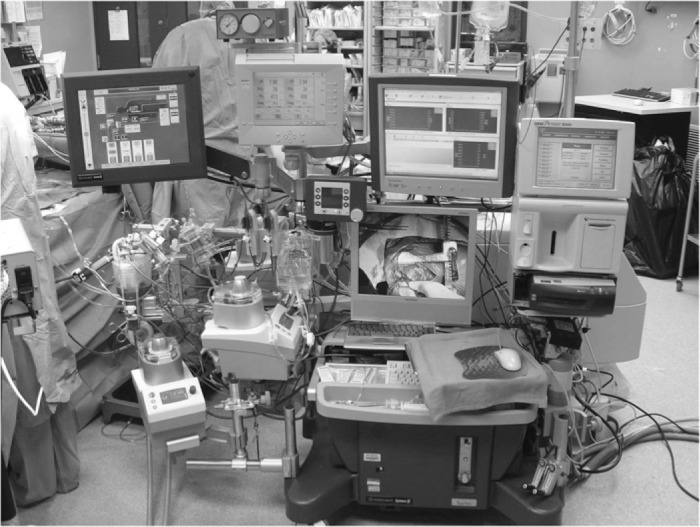

View of remote-mounted components.
See this image and copyright information in PMC
