Comment
. 2009 Sep;134(3):259-61; author reply 263-5.
doi: 10.1085/jgp.200910222.

About a new method to measure fractional Ca2+ currents through ligand-gated ion channels

Sergio Fucile, Francesca Grassi
Comment

About a new method to measure fractional Ca2+ currents through ligand-gated ion channels

Sergio Fucile et al. J Gen Physiol. 2009 Sep.
No abstract available

PubMed Disclaimer

Figures

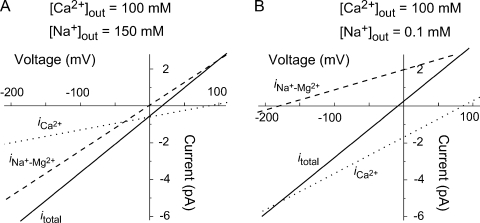

Figure 1.
Figure 1.
Decomposition of experimental I-V curves for the total current into the components carried by Ca2+ and by all other ions, assuming an ohmic behavior of all currents. In both A and B, ECa2+ = 86 mV, calculated using the Nernst equations with [Ca2+]o = 100 mM and [Ca2+]i = 0.1 mM (i.e., 0.1% of the main cation, a reasonable upper bound for the value). Total current (itotal; solid lines) has a slope conductance of 30.6 pS (as in Fig. 15 of Elenes et al., 2009). (A) With [Ca2+]o = 100 mM and [Na+]o = 150 mM, itotal has a reversal potential of +18 mV and an amplitude of −0.6 pA at 0 mV (Elenes et al., 2009). The pure Ca2+ current (iCa2+; dotted line) is the line that passes through this experimental point and is 0 at ECa2+, which yields a slope conductance of 7 pS. The lumped current carried by all other ions (iNa+−Mg2+; dashed line) has been calculated by subtraction (itotal− iCa2+) and reverts at 0 mV as expected. (B) When NaCl is not included into the external solution, we can estimate that [Na+]o = 0.1 mM and the Nernst equation yields ENa+−Mg2+ = −180 mV (neglecting Mg2+ for the sake of simplicity). We assumed that itotal has a reversal potential of −10 mV (Villarroel and Sakmann, 1996). iCa2+ was calculated imposing iCa2+ = itotal at −180 mV and iCa2+ = 0 at 86 mV, and has a slope conductance of 20 pS. iNa+−Mg2+ reverts at ENa+−Mg2+ = −180 mV.
See this image and copyright information in PMC

Comment on

Similar articles

See all similar articles

References

    1. Adams D.J., Dwyer T.M., Hille B. 1980. The permeability of endplate channels to monovalent and divalent metal cations.J. Gen. Physiol. 75:493–510 - PMC - PubMed
    1. Bregestovski P.D., Miledi R., Parker I. 1979. Calcium conductance of acetylcholine-induced endplate channels.Nature. 279:638–639 - PubMed
    1. Decker E.R., Dani J.A. 1990. Calcium permeability of the nicotinic acetylcholine receptor: the single-channel calcium influx is significant.J. Neurosci. 10:3413–3420 - PMC - PubMed
    1. Elenes S., Decker M., Cymes G.D., Grosman C. 2009. Decremental response to high-frequency trains of acetylcholine pulses but unaltered fractional Ca2+ currents in a panel of “slow-channel syndrome” nicotinic receptor mutants.J. Gen. Physiol. 133:151–169 - PMC - PubMed
    1. Fucile S., Sucapane A., Grassi F., Eusebi F., Engel A.G. 2006. The human adult subtype ACh receptor channel has high Ca2+ permeability and predisposes to endplate Ca2+ overloading.J. Physiol. 573:35–43 - PMC - PubMed
