Learning partially directed functional networks from meta-analysis imaging data

Jane Neumann  1 , Peter T Fox, Robert Turner, Gabriele Lohmann
Affiliations

Learning partially directed functional networks from meta-analysis imaging data

Jane Neumann et al. Neuroimage. .

Abstract

We propose a new exploratory method for the discovery of partially directed functional networks from fMRI meta-analysis data. The method performs structure learning of Bayesian networks in search of directed probabilistic dependencies between brain regions. Learning is based on the co-activation of brain regions observed across several independent imaging experiments. In a series of simulations, we first demonstrate the reliability of the method. We then present the application of our approach in an extensive meta-analysis including several thousand activation coordinates from more than 500 imaging studies. Results show that our method is able to automatically infer Bayesian networks that capture both directed and undirected probabilistic dependencies between a number of brain regions, including regions that are frequently observed in motor-related and cognitive control tasks.

PubMed Disclaimer

Figures

Figure 1
Figure 1

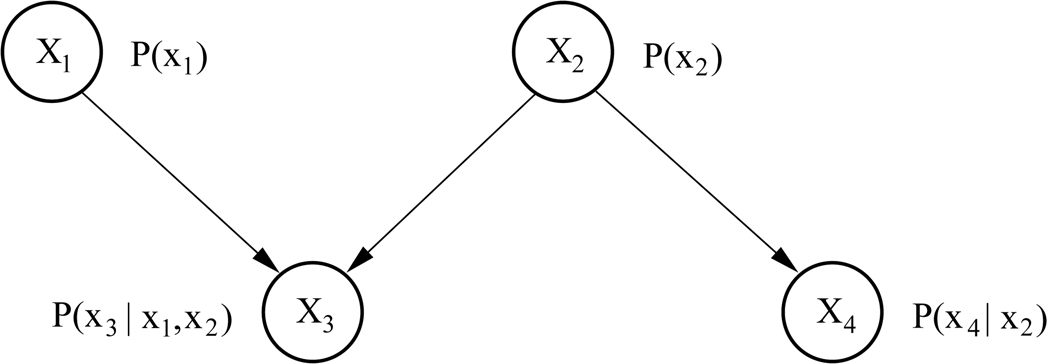

A simple Bayesian network representing four variables.
Figure 2
Figure 2

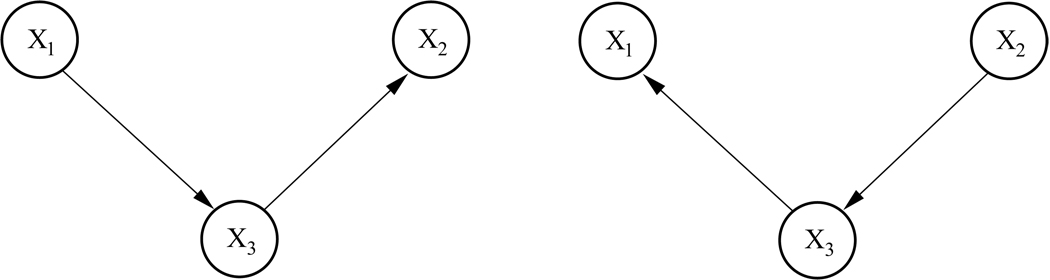

Two Markov-equivalent networks describing interdependencies between three variables.
Figure 3
Figure 3

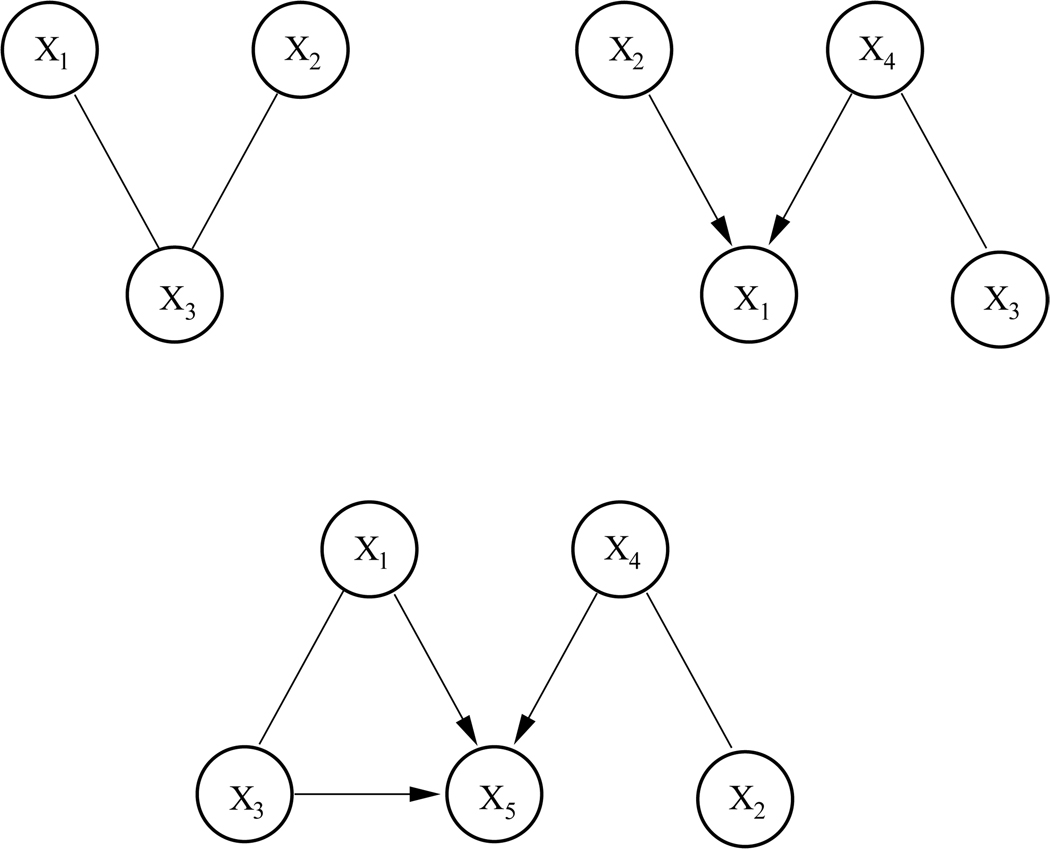

Equivalence classes (CPDAGs) of three randomly generated small Bayesian networks.
Figure 4
Figure 4

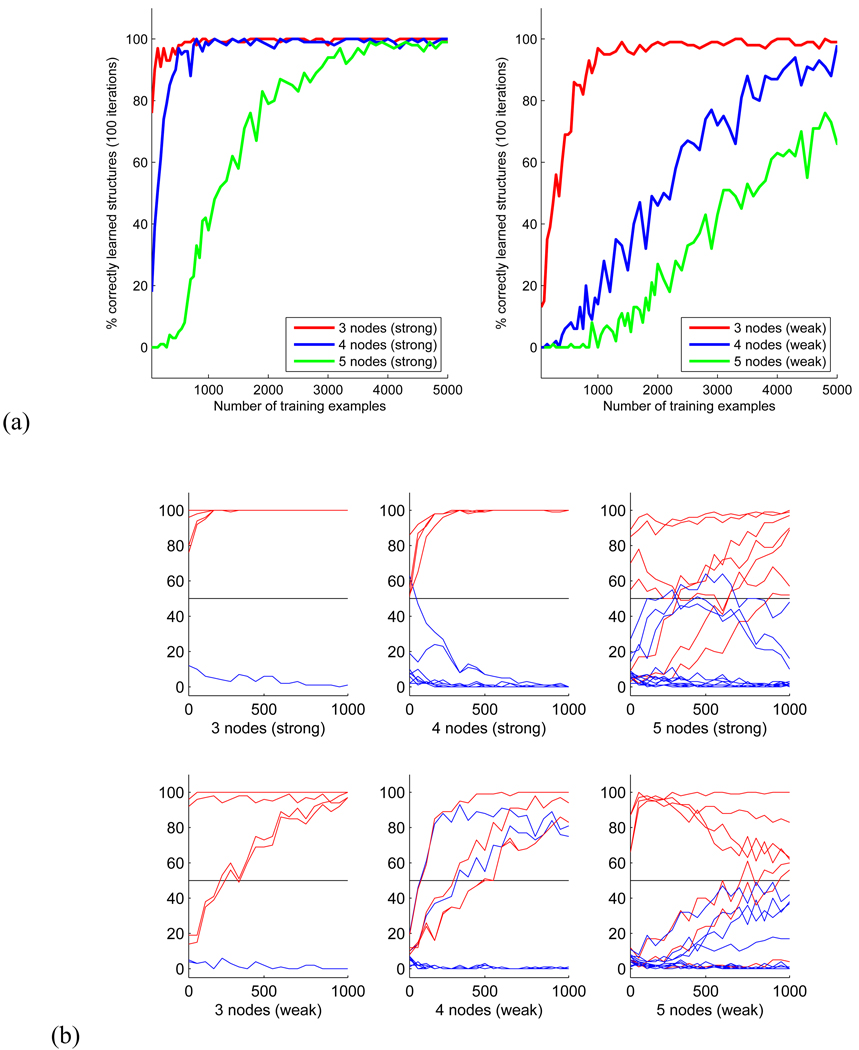

(a) Size of training data sets required for learning a graph structure with up to 5 nodes. (b) Number of times each network connection was detected out of 100 trials of structure learning from randomly generated networks with 3 to 5 nodes. Connections belonging to the correct CPDAG are plotted in red.
Figure 5
Figure 5

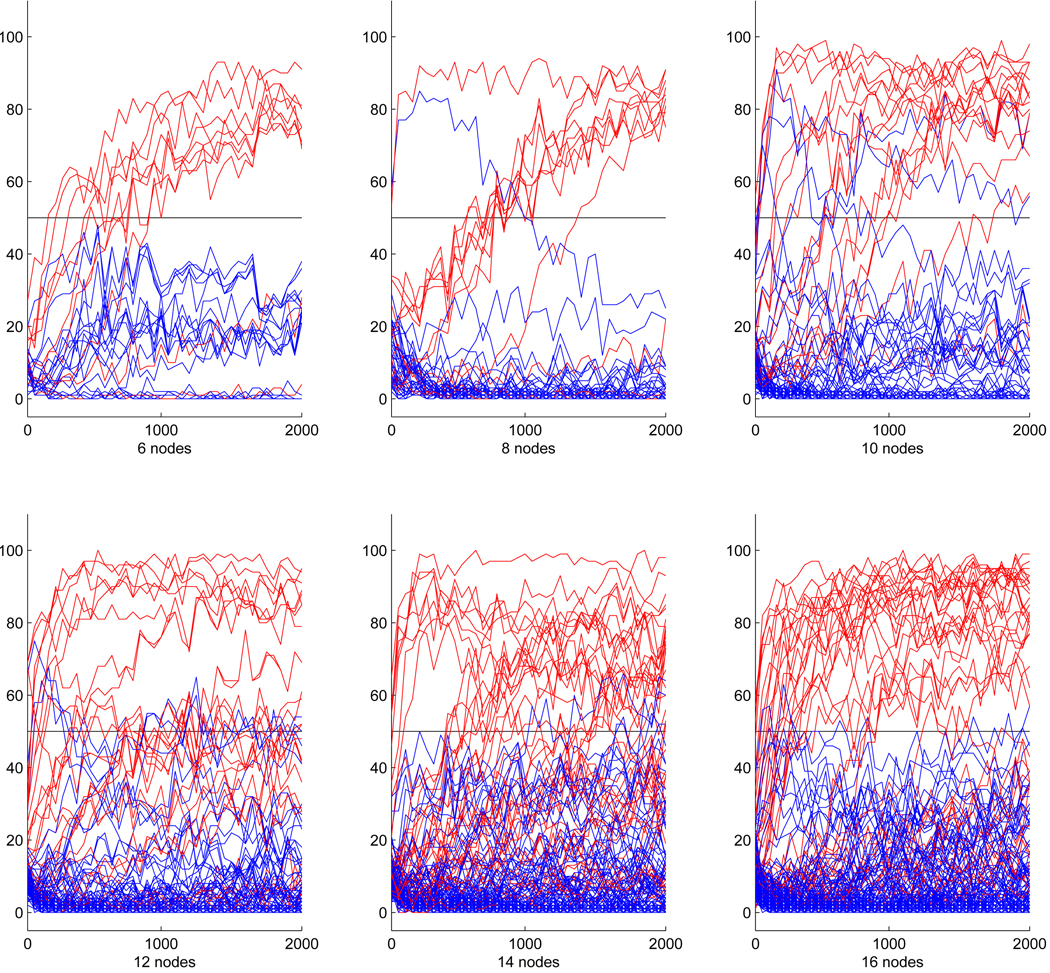

Number of times each network connection was detected out of 100 trials of structure learning from randomly generated networks with up to 16 nodes. Connections belonging to the correct CPDAG are plotted in red.
Figure 6
Figure 6

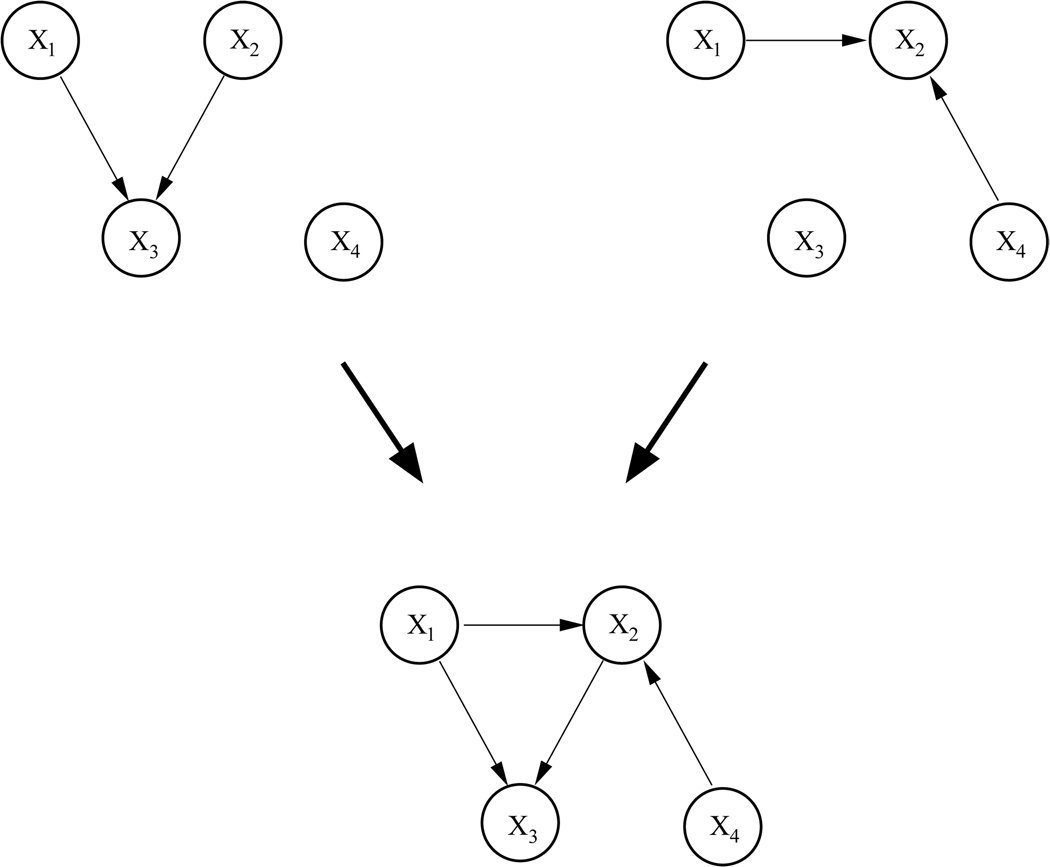

Top: Two Bayesian networks encoding non-contradictory statistical dependencies between 4 nodes. Bottom: ’Mixture’ of the two networks.
Figure 7
Figure 7

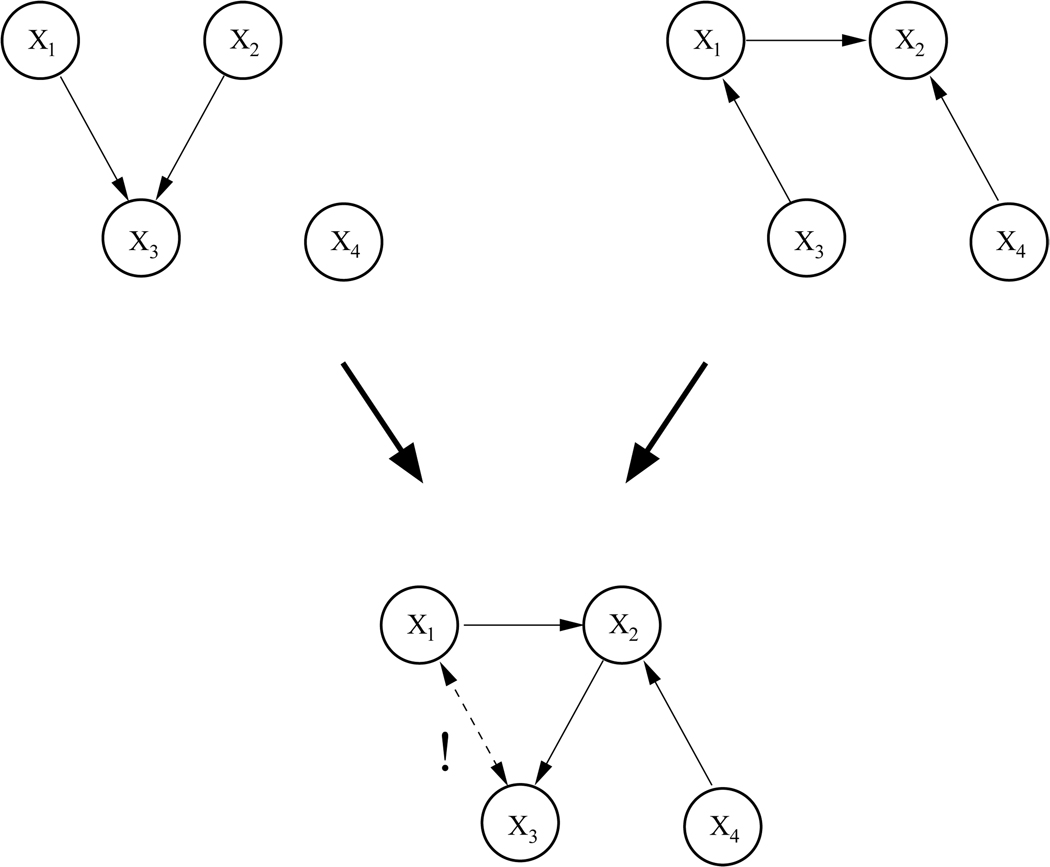

Top: Two Bayesian networks encoding partially contradictory statistical dependencies between 4 nodes. Bottom: ’Mixing’ the two networks results in a graph that does not meet the requirements of a DAG.
