Reduction of CPR artifacts in the ventricular fibrillation ECG by coherent line removal

Abstract

Background: Interruption of cardiopulmonary resuscitation (CPR) impairs the perfusion of the fibrillating heart, worsening the chance for successful defibrillation. Therefore ECG-analysis during ongoing chest compression could provide a considerable progress in comparison with standard analysis techniques working only during "hands-off" intervals.

Methods: For the reduction of CPR-related artifacts in ventricular fibrillation ECG we use a localized version of the coherent line removal algorithm developed by Sintes and Schutz. This method can be used for removal of periodic signals with sufficiently coupled harmonics, and can be adapted to specific situations by optimal choice of its parameters (e.g., the number of harmonics considered for analysis and reconstruction). Our testing was done with 14 different human ventricular fibrillation (VF) ECGs, whose fibrillation band lies in a frequency range of [1 Hz, 5 Hz]. The VF-ECGs were mixed with 12 different ECG-CPR-artifacts recorded in an animal experiment during asystole. The length of each of the ECG-data was chosen to be 20 sec, and testing was done for all 168 = 14 x 12 pairs of data. VF-to-CPR ratio was chosen as -20 dB, -15 dB, -10 dB, -5 dB, 0 dB, 5 dB and 10 dB. Here -20 dB corresponds to the highest level of CPR-artifacts.

Results: For non-optimized coherent line removal based on signals with a VF-to-CPR ratio of -20 dB, -15 dB, -10 dB, -5 dB and 0 dB, the signal-to-noise gains (SNR-gains) were 9.3 +/- 2.4 dB, 9.4 +/- 2.4 dB, 9.5 +/- 2.5 dB, 9.3 +/- 2.5 dB and 8.0 +/- 2.7 (mean +/- std, n = 168), respectively. Characteristically, an original VF-to-CPR ratio of -10 dB, corresponds to a variance ratio var(VF):var(CPR) = 1:10. An improvement by 9.5 dB results in a restored VF-to-CPR ratio of -0.5 dB, corresponding to a variance ratio var(VF):var(CPR) = 1:1.1, the variance of the CPR in the signal being reduced by a factor of 8.9.

Discussion: The localized coherent line removal algorithm uses the information of a single ECG channel. In contrast to multi-channel algorithms, no additional information such as thorax impedance, blood pressure, or pressure exerted on the sternum during CPR is required. Predictors of defibrillation success such as mean and median frequency of VF-ECGs containing CPR-artifacts are prone to being governed by the harmonics of the artifacts. Reduction of CPR-artifacts is therefore necessary for determining reliable values for estimators of defibrillation success.

Conclusions: The localized coherent line removal algorithm reduces CPR-artifacts in VF-ECG, but does not eliminate them. Our SNR-improvements are in the same range as offered by multichannel methods of Rheinberger et al., Husoy et al. and Aase et al. The latter two authors dealt with different ventricular rhythms (VF and VT), whereas here we dealt with VF, only. Additional developments are necessary before the algorithm can be tested in real CPR situations.

Figure 1

This figure illustrates the way in which a first estimator for the coherent line removal algorithm is chosen. The function is displayed for an ECG-signal s = s(t) containing CPR-artifacts. The optimal estimator for the CPR-frequency is taken as the frequency which maximizes this function. Here f is an arbitrary frequency and (kf), k = 2,3, ..., M, are its harmonics. The function ŝ = ŝ(f) is the Fourier transform of the ECG-signal s = s(t) and |ŝ(f)|² is the powerspectrum. In the present example the optimal estimator f₀ for the CPR-frequency is f₀ = 1.66 Hz.

Figure 2

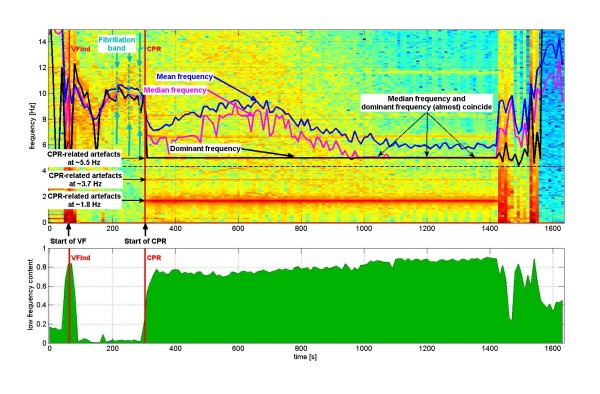

Windowed Fourier transform of ECG for one particular chosen VF-experiment in a pig model. The power (in units of decibel [dB]) is shown in a color coded spectrogram (upper panel), with 'red' representing high power, 'yellow' intermediate power and 'blue' low power. Time [sec] is given on the x-axis, frequency [Hz] on the y-axis. Fibrillation starts at ~80 sec, and cardiopulmonary resuscitation (CPR) after ~310 sec. CPR is performed with approximately ~110/min = ~1.8 Hz. The respective artifacts at ~1.8 Hz are clearly visible in the spectrogram, together with the harmonics ~3.7 Hz, ~5.5 Hz etc. The "fibrillation band" corresponding to VF-ECG during the first phase of the experiment shows the typical "S-form", starting at ~10 Hz, decreasing to ~8 Hz, and increasing again during the first 240 sec of VF. Afterwards, the "fibrillation band" would continuously decrease if no CPR were performed. CPR increases the frequency range of the "fibrillation band". Three different parameters are computed for the VF-ECG with respect to the frequency window [4.33 Hz, 30 Hz]: mean frequency (blue), median frequency (magenta), and dominant frequency (black). The lower frequency of the frequency window (= 4.33 Hz) is shown as a straight dashed black line. Before start of CPR, the mean, median and dominant frequency follow the "fibrillation band". After start of CPR, the dominant frequency remains at the second harmonic of CPR-frequency at ~5.5 Hz. In addition (after start of CPR), the mean and median frequency do not at all follow the "fibrillation band" but are rather influenced by the harmonics of the CPR-artifacts. The lower panel of the figure shows the relative power in the frequency window [0.33 Hz, 2 Hz] as compared to the frequency window [0.33, 30 Hz], denoted as the "low frequency content" of the signal.

Figure 3

Windowed Fourier transform with the same basic ECG as used in Fig 2, but now for the VF-ECG purged from CPR-artifacts by coherent line removal and with a frequency window of [2 Hz, 30 Hz] for determination of mean, median, dominant and 95%-edge frequency. The CPR-related artifacts are barely visible in the spectrogram. The mean and median frequency follow the "fibrillation band" rather well, apart from the last stage of the experiment (> 1100 sec), where no "fibrillation band" is visible any more (probably due to asystole). The lower panel indicates that the relative power in the frequency window [0.33 Hz, 2.2 Hz] as compared to the frequency window [0.33, 30 Hz] is much smaller now than in Fig 2.

Figure 4

Windowed Fourier transform with the same basic ECG-data as in Figs 2 and 3. The median frequency of the original VF-ECG (black) is compared to the median frequency of the VF-ECG purged from CPR-artifacts (magenta). In addition, the VF-to-CPR ratio [dB] is shown as a green line (with y-axis tickmarks to the right of the Fig). Here the VF-to-CPR ratio is estimated from decomposition of the ECG into VF and CPR by coherent line removal. This procedure also leads to a VF-to-CPR ratio when no CPR is performed, even though rather high (~15 dB). Typical estimated values for VF-to-CPR ratio during CPR are from -15 dB to -5 dB.

Figure 5

Illustration of coherent line removal. Here human VF-ECG data (without CPR-related artifacts) have been mixed with ECG containing CPR-artifacts only at a VF-to-CPR ratio of -10 dB, with subsequent purging of CPR-artifacts by coherent line removal. The original CPR is shown in red, whereas the CPR-ECG reconstructed by coherent line removal is shown in blue (the criterion being optimal error variance). The improvement in signal-to-noise ratio is 7.3 dB. In this particular example, the human ECG mixed with CPR-ECG had a "fibrillation band" in the frequency range [1 Hz, 5 Hz], which is expected to be difficult to separate from CPR-related artifacts with ~1.8 Hz and harmonics at ~3.7 Hz, ~5.5 Hz etc.
