Estimation of inferential uncertainty in assessing expert segmentation performance from STAPLE

Abstract

The evaluation of the quality of segmentations of an image, and the assessment of intra- and inter-expert variability in segmentation performance, has long been recognized as a difficult task. For a segmentation validation task, it may be effective to compare the results of an automatic segmentation algorithm to multiple expert segmentations. Recently an expectation-maximization (EM) algorithm for simultaneous truth and performance level estimation (STAPLE) was developed to this end to compute both an estimate of the reference standard segmentation and performance parameters from a set of segmentations of an image. The performance is characterized by the rate of detection of each segmentation label by each expert in comparison to the estimated reference standard. This previous work provides estimates of performance parameters,but does not provide any information regarding the uncertainty of the estimated values. An estimate of this inferential uncertainty, if available, would allow the estimation of confidence intervals for the values of the parameters. This would facilitate the interpretation of the performance of segmentation generators and help determine if sufficient data size and number of segmentations have been obtained to precisely characterize the performance parameters. We present a new algorithm to estimate the inferential uncertainty of the performance parameters for binary and multi-category segmentations. It is derived for the special case of the STAPLE algorithm based on established theory for general purpose covariance matrix estimation for EM algorithms. The bounds on the performance parameters are estimated by the computation of the observed information matrix.We use this algorithm to study the bounds on performance parameters estimates from simulated images with specified performance parameters, and from interactive segmentations of neonatal brain MRIs. We demonstrate that confidence intervals for expert segmentation performance parameters can be estimated with our algorithm. We investigate the influence of the number of experts and of the segmented data size on these bounds, showing that it is possible to determine the number of image segmentations and the size of images necessary to achieve a chosen level of accuracy in segmentation performance assessment.

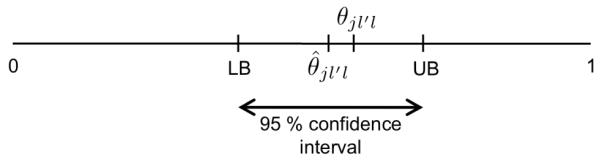

Fig. 1. Illustration of the confidence interval on one parameter

We aim at computing the lower (LB) and upper bound (UB) for each parameter ${\widehat{\theta }}_{j{l}^{\prime }l}$ estimated by STAPLE. In the case of a known ground truth (experiments on simulated data), this range can be compared to the true value θ_jl’l to check for the accuracy of parameter estimation in STAPLE.

Fig. 2. Database of Simulated Images

Simulated images used for the validation of our confidence intervals estimation method : (a): original segmentation, (b): simulated segmentation of group 1 (sensitivity: 0.7, specificity: 0.8), (c): simulated segmentation of group 2 (sensitivity: 0.9, specificity: 0.9).

Fig. 3. Illustration of one image from the database

Coronal slice of (a) newborn T1 MRI and (b-f) its repeated manual segmentation in 5 classes done by one expert (cortical gray matter - grey, sub-cortical gray matter - white, unmyelinated white matter - red, myelinated white matter - orange - and CSF - blue). Other images in the database were similar to this specific example.

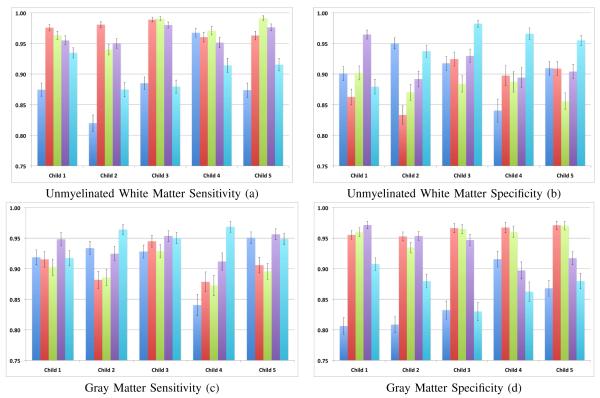

Fig. 4. Confidence bounds of the sensitivity and specificity parameters

Expert parameters and their confidence intervals ((a, c): Sensitivity, (b, d): Specificity) for the white matter segmentation (a, b) and the gray matter segmentation (c, d). Each child segmentations were treated separately, each column for each child represents an expert’s segmentation. The results on five datasets (each column of each graph) show that the confidence intervals of the estimated sensitivities and specificities are very tight.

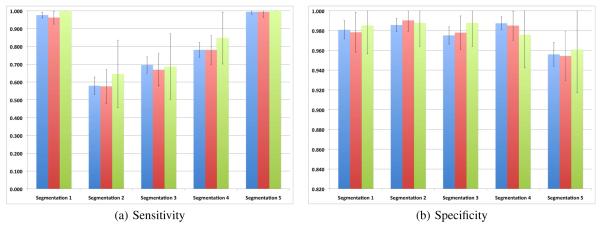

Fig. 5. Influence of the image dimension on confidence bounds of the parameters

95 % confidence intervals on the estimated values of the sensitivity (a) and specificity (b) parameters for the image at original size (blue), subsampled once (red), and subsampled twice (green). These show a decrease in the confidence in the estimated parameters as the image is subsampled, reflecting that the confidence in the estimates decreases when the amount of available data is reduced.

Fig. 6. Influence of the number of experts on the confidence intervals of the performance parameters

Average relative confidence intervals values (in percent of the average performance parameter) as a function of the number of experts used in STAPLE. For each number of experts, all combinations of K experts among the 15 available were used to compute the average. The three curves show the results using: the whole images (blue), half of the images (red), and the upper left quarter of the images (green) to compute the STAPLE performance estimates.
