. 2010 May-Jun;56(3):194-9.
doi: 10.1097/MAT.0b013e3181d823a1.

Feasibility of in vivo pressure measurement using a pressure-tip catheter via transventricular puncture

Robert G Gray  1 , Santos E Cabreriza, T Alexander Quinn, Alan D Weinberg, Henry M Spotnitz
Affiliations

Feasibility of in vivo pressure measurement using a pressure-tip catheter via transventricular puncture

Robert G Gray et al. ASAIO J. 2010 May-Jun.

Abstract

Pressure-tip catheters (PTCs) are used to evaluate ventricular mechanics during surgical repair of congenital heart disease in children. Studies in infants require miniaturized sensors. We compared the safety and accuracy of a 2-Fr ultraminiature PTC with a 5-Fr PTC. In 10 piglets (weight 19-22 kg), a 5-Fr PTC was inserted through a 3-mm apical puncture with a #11 blade. A 20-gauge angiocatheter was inserted using a separate site. A 2-Fr PTC was threaded through the angiocatheter lumen. The angiocatheter was withdrawn, leaving the 2-Fr PTC within the left ventricle (LV). Left ventricular pressure (LVP) changes were measured during three inferior vena caval occlusions. Reliability coefficients demonstrated correlation between the 2-Fr PTC and 5-Fr PTC for LV end-diastolic pressure (0.90-0.95), peak LVP (0.92-0.99), and the maximal (0.87-0.93) and minimal (0.89-0.94) first derivatives of LVP. Bland-Altman analysis demonstrated agreement for all variables. Blood loss was trivial with pressure manipulation and catheter placement and removal. Pressure measurements using the 2-Fr PTC were accurate and comparable with those from the 5-Fr PTC. Transventricular placement of a 2-Fr PTC is feasible and should allow evaluation of ventricular mechanics during surgical repair of congenital heart disease.

PubMed Disclaimer

Figures

Figure 1
Figure 1

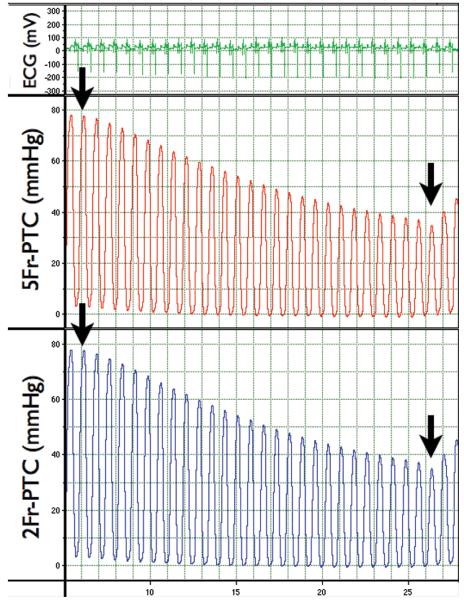

Representative simultaneous LVP recordings with 2 Fr- and 5 Fr-PTC, including electrocardiographic monitoring during acute preload reduction by IVC occlusion. The black arrows indicate the initiation and termination of IVC occlusion.
Figure 2
Figure 2

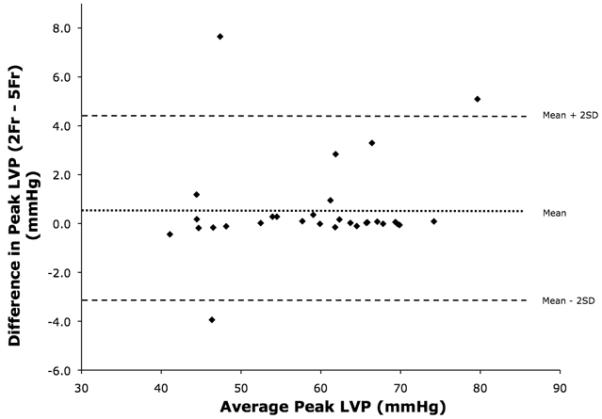

Bland-Altman plot of peak LVP.
Figure 3
Figure 3
Bland-Altman plot of LVEDP.
Figure 4
Figure 4
Bland-Altman plot of dP/dtmax.
Figure 5
Figure 5
Bland-Altman plot of dP/dtmin.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Zimmer HG, Millar HD. Technology and application of ultraminiature catheter pressure transducers. Can J Cardiol. 1998;14:1259–1266. - PubMed
    1. Rothe CF, Kim KC. Measuring systolic arterial blood pressure. Possible errors from extension tubes or disposable transducer domes. Crit Care Med. 1980;8:683–689. - PubMed
    1. Gould KL, Trenholme S, Kennedy JW. In vivo comparison of catheter manometer systems with the catheter-tip micromanometer. J Appl Physiol. 1973;34:263–267. - PubMed
    1. Colan SD. Combined fluid-filled and micromanometer-tip catheter system for high-fidelity pressure recordings in infants. Cathet Cardiovasc Diagn. 1984;10:619–623. - PubMed
    1. Aubert AE, Vrolix M, De Geest H, Van de Werf F. In vivo comparison between two tip pressure transducer systems. Int J Clin Monit Comput. 1995;12:77–83. - PubMed
