Comment
. 2010 Jun 15;588(Pt 12):2015-6.
doi: 10.1113/jphysiol.2010.192443.

Currents in space: understanding inhibitory field potentials

Iris Oren  1 , Ole Paulsen
Affiliations
Comment

Currents in space: understanding inhibitory field potentials

Iris Oren et al. J Physiol. .
No abstract available

PubMed Disclaimer

Figures

Figure 1

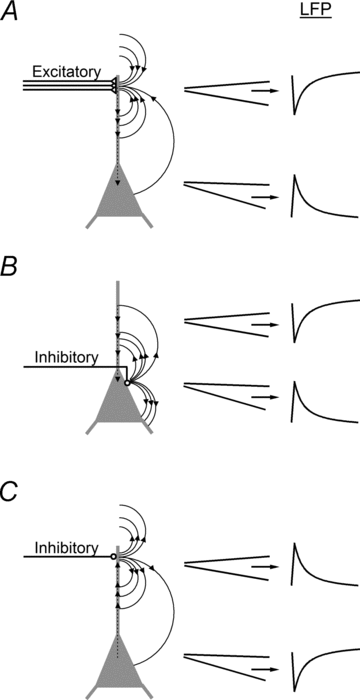

Figure 1. Synaptic input generates current sinks and sources along somato-dendritic axis
A, excitatory input to the distal dendrites results in a dendritic current sink. Passive return current (dotted line) results in a passive current source in the somatic region. Field lines indicated by continuous curves. B, inhibitory input to the soma leads to an influx of Cl− and results in a somatic current source and a passive current sink in the dendrites. C, inhibitory input to the distal dendrites results in an active dendritic current source and a passive somatic current sink. On the right are schematic diagrams of the corresponding LFP at somatic and dendritic sites. Note the similarities of the field lines and LFP in A and B.
See this image and copyright information in PMC

Comment on

References

    1. Bazelot M, Dinocourt C, Cohen I, Miles R. J Physiol. 2010;588:2077–2090. - PMC - PubMed
    1. Berger H. Arch Psychiat und Nervenkr. 1929;87:527–570.
    1. Caton R. Br Med J. 1875;2:278.
    1. Glickfeld LL, Roberts JD, Somogyi P, Scanziani M. Nat Neurosci. 2009;12:21–23. - PMC - PubMed
    1. Oren I, Hájos N, Paulsen O. J Physiol. 2010;588:785–797. - PMC - PubMed
