Precise temperature compensation of phase in a rhythmic motor pattern

Abstract

Most animal species are cold-blooded, and their neuronal circuits must maintain function despite environmental temperature fluctuations. The central pattern generating circuits that produce rhythmic motor patterns depend on the orderly activation of circuit neurons. We describe the effects of temperature on the pyloric rhythm of the stomatogastric ganglion of the crab, Cancer borealis. The pyloric rhythm is a triphasic motor pattern in which the Pyloric Dilator (PD), Lateral Pyloric (LP), and Pyloric (PY) neurons fire in a repeating sequence. While the frequency of the pyloric rhythm increased about 4-fold (Q(10) approximately 2.3) as the temperature was shifted from 7 degrees C to 23 degrees C, the phase relationships of the PD, LP, and PY neurons showed almost perfect temperature compensation. The Q(10)'s of the input conductance, synaptic currents, transient outward current (I(A)), and the hyperpolarization-activated inward current (I(h)), all of which help determine the phase of LP neuron activity, ranged from 1.8 to 4. We studied the effects of temperature in >1,000 computational models (with different sets of maximal conductances) of a bursting neuron and the LP neuron. Many bursting models failed to monotonically increase in frequency as temperature increased. Temperature compensation of LP neuron phase was facilitated when model neurons' currents had Q(10)'s close to 2. Together, these data indicate that although diverse sets of maximal conductances may be found in identified neurons across animals, there may be strong evolutionary pressure to restrict the Q(10)'s of the processes that contribute to temperature compensation of neuronal circuits.

Figure 1. Quantification of pyloric network output at different temperatures.

(A) Example extracellular nerve recordings of the pyloric rhythm at cold temperature (T = 7°C). The onset and offset delay of each neuron relative to the onset of PD neuron burst are indicated. Horizontal scale bar, 1 s, for both (A) and (B). (B) Example extracellular nerve recordings from the same preparation as in (A) but at warm temperature (T = 19°C). The same delay measurements are indicated as in (A). (C) The frequency of the pyloric rhythm plotted as a function of temperature from T = 7°C to T = 23°C (n = 7). (D) The mean phase (delay divided by cycle period) values of the pyloric rhythm plotted as a function of temperature from T = 7°C to T = 23°C (n = 7).

Figure 2. Similarity of membrane potential trajectories and IPSPs of the pyloric neurons at different temperatures.

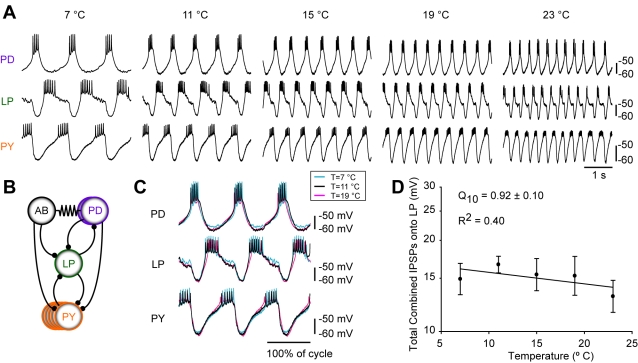

(A) Simultaneous intracellular recordings of PD, LP, and PY neurons of the pyloric rhythm at different temperatures (T = 7, 11, 15, 19, and 23°C, respectively). Vertical scale bar, −60 mV to −50 mV. Horizontal scale bar, 1 s. (B) Simplified diagram of the pyloric circuit. The pacemaker kernel is comprised of the AB neuron and two electrically coupled PD neurons. The follower cells include a single LP neuron and several electrically coupled PY neurons. Filled circles represent inhibitory chemical synapses; resistor symbols represent electrical coupling. (C) Overlays of 3 cycles of PD, LP, and PY neuron activity recorded intracellularly at three different temperature (T = 7°C, T = 11°C, T = 19°C; blue, black, pink, respectively) from the same preparation. These traces were scaled for cycle period and then superimposed upon one another. Vertical scale bar, 10 mV. Horizontal scale bar, 1 duty cycle. (D) Total IPSPs recorded in LP as a function of temperature from T = 7°C to T = 23°C (n = 7).

Figure 3. Input conductance and IPSCs as a function of temperature.

(A) Input conductance of the LP neuron as a function of temperature was measured in the presence of 10⁻⁷ M TTX and 10⁻⁵ M PTX in the passive range (−60 to −80 mV). (B) Example IPSCs of the LP neuron recorded at cold temperature (T = 7°C) at holding potentials of −60, −80, and −100 mV. The corresponding extracellular recordings of the pyloric dilator nerve (pdn) and pyloric nerve (pyn) showing the corresponding PD and PY bursts are shown schematically. Vertical scale bar, 5 nA. Horizontal scale bar, 400 ms. (C) Example IPSCs from the same LP neuron as in (A) but at warmer temperature (T = 19°C). (D) Amplitude of the total IPSC at −60 mV as a function of temperature from T = 7°C to T = 23°C (n = 7). (E) Left: Overlay of LP waveform at temperatures of 7, 19, and 23°C from the same preparation. Horizontal scale bar, 20% duty cycle. Vertical scale bar −60 to −50 mV. Right, overlay of the corresponding total IPSC of the LP neuron at −60 mV at temperatures of 7, 19, and 23°C. Horizontal scale bar, 20% duty cycle. Vertical scale bar, 4 nA.

Figure 4. Temperature dependence of I_A conductance, activation rate, and inactivation rate.

(A) Family of I_A currents at 7, 11, 15, 19, and 23°C elicited in response to depolarizing steps from −40 mV to +30 mV in 10 mV steps. (B) Pooled data for the temperature dependence of I_A peak conductance measured at +20 mV (n = 6). (C) Temperature dependence of I_A activation rates was measured as the reciprocal of the time to maximal current elicited at +20 mV (from the time of the depolarizing step). (D) Temperature dependence of I_A inactivation rates was measured as the reciprocal of the time to decay to half of the maximal current from the time of maximal current elicited at +20 mV.

Figure 5. Temperature dependence of I_h conductance and activation rate.

(A) Family of I_h currents at 11, 15, 19, and 23°C elicited in response to hyperpolarizing steps from −50 mV to −120 mV in 5 mV steps from a holding potential of −50 mV (10 mV steps shown here). (B) Pooled data for the temperature dependence of I_h peak conductance measured at −110 mV (n = 7). (C) Temperature dependence of I_h activation rates were measured as the reciprocal of the activation time constants obtained from single exponential fits of the current at −110 mV (n = 7).

Figure 6. Diverse electrical behavior of model bursting neurons in response to changing temperature.

Examples that illustrate the diversity of firing patterns of simulated model neurons in response to changing temperatures from 23.5°C to 7°C. (A) Neuron that increases burst frequency as a function of temperature. (B) Neuron that decreases burst frequency sharply from 11 to 15°C, then subsequently increases with temperature. (C) Neuron that decreases burst frequency from 11 to 23.5°C. (D) Neuron that transitions from tonic spiking to bursting behavior at 19°C. (E) Neuron that transitions from tonic spiking at 11°C, then increases burst frequency with increase in temperature. (F) Neuron that transitions from irregular spiking to bursting behavior. (G) Neuron that switches its firing pattern twice: the neuron tonically spikes at 7°C, bursts at 11°C, reverts to spiking at 15°C, and then switches to bursting at 19 and 23.5°C.

Figure 7. Effects of temperature on a population of 1304 LP models.

(A) Voltage traces of an example LP model at different temperatures, for a single cycle of simulated pyloric synaptic input. Blue traces are for a model with all Q₁₀'s set to one. Red traces are the same model, but with the Q₁₀'s for I_A and I_h set to their measured values. Lower panels show the synaptic conductances injected into the model. At each temperature, the synaptic input had a frequency as given by the linear fit in Figure 1C. The x-axis in each panel has been scaled to show the voltage versus phase. (B) LP onset phase versus temperature for the same model as shown in (A). Dashed lines here and in other panels show the bounds of the central ∼85% of the distribution of LP phase onsets observed experimentally . (C) LP onset phase versus temperature for all 1,304 models. Line shows the median LP onset phase for all models that fired at that temperature. Shaded region shows the range of the 25th to 75th percentile. (D) Blue simulations had a Q₁₀ of 1.5 for all intrinsic conductances, and the red simulations had the Q₁₀'s for I_A and I_h set to their measured values. (E) A “default” Q₁₀ of 2.0 for all intrinsic conductances. (F) Default Q₁₀ of 3.0. Note that (A), (B), and (C) are not directly comparable with (D), (E), and (F), because (A), (B), and (C) had a Q₁₀ of 1.0 for the synaptic conductances, whereas (D), (E), and (F) used the experimentally measured Q₁₀ of 2.3 for the synaptic conductances.

Figure 8. Schematic of the processes that contribute to the control of phase in the LP neuron.

LP neuron activity is terminated by inhibitory synaptic input (light blue arrow) and the onset of this synaptic input is initiated by the PY neurons (orange). PY neuron activity continues until the PD/AB neurons start to fire (purple), at which time the PD/AB neurons strongly inhibit the LP neuron. After the end of the PD/AB burst, the LP starts firing with a delay that is decreased by activation of I_h (red arrow) and increased by the activation of I_A (dark blue arrow).
