A kernelisation approach for multiple d-Hitting Set and its application in optimal multi-drug therapeutic combinations

Abstract

Therapies consisting of a combination of agents are an attractive proposition, especially in the context of diseases such as cancer, which can manifest with a variety of tumor types in a single case. However uncovering usable drug combinations is expensive both financially and temporally. By employing computational methods to identify candidate combinations with a greater likelihood of success we can avoid these problems, even when the amount of data is prohibitively large. Hitting Set is a combinatorial problem that has useful application across many fields, however as it is NP-complete it is traditionally considered hard to solve exactly. We introduce a more general version of the problem (α,β,d)-Hitting Set, which allows more precise control over how and what the hitting set targets. Employing the framework of Parameterized Complexity we show that despite being NP-complete, the (α,β,d)-Hitting Set problem is fixed-parameter tractable with a kernel of size O(αdk(d)) when we parameterize by the size k of the hitting set and the maximum number α of the minimum number of hits, and taking the maximum degree d of the target sets as a constant. We demonstrate the application of this problem to multiple drug selection for cancer therapy, showing the flexibility of the problem in tailoring such drug sets. The fixed-parameter tractability result indicates that for low values of the parameters the problem can be solved quickly using exact methods. We also demonstrate that the problem is indeed practical, with computation times on the order of 5 seconds, as compared to previous Hitting Set applications using the same dataset which exhibited times on the order of 1 day, even with relatively relaxed notions for what constitutes a low value for the parameters. Furthermore the existence of a kernelization for (α,β,d)-Hitting Set indicates that the problem is readily scalable to large datasets.

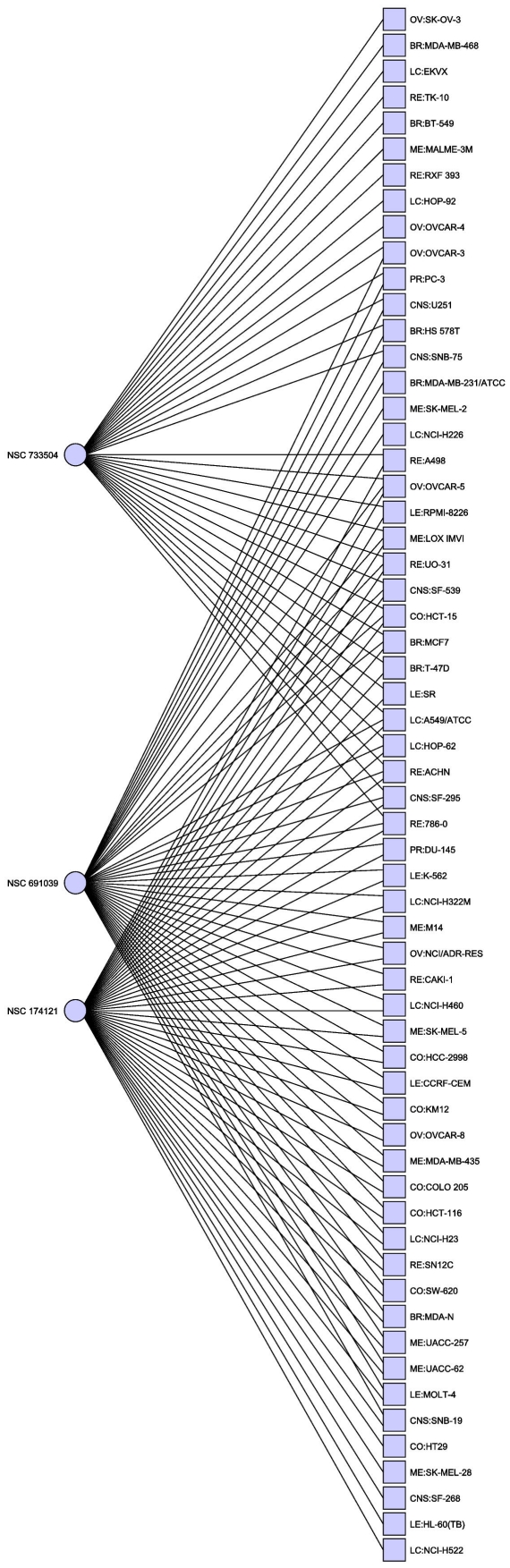

Figure 1. Minimal hitting set hitting for the NCI60 dataset.

This hitting set hits all cell lines at least once, but is further optimized to hit all target cell lines the maximal number of times. Of particular note are NSC 174121, a methotrexate derivative and NSC733504, Everolimus/Afinitor, both known anti-cancer agents.

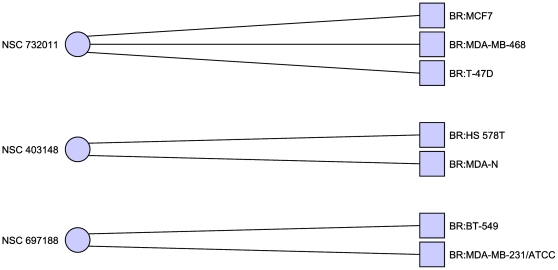

Figure 2. Minimal hitting set hitting only breast cancer cell lines.

Including the disputed MDA-N cell line. This hitting set also reveals additional structure with each drug targeting a specific, disjoint subset of the breast cancer cell lines. Only cell lines with at least one adjacent compound are shown.

Figure 3. Minimal hitting set hitting only breast cancer cell lines.

Excluding the disputed MDA-N cell line. In this case the hitting set is much less clearly separated, though two of the cell lines are now hit twice. Only cell lines with at least one adjacent compound are shown.

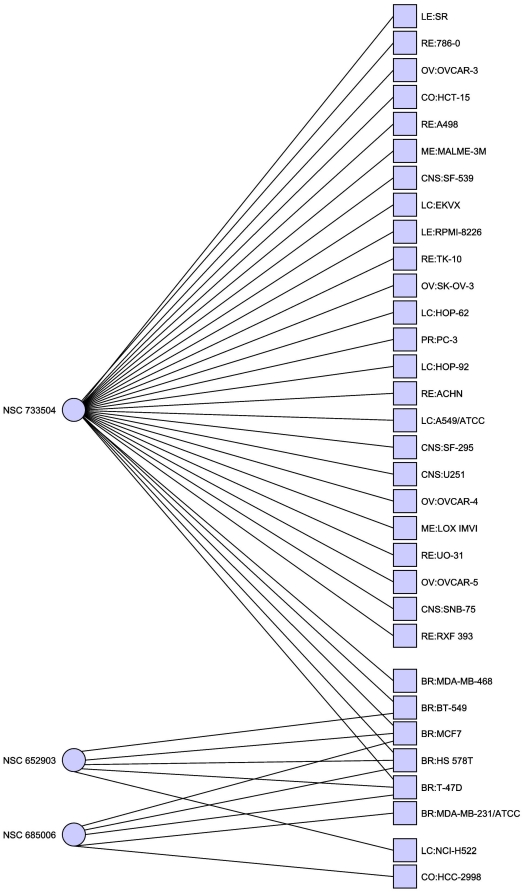

Figure 4. Minimal hitting set hitting only breast cancer cell lines.

Excluding the disputed MDA-N cell line. In this case we allow non-breast cancer cell lines to be hit at most once. By relaxing the restriction on hitting non-breast cancer cell lines, we obtain a hitting set which hits more of the breast cancer cell lines repeatedly. The trade-off being that other cell lines are also affected, increasingly the likelihood that non-cancerous cells are also affected by the treatment, as the compounds are less specific to a particular genetic signature. Only cell lines with at least one adjacent compound are shown.

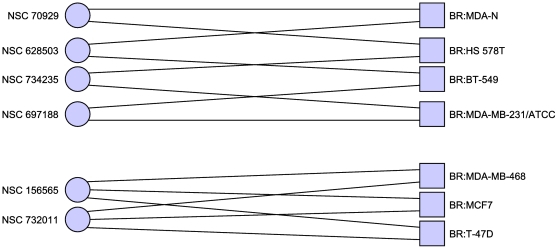

Figure 5. Minimal hitting set hitting breast cancer cell lines twice.

Including the disputed MDA-N cell line. In this case the breast cancer cell lines separate neatly into two groups, with the first group forming a cycle and the second group forming a complete bipartite graph. Only cell lines with at least one adjacent compound are shown.

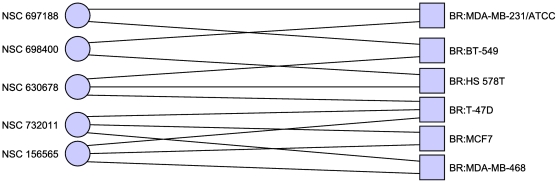

Figure 6. Minimal hitting set hitting breast cancer cell lines twice.

Excluding the disputed MDA-N cell line. Without the MDA-N cell line, the breast cancer cell lines do not separate, although the complete bipartite component is a subgraph of this graph, however we gain a greater number of hits per cell line in this case. Only cell lines with at least one adjacent compound are shown.

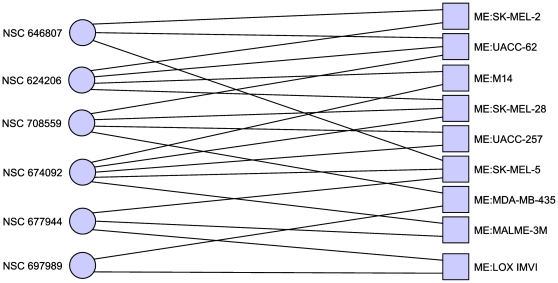

Figure 7. Minimal hitting set hitting melanoma cell lines at least 2 and no other cell lines.

This hitting set also maximizes the number of hits on the melanoma cell lines. Only cell lines with at least one adjacent compound are shown.

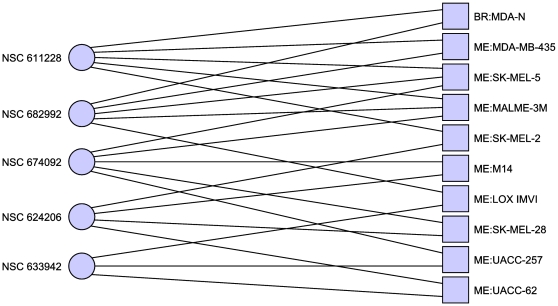

Figure 8. Minimal hitting set hitting melanoma cell lines at least 2 and no other cell lines.

Including the disputed MDA-N cell line. It is interesting to note that including MDA-N as a melanoma cell line rather than a breast cancer cell line reduces the size of the minimal hitting set from to . This hitting set also maximizes the number of hits on the melanoma cell lines. Only cell lines with at least one adjacent compound are shown.

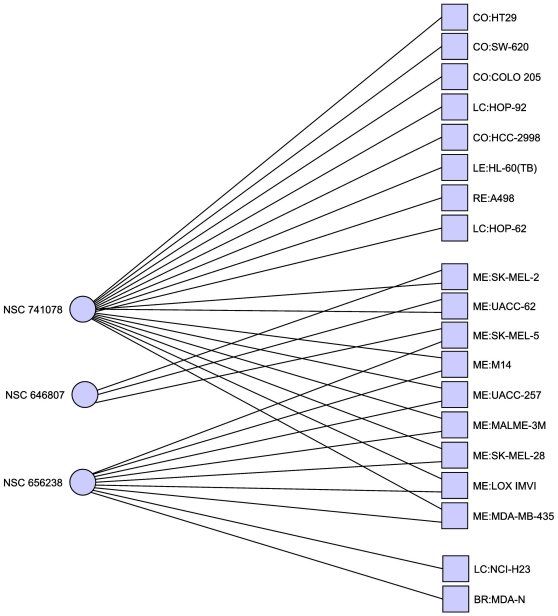

Figure 9. Minimal hitting set hitting melanoma cell lines at least 2 and all other cell lines at most once.

For this we consider MDA-N as a non-melanoma cell line, however it is also hit by the hitting set, though only once. This hitting set also maximizes the number of hits on the melanoma cell lines. Only cell lines with at least one adjacent compound are shown.

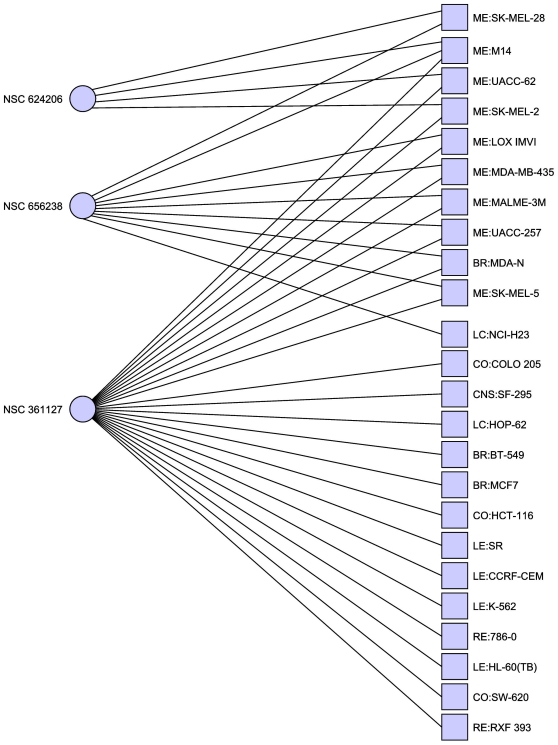

Figure 10. Minimal hitting set hitting melanoma cell lines at least 2 and all other cell lines at most once.

Including MDA-N as a melanoma cell line. The key difference with the case where we consider MDA-N to be a non-melanoma cell line is that in this case we obtain a hitting set that hits the melanoma cell lines slightly more. Only cell lines with at least one adjacent compound are shown.
