Structure of a nanobody-stabilized active state of the β(2) adrenoceptor

Abstract

G protein coupled receptors (GPCRs) exhibit a spectrum of functional behaviours in response to natural and synthetic ligands. Recent crystal structures provide insights into inactive states of several GPCRs. Efforts to obtain an agonist-bound active-state GPCR structure have proven difficult due to the inherent instability of this state in the absence of a G protein. We generated a camelid antibody fragment (nanobody) to the human β(2) adrenergic receptor (β(2)AR) that exhibits G protein-like behaviour, and obtained an agonist-bound, active-state crystal structure of the receptor-nanobody complex. Comparison with the inactive β(2)AR structure reveals subtle changes in the binding pocket; however, these small changes are associated with an 11 Å outward movement of the cytoplasmic end of transmembrane segment 6, and rearrangements of transmembrane segments 5 and 7 that are remarkably similar to those observed in opsin, an active form of rhodopsin. This structure provides insights into the process of agonist binding and activation.

Figure 1. Effect of Nb80 on β₂AR structure and function

a, The cartoon illustrates the movement of the environmentally-sensitive bimane probe attached to Cys265^6.27 in the cytoplasmic end of TM6 from a more buried, hydrophobic environment to a more polar, solvent-exposed position during receptor activation that results in a decrease in the observed fluorescence in Figure 1b–c and Supplementary Figure 2c–d. b–c, Fluorescence emission spectra showing ligand-induced conformational changes of monobromobimane labeled β₂AR reconstituted into high density lipoprotein particles (mBB-β₂AR/HDL) in the absence (black solid line) or presence of full agonist isoproterenol (ISO, green wide dashed line), inverse agonist ICI-118,551 (ICI, black dashed line), G_s heterotrimer (red solid line), nanobody-80 (Nb80, blue solid lines), and combinations of G_s with ISO (red wide dashed line), Nb80 with ISO (blue wide dashed line), and Nb80 with ICI (blue dashed line). d–f Ligand binding curves for ISO competing against [³H]-dihydroalprenolol ([³H]-DHA) for d, β₂AR/HDL reconstituted with G_s heterotrimer in the absence or presence GTPγS, e, β₂AR/HDL in the absence and presence of Nb80, and f, β₂AR-T4L/HDL in the absence and presence of Nb80. Error bars represent standard errors.

Figure 2. Comparison of the agonist-Nb80 stabilized crystal structures of the β₂AR with inverse agonist bound β₂AR and opsin

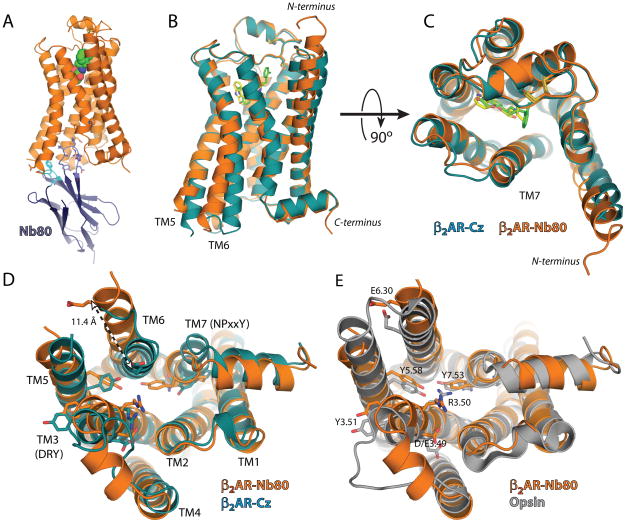

The structure of inverse agonist carazolol bound β₂AR-T4L (β₂AR-Cz) is shown in blue with the carazolol in yellow. The structure of BI-167107 agonist bound and Nb80 stabilized β₂AR-T4L (β₂AR-Nb80) is shown in orange with BI-167107 in green. These two structures were aligned using Pymol align function. a, Side view of the β₂AR-Nb80 complex with β₂AR in orange and CDRs of Nb80 in light blue (CDR1) and blue (CDR3). b, Side view of the superimposed structures showing significant structural changes in the intracellular and G protein facing part of the receptors. c, Comparison of the extracellular ligand binding domains showing modest structural changes. d, Cytoplasmic view showing the ionic lock interaction between Asp3.49 and Arg3.50 of the DRY motif in TM3 is broken in the β₂AR-Nb80 structure. The intracellular end of TM6 is moved outward and away from the core of the receptor. The arrow indicates a 11.4 Å change in distance between the α-carbon of Glu6.30 in the structures of β₂AR-Cz and β₂AR-Nb80. The intracellular ends of TM3 and TM7 move towards the core by 4 and 2.5 Å respectively, while TM5 moves outward by 6Å. e, The β₂AR-Nb80 structure superimposed with the structure of opsin crystallized with the C-terminal peptide of G_t (transducin) . PyMOL (http://www.pymol.org) was used for the preparation of all structure figures.

Figure 3. Ligand binding pocket of BI-167107 and carazolol bound β₂AR structures

Panels a and b depict extracellular views of the agonist BI-167107 and carazolol bound structures, respectively. Residues within 4Å of one or both ligands are shown as sticks. In all panels, oxygens are red and nitrogens are blue. Panels c and d show a schematic representation of the interactions between the β₂AR and the ligands BI-167107 and carazolol. The residues shown here have at least one atom within 4 Å of the ligand in the crystal structures. Mutations of amino acids in orange boxes have been shown to disrupt both antagonist and agonist binding. Mutations of amino acids in blue boxes have been shown to disrupt agonist binding. Green lines indicate potential hydrophobic interactions and orange lines indicate potential polar interactions.

Figure 4. Rearrangement of transmembrane segment packing interactions upon agonist binding

a, The BI-167107 and carazolol bound structures are superimposed to show structural differences propagating from the ligand binding pocket. BI-167107 and carazolol are shown with green and yellow bonds, respectively. b, Packing interactions that stabilize the inactive state are observed between Pro211 in TM5, Ile121 in TM3, Phe282 in TM6 and Asn318 in TM7. c, The inward movement of TM5 upon agonist binding disrupts the packing of Ile121 and Pro211 resulting in a rearrangement of interactions between Ile121 and Phe282. These changes contribute to a rotation and outward movement of TM6 and an inward movement of TM7.
