. 2009 Aug 12;65(Pt 9):m1063-4.
doi: 10.1107/S1600536809031092.

Octa-kis[2,2',5,5'-tetra-thia-fulvalenium(0.5+)] bis-[hexa-molybdate(2-)] acetonitrile solvate

Ikram Zebiri, Berkahoum Anak, Yacine Djebli, Sihem Boufas, Leïla Bencharif

Octa-kis[2,2',5,5'-tetra-thia-fulvalenium(0.5+)] bis-[hexa-molybdate(2-)] acetonitrile solvate

Ikram Zebiri et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

The asymmetric unit of the title compound, (C(6)H(4)S(4))(8)[Mo(6)O(19)](2)·CH(3)CN, contains two halves of two centrosymmetric [Mo(6)O(19)](2-) hexa-molybdate anions, which are each built up from six distorted MoO(6) octa-hedra sharing common edges and one common vertex at the central O atom, six tetra-thia-fulvalene cations (three of which are located on mirror planes) to balance the charge and a half of an acetonitrile solvent mol-ecule, likewise located on a mirror plane. The two central hexa-molybdate O atoms occupy special positions 2a and 2d, respectively. The cations and anions are inter-linked through C-H⋯O contacts.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
The independent components of (I), showing the atom-labelling scheme. Displacement ellipsoids are drawn at the 50% probability level.
Fig. 2.
Fig. 2.

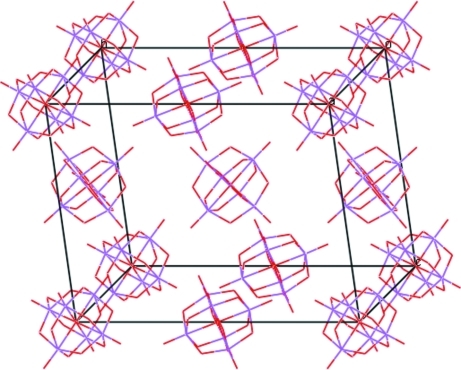

hexamolybdate anions positions on the unit cell.
See this image and copyright information in PMC
