. 2009 Oct 17;65(Pt 11):o2753.
doi: 10.1107/S1600536809041543.

2-(2-Chloro-3-quinol-yl)-3-phenyl-thia-zolidin-4-one

Wei-Wei Liu, Ji-You Sun, Li-Juan Tang, Yue-Qiang Zhao, Hong-Wen Hu

2-(2-Chloro-3-quinol-yl)-3-phenyl-thia-zolidin-4-one

Wei-Wei Liu et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound, C(18)H(13)ClN(2)OS, the thia-zolidinone ring is slightly distorted and adopts a envelope conformation. The basal plane is nearly perpendicular to the quinoline ring, forming a dihedral angle of 86.1 (1)°, and makes a dihedral angle of 14.9 (1)° to the benzene ring. The benzene ring is also nearly perpendicular to the quinoline ring, forming a dihedral angle of 89.4 (1)°. In the crystal, non-classical C-H⋯O and C-H⋯N hydrogen bonds link the mol-ecules, forming polymers along b.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
The molecular structure drawing for (I) showing 50% probability of displacement ellipsoids and the atom-numbering scheme.
Fig. 2.
Fig. 2.

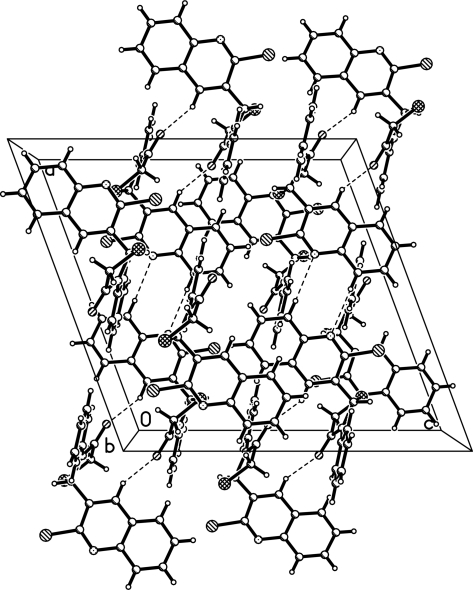

The molecular packing diagram of (I). The broken lines indicate hydrogen bonds.
See this image and copyright information in PMC

References

    1. Abd Elhafez, O. M., El Din Ahmed Mohamed El Khrisy, E., Badria, F. & El Din Mohamed Fathy, A. (2003). Arch. Pharm. Res.26, 686–696. - PubMed
    1. Bruker (2001). SAINT and SMART Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Kuecuekguezel, G., Kocatepe, A., De Clercq, E., Sahin, F. & Guelluece, M. (2006). Eur. J. Med. Chem.41, 353–359. - PubMed
    1. Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122. - PubMed
    1. Shih, M.-H. & Ke, F.-Y. (2004). Bioorg. Med. Chem.12, 4633–4643. - PubMed
