. 2010 Feb 13;66(Pt 3):o616.
doi: 10.1107/S1600536810005404.

2-(2-Oxo-2-phenyl-ethyl)-1,2-benziso-thia-zol-3(2H)-one 1,1-dioxide

2-(2-Oxo-2-phenyl-ethyl)-1,2-benziso-thia-zol-3(2H)-one 1,1-dioxide

Matloob Ahmad et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound, C(15)H(11)NO(4)S, the benzothia-zole unit is essentially planar [maximum deviation = 0.0644 (14) Å for the N atom] and forms a dihedral angle 54.43 (6)° with the phenyl ring. In the crystal structure, weak bifurcated C-H⋯O hydrogen bonds involving the carbonyl O atoms as acceptors result in R(2) (2)(7) ring motifs.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

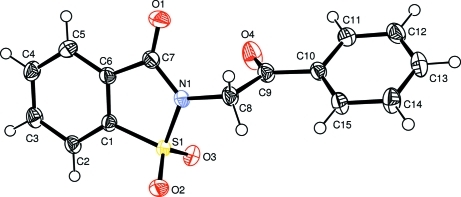

ORTEP-3 (Farrugia, 1997) drawing of (I) with displacement ellipsoids plotted at 50% probability level.
Fig. 2.
Fig. 2.
Unit cell packing of (I) showing non-classical hydrogen bonding interaction with dashed lines; H-atoms not involved in H-bonds have been excluded for clarity.

References

    1. Ahmad, M., Siddiqui, H. L., Azam, M., Siddiqui, W. A. & Parvez, M. (2009). Acta Cryst. E65, o2185. - PMC - PubMed
    1. Ahmad, M., Siddiqui, H. L., Zia-ur-Rehman, M., Ashiq, M. I. & Tizzard, G. J. (2008). Acta Cryst. E64, o788. - PMC - PubMed
    1. Bernstein, J., Davis, R. E., Shimoni, L. & Chang, N.-L. (1995). Angew. Chem. Int. Ed. Engl.34, 1555–1573.
    1. Blessing, R. H. (1997). J. Appl. Cryst.30, 421–426.
    1. Farrugia, L. J. (1997). J. Appl. Cryst.30, 565.
