. 2009 Jan 8;65(Pt 2):m134.
doi: 10.1107/S1600536808043596.

Poly[(3-nitro-benzoato)(μ(3)-1,2,4-triazolato)cobalt(II)]

Xu-Liang Qi  1
Affiliations

Poly[(3-nitro-benzoato)(μ(3)-1,2,4-triazolato)cobalt(II)]

Xu-Liang Qi. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound, [Co(C(2)H(2)N(3))(C(7)H(4)NO(4))](n), the Co(II) atom is five-coordinated by three triazolate ligands and one bidentate 3-nitro-benzoate anion in a distorted trigonal-bipyramidal geometry. The triazolate ligand bridges the Co(II) atoms, generating a two-dimensional net parallel to the ab plane, in which both the Co(II) atom and the triazolate ligand act as three-connected nodes. Two weak inter-molecular C-H⋯O hydrogen bonds connect the nets.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
An ORTEP view of the asymmetric unit with 50% thermal ellipsoids for non-H atoms [symmetry codes: (A) -x + 1/2, y - 1/2, z; (B) x + 1/2, -y + 3/2, -z + 1].
Fig. 2.
Fig. 2.

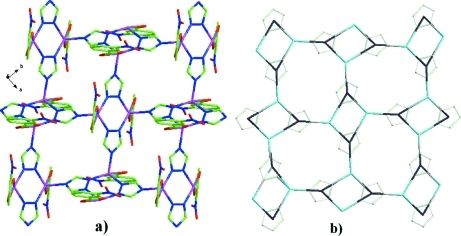

a) View of the two-dimensional net onto the ab plane, formed by cobalt ions and trz ligands; b) View of the two-dimensional net built on three-connected trz and cobalt nodes.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Bruker (2001). SMART and SAINT Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Park, H., Moureau, D. M. & Parise, J. B. (2006). Chem. Mater.18, 525–531.
    1. Sheldrick, G. M. (2004). SADABS University of Göttingen, Germany.
    1. Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122. - PubMed
    1. Yang, E.-C., Liu, Z.-Y., Wang, X.-G., Batten, S. R. & Zhao, X.-J. (2008). CrystEngComm, 10, 1140–1143.
