. 2009 Feb 6;65(Pt 3):o481.
doi: 10.1107/S1600536809004036.

Dimethyl (1-hydr-oxy-1,2-diphenyl-ethyl)phospho-nate

Nurcan Acar, M Nawaz Tahir, Hamza Yılmaz, Muhammad Saeed Ahmad Chishti, Muhammad Ali Malik

Dimethyl (1-hydr-oxy-1,2-diphenyl-ethyl)phospho-nate

Nurcan Acar et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the mol-ecule of the title compound, C(16)H(19)O(4)P, the coordination around the P atom is distorted tetra-hedral. The aromatic rings are oriented at a dihedral angle of 72.28 (11)°. Intra-molecular C-H⋯O hydrogen bonding result in the formation of five- and six-membered rings. In the crystal structure, inter-molecular C-H⋯O hydrogen bonds link the mol-ecules. There is also a weak C-H⋯π inter-action.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
The molecular structure of the title molecule, with the atom-numbering scheme. Displacement ellipsoids are drawn at the 50% probability level.
Fig. 2.
Fig. 2.

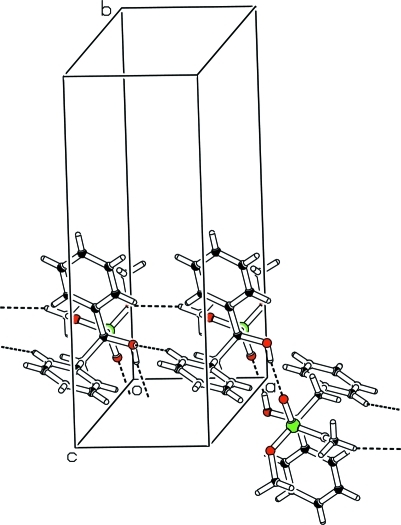

A partial packing diagram of the title compound. Hydrogen bonds are shown as dashed lines.
See this image and copyright information in PMC

References

    1. Enraf–Nonius (1994). CAD-4 EXPRESS Enraf–Nonius, Delft, The Netherlands.
    1. Farrugia, L. J. (1997). J. Appl. Cryst.30, 565.
    1. Farrugia, L. J. (1999). J. Appl. Cryst.32, 837–838.
    1. Harms, K. & Wocadlo, S. (1995). XCAD4 University of Marburg, Germany.
    1. Hudson, H. R., McPartlin, M., Matthews, R. W., Powell, H. R., Yusuf, R. O., Jaszay, Z. M., Keglevich, G., Petnehazy, I. & Toke, L. (1993). Phosphorus Sulfur Silicon Relat. Elem 79, 239–243.
