. 2009 May 23;65(Pt 6):o1384.
doi: 10.1107/S1600536809018996.

Methyl 2-[(E)-3-hydr-oxy-4-methoxy-benzyl-idene]hydrazinecarboxyl-ate

Lu-Ping Lv, Tie-Ming Yu, Wen-Bo Yu, Wei-Wei Li, Xian-Chao Hu

Methyl 2-[(E)-3-hydr-oxy-4-methoxy-benzyl-idene]hydrazinecarboxyl-ate

Lu-Ping Lv et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

The title compound, C(10)H(12)N(2)O(4), adopts a trans configuration with respect to the C=N bond. The hydrazinecarboxyl-ate group is twisted from the benzene ring by 6.62 (5)° and an intramolecular O-H⋯O hydrogen bond occurs. In the crystal structure, mol-ecules are linked into a two-dimensional network parallel to (100) by O-H⋯O, N-H⋯O and C-H⋯O hydrogen bonds. In addition, weak C-H⋯π inter-actions are observed.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
The molecular structure of the title compound. Displacement ellipsoids are drawn at the 30% probability level. The dashed line indicates a hydrogen bond.
Fig. 2.
Fig. 2.

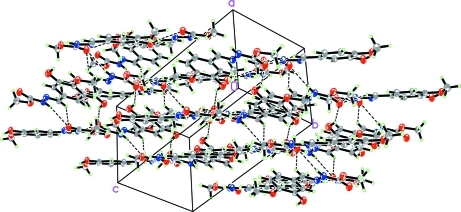

Crystal packing of the title compound. Hydrogen bonds are shown as dashed lines.
See this image and copyright information in PMC

References

    1. Borg, S., Vollinga, R. C., Labarre, M., Payza, K., Terenius, L. & Luthman, K. (1999). J. Med. Chem.42, 4331–4342. - PubMed
    1. Bruker (2002). SMART, SAINT and SADABS Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Hadjoudis, E., Vittorakis, M. & Moustakali-Mavridis, J. (1987). Tetrahedron, 43, 1345–1360.
    1. Kahwa, I. A., Selbin, J., Hsieh, T. Y. & Laine, R. A. (1986). Inorg. Chim. Acta, 151, 201–208.
    1. Parashar, R. K., Sharma, R. C., Kumar, A. & Mohanm, G. (1988). Inorg. Chim. Acta, 151, 201–208.
