N'-(3,4-Dimethoxy-benzyl-idene)acetohydrazide

Abstract

In the title mol-ecule, C(11)H(14)N(2)O(3), the acetohydrazide group is planar 0.084 (1) Å and forms a dihedral angle of 19.7 (1)° with the benzene ring. One of the meth-oxy groups is coplanar with the attached benzene ring within 0.052 (3) Å, whereas the other is slightly twisted [C-O-C-C = 6.3 (3)°]. The mol-ecule adopts a trans configuration with respect to the C=N bond. In the crystal, the mol-ecules are linked into chains along the a axis by N-H⋯O hydrogen bonds and the chains are cross-linked into a three-dimensional network by C-H⋯O hydrogen bonds.

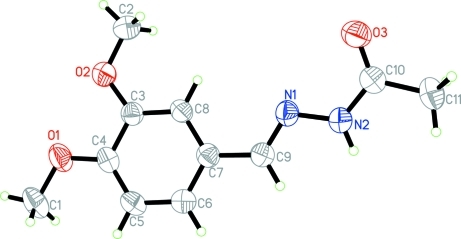

Fig. 1.

The molecular structure of the title compound. Displacement ellipsoids are drawn at the 40% probability level.

Fig. 2.

Part of the crystal packing of the title compound. Hydrogen bonds are shown as dashed lines.
