. 2009 Jul 29;65(Pt 8):o2012.
doi: 10.1107/S1600536809028980.

(2R,4R)-2-Hydr-oxy-4-(2-methoxy-phen-yl)bicyclo-[3.3.1]nonan-9-one

Shuping Luo  1 , Guangcun Zhang, Shuai Zhang, Yifeng Wang, Wei Zhang
Affiliations

(2R,4R)-2-Hydr-oxy-4-(2-methoxy-phen-yl)bicyclo-[3.3.1]nonan-9-one

Shuping Luo et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

The title compound, C(16)H(20)O(3), contains a bicyclic ring system with two chiral centers. The crystal structure is stabilized by inter-molecular O-H⋯O hydrogen bonds. The absolute configuration was established by the stereo-selectivity of the asymmetric organocatalysis.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

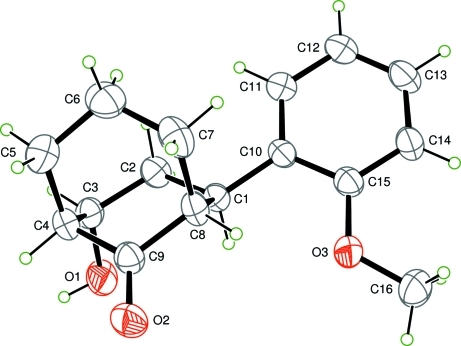

Thermal ellipsoid representation of the of title compound with the atomic labeling scheme. Displacement ellipsoids are drawn at the 40% probability level.
Fig. 2.
Fig. 2.
View of the hydrogen bonding interactions. H bonds are represented as dashed lines. Symmetery codes: (i) x + 1/2, -y - 1/2, -z. (iv) -x, y + 1/2, 1/2 -z. (v) 1/2 - x, -y - 1, - 1/2 + z.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Altomare, A., Burla, M. C., Camalli, M., Cascarano, G. L., Giacovazzo, C., Guagliardi, A., Moliterni, A. G. G., Polidori, G. & Spagna, R. (1999). J. Appl. Cryst.32, 115–119.
    1. Cao, C., Sun, X., Kang, Y. & Tang, Y. (2007). Org. Lett.9, 4151–4154. - PubMed
    1. Farrugia, L. J. (1997). J. Appl. Cryst.30, 565.
    1. Higashi, T. (1995). ABSCOR. Rigaku Corporation, Tokyo, Japan.
    1. Larson, A. C. (1970). Crystallographic Computing, edited by F. R. Ahmed, S. R. Hall & C. P. Huber, pp. 291–294. Copenhagen: Munksgaard.
