. 2009 Apr 25;65(Pt 5):m565.
doi: 10.1107/S1600536809013981.

Piperazinediium tetra-chloridozincate(II)

Pamela A Sutherland  1 , William T A Harrison
Affiliations

Piperazinediium tetra-chloridozincate(II)

Pamela A Sutherland et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound, (C(4)H(12)N(2))[ZnCl(4)], the Zn atom adopts a slightly distorted tetra-hedral geometry. In the crystal, the dication and dianion inter-act by way of N-H⋯Cl and N-H⋯(Cl,Cl) hydrogen bonds to result in a layered network propagating in (010). The hydrogen-bonding network is unbalanced, with three Cl atoms accepting two hydrogen bonds each and one Cl atom not accepting any hydrogen bonds: the latter shows the shortest Zn-Cl bond length. The crystal studied was found to be an inversion twin.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
View of the molecular structure of (I) showing 50% displacement ellipsoids (arbitrary spheres for the H atoms) with the hydrogen bonds indicated by double dashed lines.
Fig. 2.
Fig. 2.

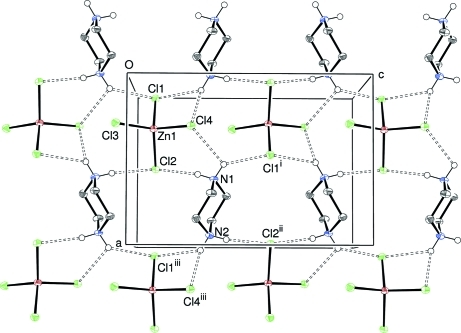

Part of an (010) hydrogen bonded sheet in the structure of (I) with the hydrogen bonds shown as double dashed lines. All the carbon-bound H atoms are omitted for clarity. Symmetry codes as in Table 2.
See this image and copyright information in PMC

References

    1. Allen, F. H., Kennard, O., Watson, D. G., Brammer, L., Orpen, A. G. & Taylor, R. (1995). International Tables for Crystallography, Vol. C, Section 9.5, pp. 685–706. Dordrecht: Kluwer Academic Publishers.
    1. Bernstein, J., Davis, R. E., Shimoni, L. & Chang, N.-L. (1995). Angew. Chem. Int. Ed. Engl. 34, 1555–1573.
    1. Blessing, R. H. (1995). Acta Cryst. A51, 33–38. - PubMed
    1. Bremner, C. A. & Harrison, W. T. A. (2003). Acta Cryst. E59, m425–m426.
    1. Bruker (2003). SADABS Bruker AXS Inc., Madison, Wisconsin, USA.
