. 2010 Sep 11;66(Pt 10):o2531-2.
doi: 10.1107/S1600536810035695.

(2E)-2-Benzyl-idene-5,6-dimethoxy-indan-1-one

(2E)-2-Benzyl-idene-5,6-dimethoxy-indan-1-one

Mohamed Ashraf Ali et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

The mol-ecular structure of the title compound, C(18)H(16)O(3), is roughly planar; the maximum deviation of the indanone ring system is 0.027 (1) Å and it makes a dihedral angle of 2.69 (3)° with the phenyl ring. The torsion angles between the two meth-oxy groups and the -indanone ring are -14.67 (11) and -1.11 (12)°. In the crystal, mol-ecules are connected into a ribbon along the a axis via weak inter-molecular C-H⋯O hydrogen bonds. Weak inter-molecular C-H⋯π and π-π [centroid-centroid distance = 3.7086 (6) Å] inter-actions are also observed.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

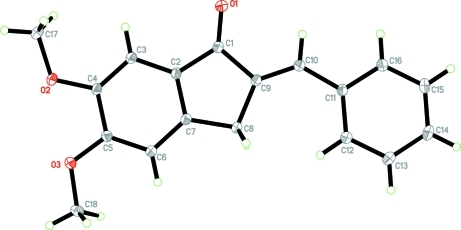

The molecular structure of the title compound with atom labels and 50% probability ellipsoids for non-H atoms.
Fig. 2.
Fig. 2.

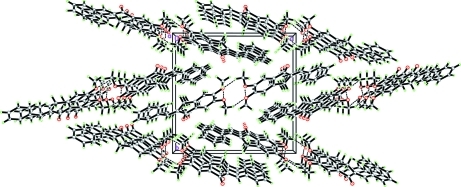

The crystal packing of title compound, showing chains along the [100] direction. Intermolecular hydrogen bonds are shown as dashed lines.

Similar articles

Cited by

References

    1. Boumendjel, A., Ronot, X. & Boutonnat, J. (2009). Curr. Drug Targets, 10, 363–371. - PubMed
    1. Bruker (2009). APEX2, SAINT and SADABS Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Cosier, J. & Glazer, A. M. (1986). J. Appl. Cryst.19, 105–107.
    1. D’Archivio, M., Santangelo, C., Scazzocchio, B., Vari, R., Filesi, C., Masella, R. & Giovannini, C. (2008). Int. J. Mol. Sci.9, 213–228. - PMC - PubMed
    1. Dicarlo, G., Mascolo, N., Izzo, A. A. & Capasso, F. (1999). Life Sci.65, 337–353. - PubMed
