. 2010 Jun 5;66(Pt 7):o1522.
doi: 10.1107/S1600536810020039.

(E)-N'-(4-Nitro-benzyl-idene)-4-(8-quinol-yloxy)butano-hydrazide

Guo-Lun Xiahou  1 , Ye-Chun Ding, Xiao-Na Fan
Affiliations

(E)-N'-(4-Nitro-benzyl-idene)-4-(8-quinol-yloxy)butano-hydrazide

Guo-Lun Xiahou et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound, C(20)H(18)N(4)O(4), conformation along the bond sequence linking the benzene and quinoline rings, which have a mean inter-planar dihedral angle of 2.7 (5)°, is trans-(+)gauche-trans-trans-(-)gauche-trans-trans. In the crystal structure, a pair of inter-molecular N-H⋯O hydrogen bonds links the mol-ecules into centrosymmetric cyclic R(2) (2)(8) dimers, which are aggregated via π-π inter-actions into parallel sheets [quinoline-benzene ring centroid separation = 3.6173 (16)-3.6511 (16) Å]. The sheets are further connected through weak C-H⋯O inter-actions, giving a supra-molecular two-dimensional network.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

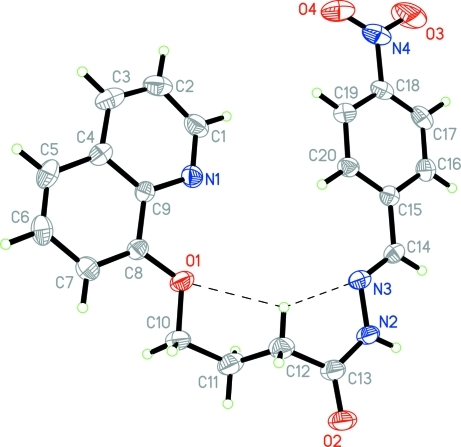

The molecular structure of (I), with displacement ellipsoids at the 30% probability level. Intramolecular C–H···N and C–H···O interactions are shown as dashed lines.
Fig. 2.
Fig. 2.
The cyclic hydrogen-bonded dimer with hydrogen bonds shown as dashed lines. H atoms, except for those involved in hydrogen bonds, are not included.
Fig. 3.
Fig. 3.
Part of the crystal structure showing hydrogen bonds as dashed lines. H atoms, except for those involved in hydrogen bonds, are not included.
See this image and copyright information in PMC
