2-(4-Fluoro-phen-yl)-3-[5-(4-nitro-phen-yl)-1,3,4-thia-diazol-2-yl]-1,3-thia-zolidin-4-one

Abstract

In the title compound, C(17)H(11)FN(4)O(3)S(2), the five-membered thia-zolidinone and thia-diazole rings are almost planar, with r.m.s. deviations of 0.017 and 0.0019 Å, respectively. The 4-fluoro-phenyl ring is almost perpendicular to the thia-diazole ring, making a dihedral angle of 89.5 (3)°. The 4-nitro-phenyl ring is nearly coplanar with the thia-diazole ring, the dihedral angle being 7.9 (3)°. The crystal structure is stabilized by two inter-molecular C-H⋯O hydrogen bonds.

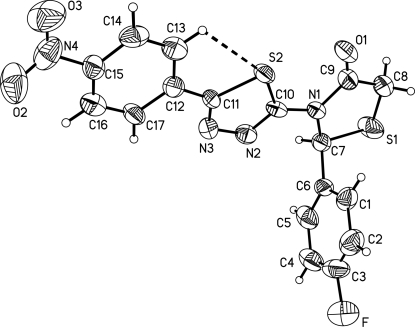

Fig. 1.

A view of the molecular structure of (I). Displacement ellipsoids are drawn at the 50% probability level. Dashed lines indicate intramolecular C—H···S hydrogen bond.

Fig. 2.

A packing diagram for (I). Dashed lines indicate intramolecular C—H···S hydrogen bond, and intermolecular C—H···O hydrogen bonds.
