. 2010 Jun 30;66(Pt 7):o1867.
doi: 10.1107/S1600536810024256.

N-{2-Methyl-5-[(5-oxo-10,11-dihydro-5H-dibenzo[a,d]cyclo-hepten-2-yl)amino]-phen-yl}benzamide

Angelika Dorn, Dieter Schollmeyer, Stefan A Laufer

N-{2-Methyl-5-[(5-oxo-10,11-dihydro-5H-dibenzo[a,d]cyclo-hepten-2-yl)amino]-phen-yl}benzamide

Angelika Dorn et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound, C(29)H(24)N(2)O(2), the two aromatic rings of the tricyclic unit are oriented at a dihedral angle of 32.27 (8)°. In the crystal N-H⋯O hydrogen bonds link the mol-ecules into chains along the a axis. Further N-H⋯·O inter-actions link the chains.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

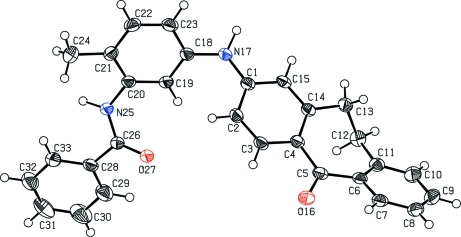

View of compound the title compound. Displacement ellipsoids are drawn at the 50% probability level.
Fig. 2.
Fig. 2.

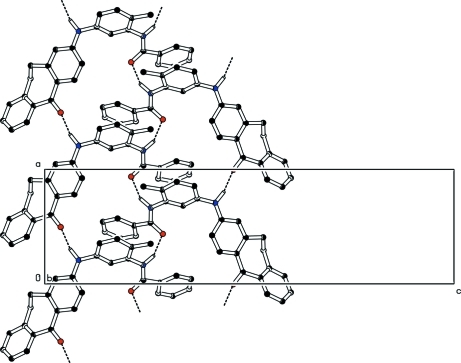

Part of the packing diagram illustrating the hydrogen bonds. View along the b-axis.
See this image and copyright information in PMC

Similar articles

See all similar articles

References

    1. Altomare, A., Burla, M. C., Camalli, M., Cascarano, G. L., Giacovazzo, C., Guagliardi, A., Moliterni, A. G. G., Polidori, G. & Spagna, R. (1999). J. Appl. Cryst.32, 115–119.
    1. Bruker (2006). APEX2 and SAINT Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Grasa, G. A., Viciu, M. S., Huang, J. & Nolan, S. P. (2001). J. Org. Chem.66, 7729–7737. - PubMed
    1. Jensen, T. A., Liang, X., Tanner, D. & Skjaerbaek, N. (2004). J. Org. Chem.69, 4936–4947. - PubMed
    1. Laufer, S. A., Ahrens, G. M., Karcher, S. C., Hering, J. S. & Niess, R. (2006). J. Med. Chem.49, 7912–7915. - PubMed
