. 2010 Jul 7;66(Pt 8):m889.
doi: 10.1107/S1600536810025705.

Diaqua-(1,4,8,11-tetra-aza-cyclo-tetra-decane-κN,N,N,N)copper(II) bis-(2,3,4,5,6-penta-fluoro-benzoate) dihydrate

Nur Syamimi Ahmad Tajidi  1 , Norbani Abdullah, Zainudin Arifin, Kong Wai Tan, Seik Weng Ng
Affiliations

Diaqua-(1,4,8,11-tetra-aza-cyclo-tetra-decane-κN,N,N,N)copper(II) bis-(2,3,4,5,6-penta-fluoro-benzoate) dihydrate

Nur Syamimi Ahmad Tajidi et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

The Cu(II) atom in the title salt, [Cu(C(10)H(24)N(4))(H(2)O)(2)](C(6)F(5)CO(2))(2)·2H(2)O, is chelated by the four N atoms of the 1,4,8,11-tetra-aza-cyclo-tetra-decane (cyclam) ligand and is coordinated by two water mol-ecules in a Jahn-Teller-type tetra-gonally distorted octa-hedral geometry. The Cu(II) atom lies on a center of inversion. The cations, anions and uncoordinated water mol-ecules are linked by N-H⋯O and O-H⋯O hydrogen bonds, forming a layer structure parallel to (001).

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

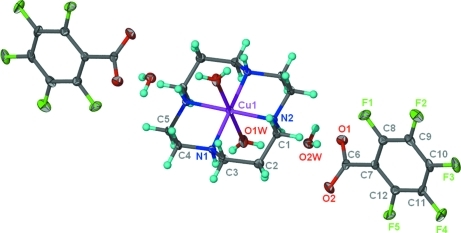

Anisotropic displacement ellipsoid plot (Barbour, 2001) of [Cu(H2O)2(C10H24N4)]2+ 2(C6F5CO2)-.2H2O at the 70% probability level; hydrogen atoms are drawn as spheres of arbitrary radius.
See this image and copyright information in PMC

References

    1. Barbour, L. J. (2001). J. Supramol. Chem.1, 189–191.
    1. Bruker (2009). APEX2 and SAINT Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Hunter, T. M., McNae, I. W., Liang, X., Bella, J., Parsons, S., Walkinshaw, M. D. & Sadler, P. J. (2005). Proc. Natl Acad. Sci. USA, 102, 2288–2292. - PMC - PubMed
    1. Lindoy, L. F., Mahinay, M. S., Skelton, B. W. & White, A. H. (2003). J. Coord. Chem.56, 1203–1213.
    1. Sheldrick, G. M. (1996). SADABS University of Göttingen, Germany.
