. 2010 Aug 11;66(Pt 9):o2282-3.
doi: 10.1107/S1600536810031223.

Ethyl 1,5-diphenyl-1H-pyrazole-4-carboxyl-ate

Hoong-Kun Fun, Ching Kheng Quah, B Chandrakantha, Arun M Isloor, Prakash Shetty

Ethyl 1,5-diphenyl-1H-pyrazole-4-carboxyl-ate

Hoong-Kun Fun et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

The asymmetric unit of the title compound, C(18)H(16)N(2)O(2), contains two independent mol-ecules (A and B). In mol-ecule A, the pyrazole ring is inclined at angles of 48.86 (6) and 60.80 (6)° with respect to the two phenyl rings; the corresponding angles for mol-ecule B are 46.86 (6) and 58.63 (6)°. In the crystal, mol-ecules of type A are linked into sheets parallel to (001) via weak C-H⋯O hydrogen bonds, whereas the mol-ecules of type B are linked into chains along [010] via weak C-H⋯O hydrogen bonds.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.
The molecular structure of the title compound showing 50% probability displacement ellipsoids for non-H atoms and the atom-numbering scheme.
Fig. 2.

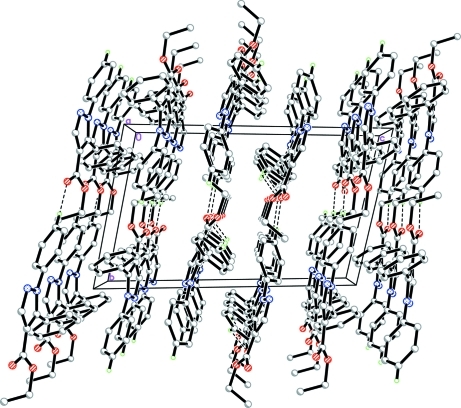

Fig. 2.
Part of the crystal structure of the title compound, viewed approximately along the a axis. H atoms not involved in hydrogen bonds (dashed lines) have been omitted for clarity.
Fig. 3.
Fig. 3.
The crystal packing of molecules of type A, viewed along the c axis. H atoms not involved in hydrogen bonds (dashed lines) have been omitted for clarity.
See this image and copyright information in PMC

References

    1. Allen, F. H., Kennard, O., Watson, D. G., Brammer, L., Orpen, A. G. & Taylor, R. (1987). J. Chem. Soc. Perkin Trans. 2, pp. S1–19.
    1. Bernstein, J., Davis, R. E., Shimoni, L. & Chang, N.-L. (1995). Angew. Chem. Int. Ed. Engl.34, 1555–1573.
    1. Bruker (2009). APEX2, SAINT and SADABS Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Cosier, J. & Glazer, A. M. (1986). J. Appl. Cryst.19, 105–107.
    1. Fun, H.-K., Goh, J. H., Chandrakantha, B., Isloor, A. M. & Shetty, P. (2010). Acta Cryst. E66, o1828–o1829. - PMC - PubMed
