(2,7-Dimeth-oxy-naphthalen-1-yl)(3-nitro-phen-yl)methanone

Abstract

The title compound, C(19)H(15)NO(5), has an intra-molecular C-H⋯O=C hydrogen bond between a naphthalene H atom and the O atom of the carbonyl group. The inter-planar angle between the naphthalene ring system and the benzene ring is 69.59 (5)°. The dihedral angle between the bridging carbonyl C-C(=O)-C plane and the naphthalene ring system is 61.02 (6)°, which is far larger than that between the bridging carbonyl plane and the benzene ring [12.68 (7)°]. The nitro group is slightly out of the plane of the benzene ring [O-N-C-C torsion angle = 4.97 (17)°]. In the crystal, the packing is mainly stabilized by C-H⋯O inter-actions between an H atom of the benzene ring and an O atom of the nitro group.

Fig. 1.

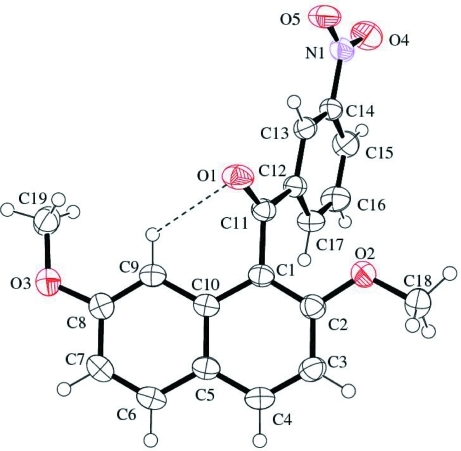

The asymmetric unit of compound (I), showing 50% probability displacement ellipsoids. The dashed line indicates an intramolecular C—H···O hydrogen bond.

Fig. 2.

A partial crystal packing diagram of compound (I), viewed down the b axis. The intra- and intermolecular C—H···O hydrogen bonds are shown as dashed lines.
