. 2011 Mar 3:2:6.
doi: 10.3389/fphys.2011.00006. eCollection 2011.

Ussing's "Little Chamber": 60 Years+ Old and Counting

Kirk L Hamilton  1
Affiliations

Ussing's "Little Chamber": 60 Years+ Old and Counting

Kirk L Hamilton. Front Physiol. .
No abstract available

PubMed Disclaimer

Figures

Figure 1
Figure 1

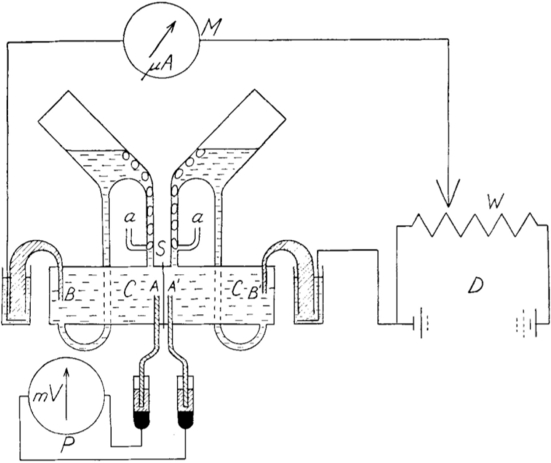

Diagram of the Ussing chamber apparatus. Abbreviations are: A and A′ are voltage-sensing electrodes; a are the air lines to aerate the frog skin; B and B′ are current-passing electrodes; C are the two half-chambers; S is where the skin is inserted between the half-chambers; D is the battery and W the potential divider that are used to adjust (by using current) the voltage across the skin to be equal to zero (i.e., short-circuited) as measured by P the potentiometer (voltmeter); any current-passing the skin while the skin is short-circuited is measured by M the microammeter and is the short-circuited current (μA), thus, active transport. The reproduction of Figure 1 from Ussing and Zerahn (1951) is with kind permission from John Wiley and Sons.
See this image and copyright information in PMC

Comment on

  • A commentary on Active transport of sodium as the source of electric current in the short-circuited isolated frog skin by Ussing, H. H., and Zerahn, R. (1951). Acta Physiol. Scand. 23, 110–127.

Similar articles

See all similar articles

Cited by

References

    1. Canessa C. M., Schild L., Buell G., Thorens B., Gautschi I., Horisberger J. D., Rossier B. C. (1994). Amiloride-sensitive epithelial Na+ channel is made of three homologous subunits. Nature, 367, 463–46710.1038/367463a0 - DOI - PubMed
    1. Canessa C. M., Horisberger J. D., Rossier B. C. (1993). Epithelial sodium channel related to proteins involved in neurodegeneration. Nature 361, 467–47010.1038/361467a0 - DOI - PubMed
    1. Clarke L. L. (2009). A guide to Ussing chamber studies of mouse intestine. Am. J. Physiol. Gastrointest. Liver Physiol. 296, G1151–G1166 - PMC - PubMed
    1. Hamilton K. L., Eaton D. C. (1985). Single recordings from amiloride-sensitive sodium channels. Am. J. Physiol. 249, C200–C207 - PubMed
    1. Hamilton K. L., Eaton D. C. (1986). Regulation of single sodium channels in renal tissue: a role in sodium homeostasis. Fed. Proc. 45, 2713–2717 - PubMed
