. 2006 Jul;2(3):e38.
doi: 10.2349/biij.2.3.e38. Epub 2006 Jul 1.

Development of a randomised contrast detail digital phantom for observer detectability study

Ms Nizam  1 , Kh Ng, Bjj Abdullah
Affiliations

Development of a randomised contrast detail digital phantom for observer detectability study

Ms Nizam et al. Biomed Imaging Interv J. 2006 Jul.

Abstract

The accuracy and the efficacy of radiological diagnosis depend, to a large extent, on the conditions under which radiographs and images are viewed. This mainly involves the luminance of the display devices and the ambient room illumination. We report a perceptual study to investigate the relationship between detectability and monitor luminance as well as ambient illuminance. A statistical test pattern was used in this study, and the test pattern was developed using Microsoft® Visual Basic 6. The test pattern contained a set of randomised contrast detail objects, that is, disks of different diameters (0.7, 1.0, 1.4, and 2.0 mm) and contrasts against a black background (2.7, 3.9, 5.5, and 7.8%), simulating lesions in digital images. The receiver operating characteristic (ROC) analysis was used in this study. The results indicated that a set of optimal viewing conditions exists and that it has a significant effect on detectability performance.

Keywords: Image quality; contrast detail; perception; receiver operating characteristics.

PubMed Disclaimer

Figures

Figure 1
Figure 1
An image produced by the digital phantom showing the matrices (squares) containing randomly generated disks.
Figure 2
Figure 2
Text document produced by the digital phantom giving information on disk location (column and row, and x- and y- position), size, and contrast.
Figure 3

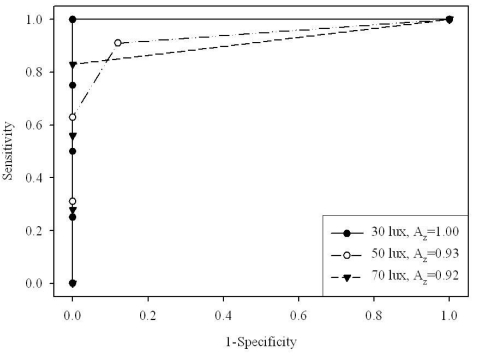

Figure 3
ROC curve (n=10) for 1.0 mm disks on 120 cdm-2 CRT monitor.
Figure 4
Figure 4
ROC curve (n=10) for 1.0 mm disks on 80 cdm-2 CRT monitor.
See this image and copyright information in PMC
