. 2012 Jan 1;17(1):e102-7.
doi: 10.4317/medoral.17280.

A preliminary study of hardness and modulus of elasticity in sheep mandibles submitted to distraction osteogenesis and low-level laser therapy

Angelo-Luiz Freddo  1 , Roberto Hübler, Carlos-Afonso de Castro-Beck, Cláiton Heitz, Marília-Gerhardt de Oliveira
Affiliations

A preliminary study of hardness and modulus of elasticity in sheep mandibles submitted to distraction osteogenesis and low-level laser therapy

Angelo-Luiz Freddo et al. Med Oral Patol Oral Cir Bucal. .

Abstract

Objectives: To investigate the quality of newly formed bone in sheep mandibles submitted to distraction osteogenesis and low-level laser therapy (LLLT), based on hardness and modulus of elasticity values. The ideal moment for laser application (during the latency/activation period vs. during the bone consolidation period) was also evaluated. Computed tomography imaging was used to assess relapse as a result of early device removal.

Study design: Extraoral distraction devices were placed in five sheep so as to achieve 1.5 cm of lengthened bone in 60 days. Distraction devices were removed 50, 40, and 33 days after surgery. Four animals were treated with LLLT, at different times, and one was used as control (no LLLT).

Results: When applied during the bone consolidation period, LLLT caused an increase in hardness and modulus of elasticity values. On the other hand, animals irradiated with LLLT during the latency/activation period presented a delay in bone healing. A period of consolidation of 13 days (early device removal) was associated with relapse.

Conclusions: Nanoindentation tests were able to detect slight abnormalities in bone metabolism and proved to be important tools for the assessment of bone quality following distraction osteogenesis. LLLT provided increased benefits when applied during the bone consolidation period, once it promoted an increase in hardness and modulus of elasticity values. According to our results, the bone consolidation period should be of at least 3 weeks, so as to prevent relapse.

PubMed Disclaimer

Figures

Figure 1
Figure 1
A) Three-dimensional, maximal intensity projection reconstructions of computed tomography images and B) linear measure between the edges of mature bone.
Figure 2
Figure 2

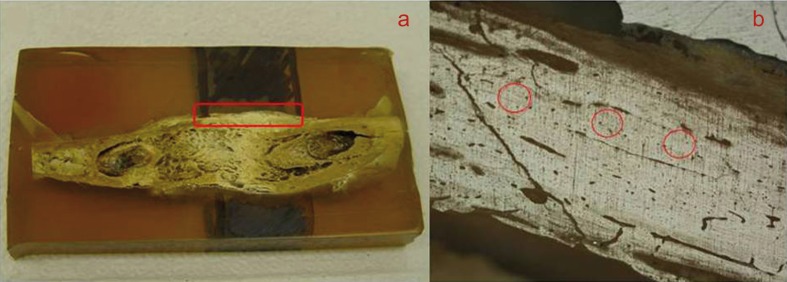

A) Polished bone block; red square showing the external cortical bone area assessed by nanoindentation B) Red circles indicating areas of the external cortical bone assessed by nanoindentation (optical photomicrographs at 50x magnification).
Figure 3
Figure 3
Macroscopic analysis of mandible.
See this image and copyright information in PMC

Similar articles

See all similar articles

Cited by

References

    1. Stewart KJ, Weyand B, van’t Hof RJ, White SA, Lvoff GO, Maffulli N. A quantitative analysis of the effect of insulin-like growth factor-1 infusion during mandibular distraction osteogenesis in rabbits. Br J Plast Surg. 1999;52:343–350. - PubMed
    1. Freddo AL, Rodrigo SM, Massotti FP, Etges A, de Oliveira MG. Effect of low-level laser therapy after implantation of poly-L-lactic/polyglycolic acid in the femurs of rats. Lasers Med Sci. 2009;24:721–728. - PubMed
    1. Rodrigo SM, Cunha A, Pozza DH, Blaya DS, Moraes JF, Weber JB. Analysis of the systemic effect of red and infrared laser therapy on wound repair. Photomed Laser Surg. 2009;27:929–935. - PubMed
    1. Takeda Y. Irradiation effect of low-energy laser on rat submandibular salivary gland. J Oral Pathol. 1988;17:91–94. - PubMed
    1. Hübler R, Blando E, Gaião L, Kreisner PE, Post LK, Xavier CB. Effects of low-level laser therapy on bone formed after distraction osteogenesis. Lasers Med Sci. 2010;25:213–219. - PubMed
