. 2011 Jun 1;67(Pt 6):o1470-1.
doi: 10.1107/S1600536811018678. Epub 2011 May 20.

Ethyl 4-oxo-2,3,4,9-tetra-hydro-1H-carbazole-3-carboxyl-ate

Cevher Gündoğdu, Mustafa Göçmentürk, Yavuz Ergün, Barış Tercan, Tuncer Hökelek

Ethyl 4-oxo-2,3,4,9-tetra-hydro-1H-carbazole-3-carboxyl-ate

Cevher Gündoğdu et al. Acta Crystallogr Sect E Struct Rep Online. .

Abstract

In the title compound, C(15)H(15)NO(3), the carbazole skeleton includes an eth-oxy-carbonyl group at the 3-position. In the indole ring system, the benzene and pyrrole rings are nearly coplanar, forming a dihedral angle of 0.89 (4)°. The cyclo-hexenone ring has an envelope conformation. In the crystal, inter-molecular N-H⋯O and C-H⋯O hydrogen bonds link the mol-ecules into a three dimensional network. A weak C-H⋯π inter-action is also observed.

PubMed Disclaimer

Figures

Fig. 1.
Fig. 1.

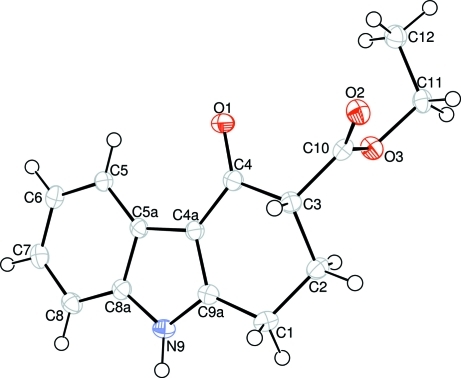

The molecular structure of (I) with displacement ellipsoids drawn at the 50% probability level.
Fig. 2.
Fig. 2.

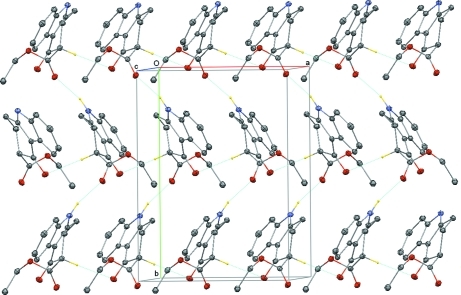

A view of the crystal packing of the title compound. The N—H···O and C—H···O hydrogen bonds are shown as dashed lines [H-atoms not involved in hydrogen bonding have been omitted for clarity].
See this image and copyright information in PMC

References

    1. Allen, F. H., Kennard, O., Watson, D. G., Brammer, L., Orpen, A. G. & Taylor, R. (1987). J. Chem. Soc. Perkin Trans. 2, pp. S1–19.
    1. Bruker (2005). SADABS Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Bruker (2007). APEX2 and SAINT Bruker AXS Inc., Madison, Wisconsin, USA.
    1. Çaylak, N., Hökelek, T., Uludağ, N. & Patır, S. (2007). Acta Cryst. E63, o3913–o3914.
    1. Ergün, Y., Patır, S. & Okay, G. (2002). J. Heterocycl. Chem., 39, 315–317.
