Cross hippocampal influence in mesial temporal lobe epilepsy measured with high temporal resolution functional magnetic resonance imaging

Abstract

Purpose: Mesial temporal lobe epilepsy (mTLE) is a chronic disorder with spontaneous seizures recurring for years, or even decades. Many structural and functional changes have been detected in both the seizure focus and distal regions throughout the brain over this duration that may reflect the development of epileptogenic networks. Resting state functional magnetic resonance imaging (fMRI) connectivity mapping has the potential to elucidate and quantify these networks. The network between the left and right hippocampus may very likely be one of the most susceptible to changes due to long-term seizure propagation effects. Therefore, the objective of this study was to quantify cross hippocampal influence in mTLE using high temporal resolution fMRI, and to determine its relationship with disease duration.

Methods: fMRI images were acquired in the resting (interictal) state with 500 ms temporal resolution across the temporal lobes of 19 mTLE patients (13 left, 6 right). The left and right hippocampi were identified on each subject's images using both structurally defined and functionally defined boundaries. The cross hippocampal influence was quantified in two ways for each pair of regions: (1) the nondirectional hippocampal functional connectivity calculated as the Pearson's correlation between the average time series in the left and the right hippocampus regions, and (2) the Granger causality (GC) laterality measure, which implies directional influence by determining temporal precedence. Each of these measures was correlated with age, age of onset, and disease duration across subjects to investigate relationship to disease progression.

Key findings: The hippocampal connectivity was not significantly different between patients with left and right mTLE using either the structurally or the functionally defined regions. Across all patients, hippocampal connectivity was not correlated significantly with age of onset or duration of disease. However, as duration of disease increased after 10 years (nine patients), the hippocampal connectivity increased linearly. Using the functionally defined regions, the GC laterality was increased in the right mTLE over the left mTLE, indicating that the left hippocampus was influencing the right hippocampus more than the right influencing left. This was also positively correlated with age of onset. Furthermore, like hippocampal connectivity, the relationship between GC laterality and duration of disease changes after 10 years duration of disease. After this duration, the GC laterality was positive in the three of three patients with right mTLE (left influencing right), whereas the GC laterality was negative in five of six patients with left mTLE (right influencing left).

Significance: This study reveals a relationship between fMRI functional connectivity and causal influence of the left and right hippocampi and duration of disease in mTLE. During the interictal state, the interhemispheric hippocampal connectivity initially is disrupted and then linearly increases as the epilepsy progresses longer than 10 years. This increase in connectivity appears to be due to the hippocampus contralateral to the epileptogenic focus exerting more influence over the ipsilateral hippocampus. These findings may have implications in understanding the functional development of epileptic networks and possibly prediction of surgical outcome of mTLE.

Figure 1

(A) Sagittal and coronal structural MRI images showing the placement of the nine axial imaging slices for the fMRI acquisitions with TR=500 ms. (B) Location of the left hippocampus (red) and right hippocampus (green) structural ROIs determined using the Harvard-Oxford atlas. (C) Location of the left hippocampus (red) and right hippocampus (green) functional ROIs determined using 2dTCA and functional connectivity in a separate set of patients.

Figure 2

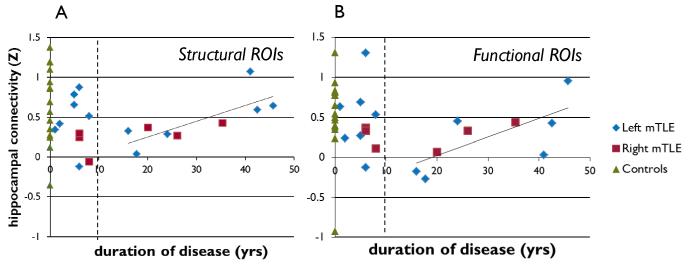

Relationship between hippocampal connectivity and duration of disease across left and right mTLE patients. (A) Results using structurally defined ROIs. (B) Results using functional ROIs. Both analyses show linear increase in hippocampal connectivity with increasing duration of disease after 10 years depicted by the linear trend line.

Figure 3

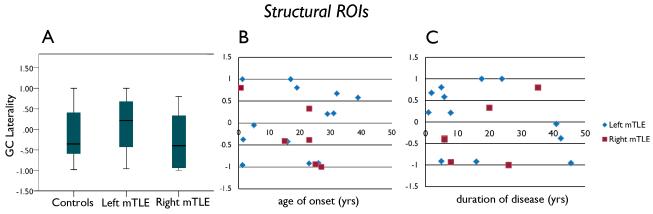

GC laterality results determined using the structural ROIs. (A) GC laterality in controls, left TLE and right TLE patients. (B) GC laterality vs. age of onset. (C) GC laterality vs. duration of disease. There were no differences between controls, left and right mTLE patients, and no relationships between GC Laterality and age of onset or duration of disease. Positive GC laterality indicates left hippocampus influences right. Negative GC laterality indicates right hippocampus influences left.

Figure 4

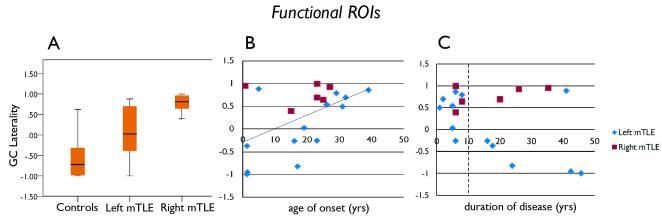

GC laterality results determined using the functional ROIs. (A) GC laterality in controls, left mTLE and right mTLE patients. (B) GC laterality vs. age of onset. (C) GC laterality vs. duration of disease. GC laterality is greater in right mTLE than in left mTLE (p = 0.004), and is greater in left mTLE than in controls (p = 0.026), and GC laterality increases as age of onset increases (indicated by linear trend line). Positive GC laterality indicates left hippocampus influences right. Negative GC laterality indicates right hippocampus influences left.
