. 2011 Aug 3;101(3):554-64.
doi: 10.1016/j.bpj.2011.06.041.

Quantifying the uncertainty of spontaneous Ca2+ oscillations in astrocytes: particulars of Alzheimer's disease

Affiliations

Quantifying the uncertainty of spontaneous Ca2+ oscillations in astrocytes: particulars of Alzheimer's disease

J Riera et al. Biophys J. .

Abstract

The quantification of spontaneous calcium (Ca(2+)) oscillations (SCOs) in astrocytes presents a challenge because of the large irregularities in the amplitudes, durations, and initiation times of the underlying events. In this article, we use a stochastic context to account for such SCO variability, which is based on previous models for cellular Ca(2+) signaling. First, we found that passive Ca(2+) influx from the extracellular space determine the basal concentration of this ion in the cytosol. Second, we demonstrated the feasibility of estimating both the inositol 1,4,5-trisphosphate (IP(3)) production levels and the average number of IP(3) receptor channels in the somatic clusters from epifluorescent Ca(2+) imaging through the combination of a filtering strategy and a maximum-likelihood criterion. We estimated these two biophysical parameters using data from wild-type adult mice and age-matched transgenic mice overexpressing the 695-amino-acid isoform of human Alzheimer β-amyloid precursor protein. We found that, together with an increase in the passive Ca(2+) influx, a significant reduction in the sensitivity of G protein-coupled receptors might lie beneath the abnormalities in the astrocytic Ca(2+) signaling, as was observed in rodent models of Alzheimer's disease. This study provides new, to our knowledge, indices for a quantitative analysis of SCOs in normal and pathological astrocytes.

PubMed Disclaimer

Figures

Figure 1
Figure 1
Examples of the relative fluorescent changes ΔF/F0 obtained from astrocytes of both WT and Tg2576 (APP) mice. In both types of mice, we are able to distinguish three kinds of Ca2+ signaling states: inactive, a stable Ca2+ baseline; active, irregular Ca2+ events; and hyperactive, a highly fluctuating Ca2+ baseline.
Figure 2
Figure 2

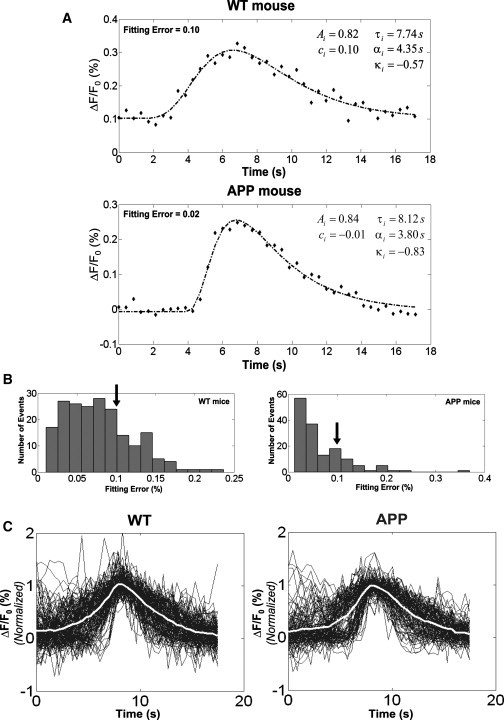

Procedure to characterize single Ca2+ events. (A) Examples of fitting a generalized-Gaussian function to a particular Ca2+ event in both WT (top) and Tg2576 (APP) (bottom) mice. The respective values for location τi, shape κi, scale αi, amplitude Ai, and baseline ci are also shown. (B) A least-square criterion was used to fit the generalized-Gaussian function to the actual ΔF/F0 waveforms. Ca2+ events with fitting errors >0.1 (solid arrows) were considered doubtful, and therefore, excluded from the analysis. (C) The normalized Ca2+ events (solid, single trials; open, mean). The total numbers of well-fitted events for WT and Tg2576 (APP) mice, which additionally were required to have amplitudes >15%, were n = 147 and n = 121, respectively.
Figure 3
Figure 3
Dependency of the basal Ca2+ concentration in the cytosol Cbasal (A) and the baseline for the total free Ca2+ ions per astrocyte volume co,b (B) with the physiological parameters XIP3 and jin. (Dashed lines) Corresponding mean levels of these parameters for the experimentally observed Cbasal in WT (0.081 μM) and APP(PS1) (0.149 μM) mice.
Figure 4
Figure 4

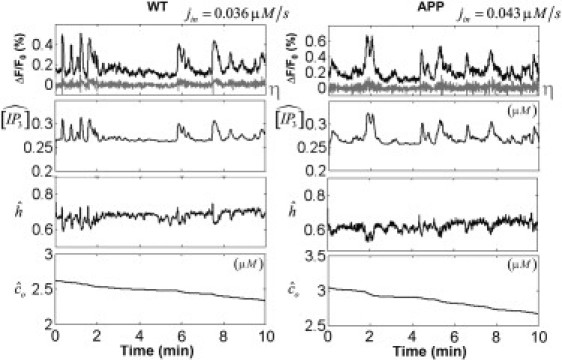

Statistical inference for a particular cell of a WT (left) and an APP (right) mouse. We used the most likely value of Cbasal for each mouse type, i.e., jin = 0.036 μM/s (WT mice) and jin = 0.043 μM/s (Tg2576 mice). (Upper panel) Relative fluorescent changes ΔF/F0 (solid) and the resulting innovations η (shaded) after model fitting for each cell. The estimated hidden state variables {[IP3]^,h^,c^o} are shown in three separated panels below.
Figure 5
Figure 5
Summary of parameter estimation and statistical tests for all cells in both WT (n = 67, solid bars) and Tg2576 (APP) (n = 84, shaded bars) mice. Though we provided an empirical estimation in this study, Cbasal is experimentally unknown for Tg2576 mice. Therefore, the statistical inference in the particular case of using data from our APP transgenic mice was performed for different values of Cbasal (i.e., mice with no β-amyloid accumulation, 81 nM; mice with a slight number of plaques, Tg2576, 92 nM; mice with a moderate number of plaques, 110 nM; and mice with a severe number of plaques, APP(PS1), 149 nM). The IP3 production levels XIP3 were significantly higher in WT mice. While raising the value of Cbasal, the estimators of variance σ^h2 and the average number of IP3R channels in a single cluster N^cluster reduced and increased, respectively. For the predicted Cbasal in Tg2576 mice, there were no significant differences with the corresponding estimators of these two parameters for WT mice. A bar represents the mean value of the estimated parameter and the 1.96 × SE.

References

    1. Cornell-Bell A.H., Finkbeiner S.M., Smith S.J. Glutamate induces calcium waves in cultured astrocytes: long-range glial signaling. Science. 1990;247:470–473. - PubMed
    1. Agulhon C., Petravicz J., McCarthy K.D. What is the role of astrocyte calcium in neurophysiology? Neuron. 2008;59:932–946. - PMC - PubMed
    1. Pellerin L., Magistretti P.J. Neuroenergetics: calling upon astrocytes to satisfy hungry neurons. Neuroscientist. 2004;10:53–62. - PubMed
    1. Fellin T., Pascual O., Haydon P.G. Astrocytes coordinate synaptic networks: balanced excitation and inhibition. Physiology (Bethesda) 2006;21:208–215. - PubMed
    1. Riera J.J., Sumiyoshi A. Brain oscillations: ideal scenery to understand the neurovascular coupling. Curr. Opin. Neurol. 2010;23:374–381. - PubMed
